9801-9 Briggs and Stratton Portable Generator 10,000 Watt EXL

Model: 9801-9

Save Part Not Listed?
product name

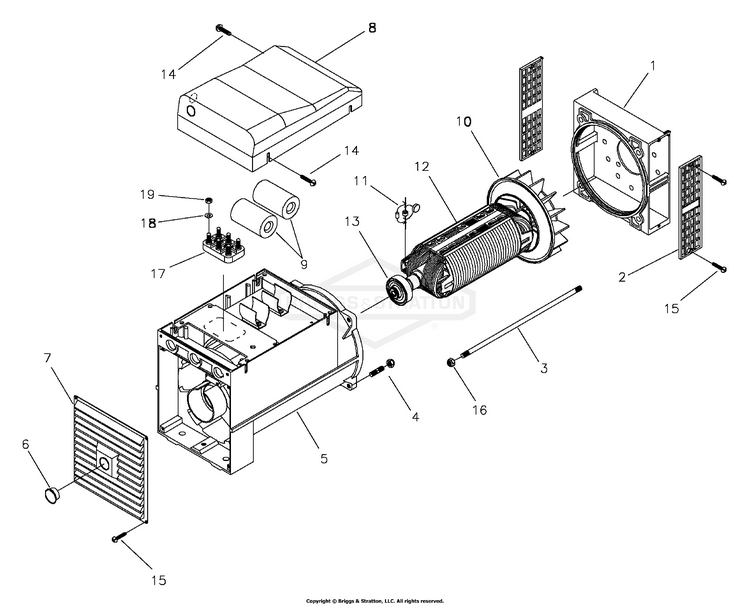

Alternator

...
...
1
SHIELD, Front BS-B4906GS
...
2
GRID, Front BS-B4907GS
...
3
BOLT, Shaft Stay BS-B4908GS
...
4
STAY BOLT, M8 x 30 BS-B4909GS
...
5
ASSY, Housing BS-B4910GS
...
6
PLUG, Domed BS-187049GS
...
7
GRID, End BS-B4912GS
...
8
COVER,Top Black BS-B4913GS
...
9
CAPACITOR BS-311560GS
...
10
FAN BS-198364GS
...
11
KIT-CAPACITOR DIODE & VAR BS-B4916GS
...
12
ASSY, Rotor BS-191297GS
...
13
BEARING BS-197705GS
...
16
LOCK NUT, M8 - 1.25 BS-49820GS
...
17
CONNECTOR, 6-Pin Sincro BS-188928GS

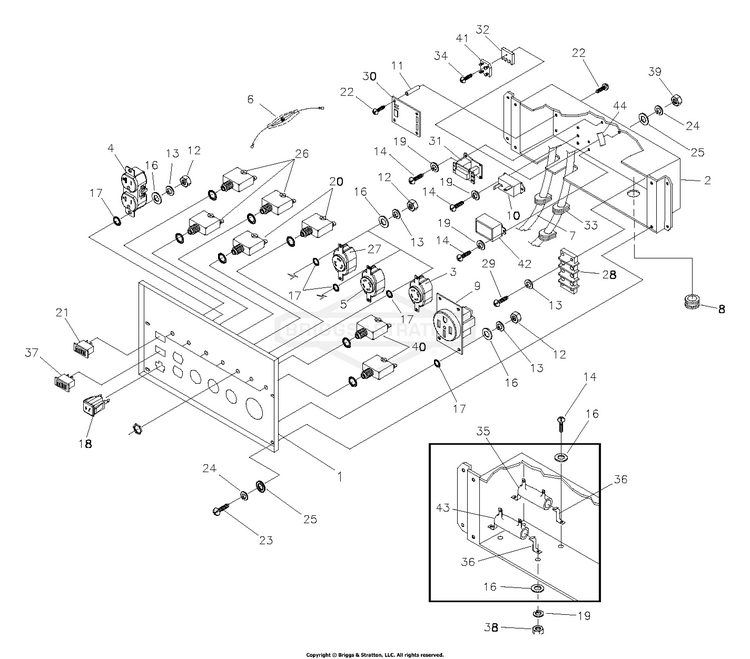

Control Panel

...
...
1
PANEL, Control BS-AB4432GS
...
2
BOX, Control BS-B95906GS
...
3
OUTLET, 120/240V, 30A Locking BS-43437GS
...
4
OUTLET, 120V, 20A Duplex BS-68759GS
...
5
OUTLET-120V TL30A BS-705932
...
6
ASSY, Diode BS-B5112GS
...
7
ASSY, Engine Harness BS-186102GS
...
8
GROMMET, Rubber BS-90576GS
...
9
OUTLET, 120/240V, 50A BS-B4262GS
...
10
BREAKER, Circuit BS-87962GS
...
11
STAND OFF, 1/2" Hex BS-93929GS
...
18
OUTLET, 12V DC Snap BS-90418GS
...
20
BREAKER-CIRCUIT 30A BS-706178
...
21
SWITCH, Run - Stop BS-78653GS
...
26
BREAKER-CIRCUIT 20A BS-209872GS
...
27
OUTLET, 120V/20A BS-74190GS
...
28
BLOCK, 50 Amp, 3 - Terminal BS-92953GS
...
30
BOARD,Idle Control BS-94117GS
...
31
TRANSFORMER, Idle Control BS-84028GS
...
32
RECTIFIER, Battery Charge BS-65795GS
...
33
GROMMET, Rubber BS-84135GS
...
35
RESISTOR BS-205846GS
...
36
STAND OFF BS-B4893GS
...
37
SWITCH, On - Off BS-82538GS
...
40
BREAKER, Circuit, 45A BS-B4445GS
...
41
RECTIFIER, Battery Charge BS-B4894GS
...
42
RELAY, 3A Thermal BS-77314GS
...
43
BRACKET, Resistor BS-B4893GS
...
44
TAPE, Glass Insulation x 1.5" BS-27565GS

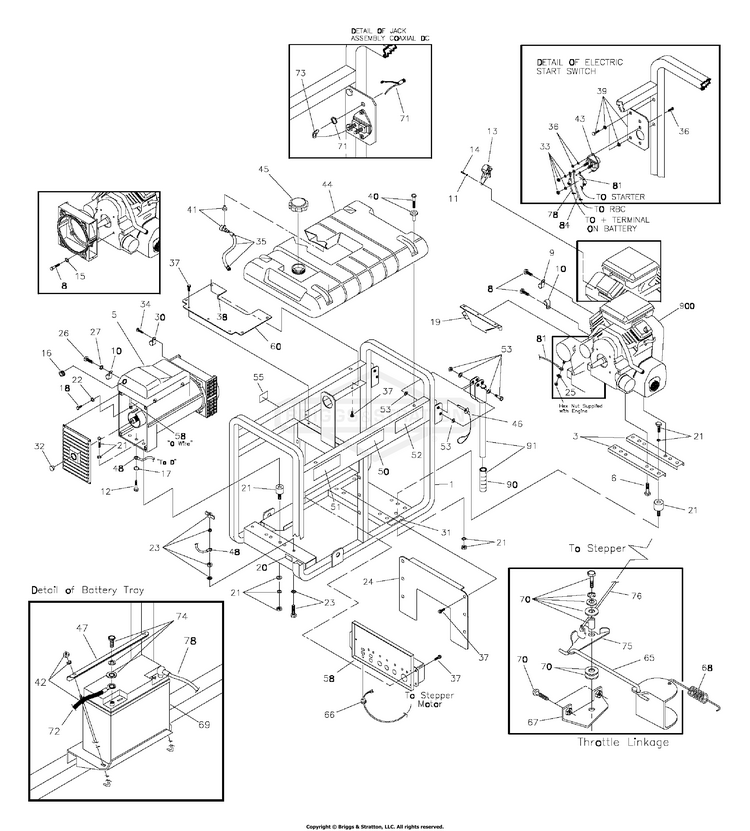

Main Unit

...
...
1
CRADLE BS-M189487BGS
...
3
SUPPORT, Engine BS-M77304GS
...
5
ASSY,Alternator (see "Alternator") BS-~NSP
...
6
SCREW-HEX WSHR HD TAP BS-2828635SM
...
8
CAPSCREW, 3/8 x 1-1/4" BS-22511GS
...
9
CLAMP, Hose BS-96832GS
...
10
CLAMP, Hose BS-55934GGS
...
13
ASSY, Stepper Motor BS-96867GS
...
16
GROMMET, Generator Cover BS-B4794GS
...
17
WASHER, 5/16" Shakeproof BS-27482GS
...
19
SHIELD, Heat BS-J93074GS
...
20
DECAL, Ground BS-B4986GS
...
21
KIT,Vibration Mount BS-194526GS
...
23
KIT, Grounding Hardware BS-194533GS
...
24
SHIELD, Heat BS-JB5567GS
...
30
CLAMP, Hose BS-55934TGS
...
31
DECAL, Caution Hot Muffler BS-196830GS
...
32
PLUG, Dome BS-187049GS
...
33
KIT, Hardware Contact Starter BS-194441GS
...
35
LINE, Fuel BS-791745
...
36
KIT, Starter Mounting Hardware BS-194440GS
...
37
SCREW, #12 Self Driller BS-B2153GS
...
38
U-CHANNEL, .09" Groove x 4" BS-A5850GS
...
39
KIT, Mounting Plate BS-194439GS
...
40
KIT, Hardware Tank, Fuel (includes Qty 4) BS-195076GS
...
41
KIT,Valve, Fuel Shut-Off BS-192980GS
...
42
KIT,J-Bolt with Hardware BS-193986GS
...
43
SWITCH, Starter BS-77282GS
...
44
TANK, Fuel 8 Gal BS-B1997GS
...
45
CAP, Fuel Tank BS-B4325GS
...
46
PIN, with Lanyard BS-B4135GS
...
47
BRACKET, Battery Tie Down BS-M96925GS
...
48
ASSY,Wire, Ground BS-19553621GS
...
50
DECAL, Instruction, Fuel Level BS-188333GS
...
51
DECAL, Danger BS-197445GS
...
52
DECAL, Start Instructions BS-93826GS
...
53
KIT, Hardware Fold Down Handle BS-194034GS
...
55
DECAL, Fuel Shut-Off BS-197798GS
...
58
ASSY, Control Panel (see "Control Panel") BS-186076GS
...
60
SHIELD, Heat BS-JB4509AGS
...
65
LINKAGE, Bell Crank to Throttle BS-95921GS
...
66
GROMMET, Rubber BS-62265GS
...
67
PLATE,Adjust BS-95349GS
...
68
SPRING BS-96717GS
...
69
BATTERY BS-193043GS
...
70
KIT,Throttle Linkage Hardware BS-194543GS
...
71
ASSY, Jack, DC BS-192531GS
...
72
CABLE, Battery Negative BS-19753621GS
...
73
LUG, 5/16 #22/18 I-S BS-58359GS
...
74
KIT, Battery Hardware BS-193347GS
...
75
BRACKET, Bell Crank BS-95348GS
...
76
LINKAGE, Stepper Motor to Bell Crank BS-95920GS
...
78
CABLE, Battery Positive BS-189302DGS
...
81
ASSY,Wire, #16 BS-189302AGS
...
84
WIRE, Harness BS-186102GS
...
90
GRIP BS-198669GS
...
91
ASSY, Handle (Includes Item 90) BS-B193200GS
...
--
MUFFLER Not Illustrated BS-692099
...
--
CLAMP, Muffer Not Illustrated BS-690898
...
--
BRACKET, Muffler Not Illustrated BS-691513
...
--
ARRESTOR, Spark Not Illustrated BS-794945
...
--
SCREW Not Illustrated BS-690661
...
--
BOLT Not Illustrated BS-692056
...
--
SCREW, SEMS M6 x 12 Not Illustrated BS-692359
...
--
MANUAL, Owners Not Illustrated BS-197386GS
...
--
MANUAL, Engine Not Illustrated BS-MS5375
...
--
OIL BOTTLE Not Illustrated BS-BB3061GS
...
--
CHARGER, Battery Not Illustrated BS-84002790
...
--
CAP, Funnel, Oil Bottle Not Illustrated BS-B3518GS
...
--
PLUG, 120/240V, 30A, 4 Prong Not Illustrated BS-43438GS
...
--
PLUG, 125V, 20 A Not Illustrated BS-93568GS
...
--
PLUG, 120V/30A, 3 Prong Not Illustrated BS-100523GS
...
--
FILTER, Oil Not Illustrated BS-492932S
...
--
COVER, Storage Not Illustrated BS-B4767GS
...
--
CABLE, Battery Charge Not Illustrated BS-65787GS
...
--
FILTER, A/C Cartridge Not Illustrated BS-394018S
...
--
FILTER, Pre Cleaner Not Illustrated BS-272490S
...
--
PLUG, SPARK Not Illustrated BS-84007216
...
--
DECAL, Family, CA EVP Not Illustrated BS-199384GS
...
--
KIT, Decals, Service Not Illustrated BS-197460GS
...
--
Cord Wrap Optional Accessories Not BS-84883GS
...
--
Front Draw Bar w/Spindles-RH Side Optional Accessories Not BS-100126

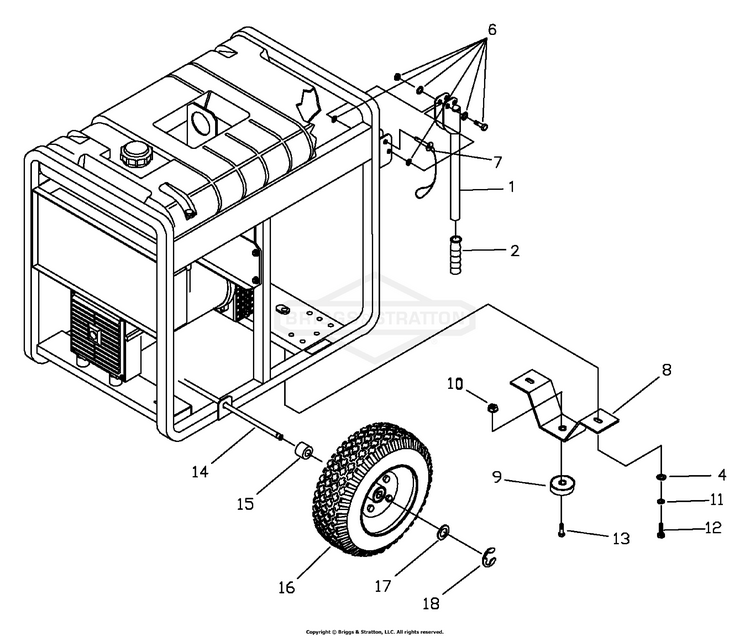

Wheel Kit

...
...
1
ASSY, Handle (Includes Item 2) BS-B193200GS
...
2
GRIP BS-198669GS
...
6
KIT, Hardware Handle Fold-Down BS-194034GS
...
7
PIN, with Lanyard BS-B4135GS
...
8
LEG, Mounting Support BS-B93394GS
...
9
VIBE MOUNT, with Washer BS-191413GS
...
10
NUT, 1/4-20, GR5 BS-703233
...
14
Axle BS-191267WGS
...
15
SPACER,Wheel BS-B89635GS
...
16
WHEEL BS-89742GS
...
18
E-RING BS-703977

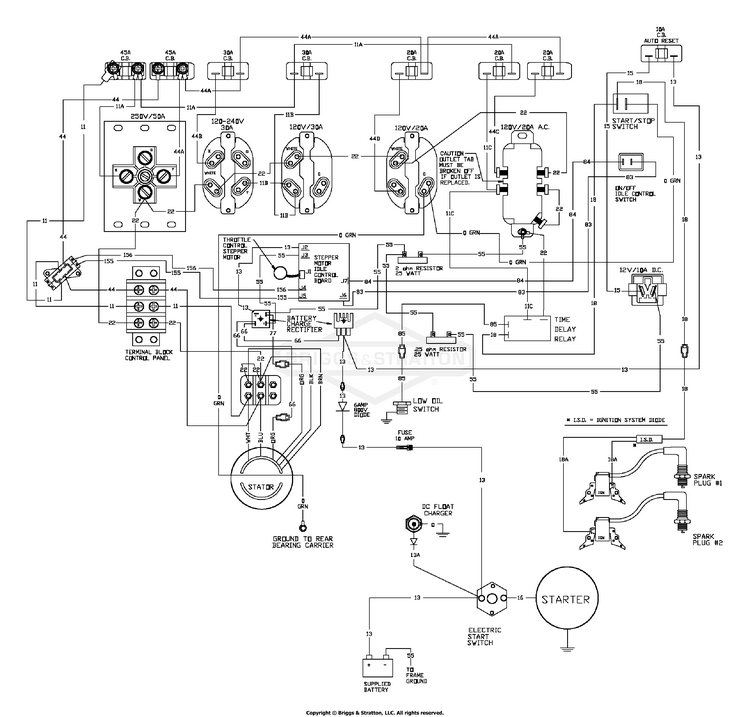

Wiring Diagram

...

No Parts Available for this Schematic

Wiring Schematic

...

No Parts Available for this Schematic
