9801-4 Briggs and Stratton Portable Generator 10,000 EXL

Model: 9801-4

Save Part Not Listed?
product name

Popular Parts

Popular Parts

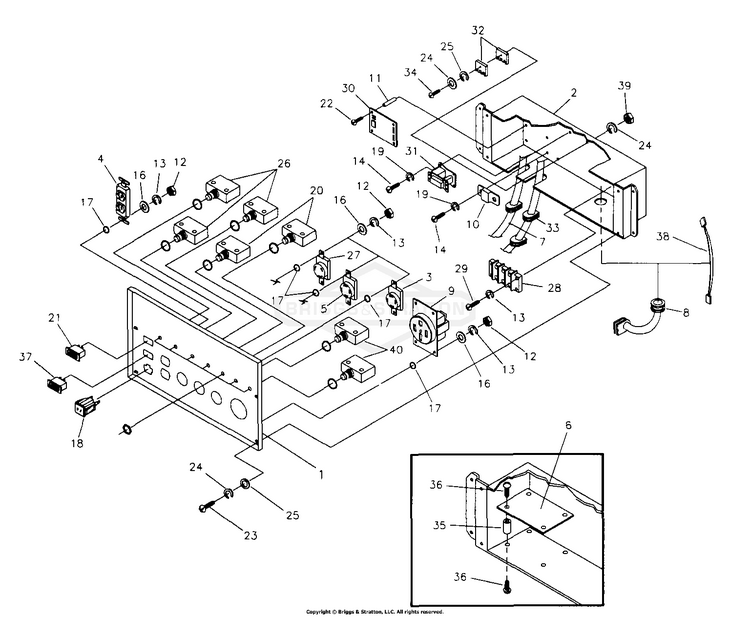

Control Panel

...
...
1
PANEL, Control BS-AB4432GS
...
2
BOX, Control BS-B95906
...
3
OUTLET, 120/240V, 30 Amp Locking Type BS-43437
...
4
OUTLET, 20A,120V BS-68759GS
...
5
OUTLET-120V TL30A BS-705932
...
6
BRD, CRCT, SYS CNTRL, 10000 BS-96476GS
...
7
ASSEMBLY, Engine Harness BS-B4434
...
8
NUT BS-691612
...
9
OUTLET, 120/250 V, 50 A BS-B4262GS
...
10
CIRCUIT BREAKER, 10A (Automatic), 12V BS-87962GS
...
11
STAND OFF BS-93929GS
...
12
NUT, M4-0.7 Hex BS-51715GS
...
13
LOCK WASHER, #8 M4 BS-22264
...
14
SCREW, M3-0.5 x 10mm BS-43181GS
...
16
WASHER BS-38150GS
...
17
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
18
OUTLET, 10A, 12VDC BS-90418GS
...
19
WASHER, M3 Lock BS-43182GS
...
20
BREAKER-CIRCUIT 30A BS-706178
...
21
SWITCH, Run - Stop BS-78653GS
...
22
SCREW BS-93986GS
...
23
SCREW, M5 - .08 x 12mm BS-91526
...
24
WASHER, M5 Lock BS-49226GS
...
25
WASHER, Rivet, 3/16 BS-1910531SM
...
26
BREAKER-CIRCUIT 20A BS-209872GS
...
27
OUTLET, 120V/20A BS-74190
...
28
BLOCK, 50 A, 3 - Terminal BS-92953GS
...
29
SCREW BS-80077GS
...
30
SCREW BS-791680
...
31
TRANSFORMER, Idle Control BS-84028GS
...
32
RECTIFIER, BATTERY CHARGE BS-65795GS
...
33
GROMMET, Rubber BS-84135GS
...
34
SCREW, M5 - 0.8 x 30mm BS-79224
...
35
STAND OFF, 3/4" Hex BS-64525
...
36
SCREW, #6-32 x 3/8" Tap BS-64526
...
37
SWITCH, Idle Control BS-82538GS
...
38
ASSEMBLY, Extension Cord BS-96471
...
39
NUT, M5 x 0.8 BS-51716GS
...
40
BREAKER, Circuit, 45 A BS-B4445GS

Generator

...
...
2
SPPRT, HTSHLD, PWDR CT, BLK BS-B93074GS
...
3
SUPPORT, Engine BS-A77304GS
...
4
HTSHLD, WELDER BS-B90916GS
...
5
Kit, Valve BS-192980GS
...
6
Kit, Valve BS-192980GS
...
7
CAP, Fuel Tank BS-B4325GS
...
8
MNT, VBRTN, 30 DURO BS-35097GS
...
9
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS
...
10
USE B1997 TANK ASSY BS-B1696
...
11
CRDL, VTWIN, RED BS-AB4137GS
...
12
GROMMET BS-83495
...
13
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
14
WHEEL ASSEMBLY BS-84010756
...
15
LOCKWASHER, SPLIT 3/8 BS-703454
...
16
DECAL, ProCut Z Text BS-5022241
...
17
SCREW-HEX WSHR HD TAP BS-2828635SM
...
18
WASHER, Lock BS-22129GS
...
19
CAPSCREW M8-1.25X16 BS-703988
...
20
ASSEMBLY, CONTROL PANEL BS-B4453
...
21
ASSY, Stepper Motor BS-96867GS
...
23
Wire, Ground BS-186790DGS
...
24
SCREW BS-313085GS
...
25
WASHER, #10 Ext. Shakeproof BS-23762GS
...
26
DECAL, ENGINE # 93571 BS-79661P
...
29
DECAL, CONTROL PANEL BS-96056
...
30
DECAL, SIDE PANEL BS-96055
...
31
DECAL, DATA, GNRC GEN BS-78817GS
...
32
DECAL, Hot Muffler BS-77816GS
...
33
PLATE, Adjust BS-95349GS
...
34
BRACKET, Bell Crank BS-95348GS
...
35
DECAL, 1-800 Number BS-20566GS
...
37
DECAL, START INSTRUCTIONS BS-93826GS
...
38
SCREW BS-75477GS
...
39
WASHER, Nylon BS-96716GS
...
40
LINKAGE, Bell Crank to Throttle BS-95921GS
...
41
LINKAGE, Stepper Motor to Bell Crank BS-95920GS
...
42
SCREW BS-33141GS
...
43
WASHER, M5 BS-51713GS
...
44
WASHER, M5 Lock BS-49226GS
...
45
GROMMET, Rubber BS-62265GS
...
46
TRAY, BTTRY, 300CCW BS-A84650GS
...
47
BRCKT, HLD DWN, BTTRY BS-B44951GS
...
48
HHCS, 1/4-20 X 7 BS-45000GS
...
49
CAP BS-5022097SM
...
50
NUT, 1/4 -20 HEX BS-22127
...
51
WSHR, SHKPRF, INT 3/8 BS-22261GS
...
52
SWITCH, STARTER BS-77282
...
--
BRACKET, STARTER SWITCH (NOT SHOWN) BS-78289GS
...
53
ASSY, SWITCH, STARTER BS-77283GS
...
54
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
55
ADAPTER, OIL FILTER BS-90914
...
56
FILTER, Oil BS-70185GS
...
57
SWITCH, LOW OIL PRESSURE BS-60108
...
58
SCREW BS-40945GS
...
59
GASKET, OIL FILTER ADAPTOR BS-68548
...
60
DECAL, FUEL SHUT OFF BS-73054
...
61
HTSHLD, OIL SENS BS-B93841GS
...
62
TAPTITE BS-46852
...
64
ASSY, Wire BS-18253621GS
...
65
WIRE ASSEMBLY BS-19653621
...
66
ASSY, Wire BS-19753621GS
...
67
SPACER BS-96378GS
...
68
SPRING BS-96717GS
...
--
MANUAL-OPERATOR (NOT SHOWN) BS-B4428GS
...
--
VIDEO, INSTRCTN, XL AND EXL (NOT SHOWN) BS-B4572GS
...
--
PLUG, 125V 30A 3-Prong (NOT SHOWN) BS-100523GS
...
--
PLUG, 250V, 30A (NOT SHOWN) BS-43438GS
...
--
BATTERY CHARGE CABLE (NOT SHOWN) BS-65787
...
--
125V 30A PLUG (NOT SHOWN) BS-93568
...
--
BOTTLE, Oil (NOT SHOWN) BS-BB3061GS
...
--
ENGINE OWNER'S MANUAL (NOT SHOWN) BS-21127GS
...
--
COVER, Storage (AVAILABLE ACCESSORY) BS-B4767GS
...
--
ASSY,Wrap, Cord (AVAILABLE ACCESSORY) BS-84883GS

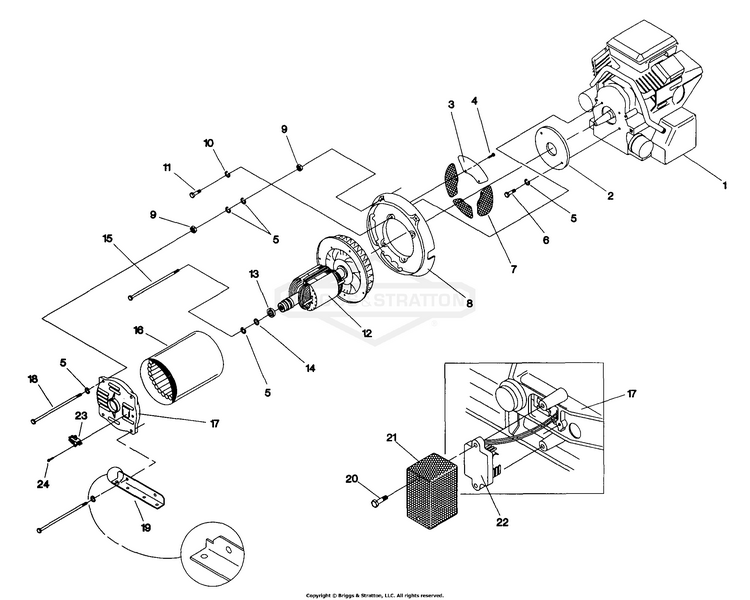

Rotor And Stator

...
...
2
ADPTR, GUARD, CNTR, BLK BS-B55277GS
...
3
PLATE, Cover BS-B71791
...
4
SCREW, No. 10-32 x 1/4" BS-46852
...
5
WASHER, Lock BS-22129GS
...
6
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
7
SCREEN, GUARD, RODENT BS-B55275GS
...
8
CASTING, Adapter BS-B2700
...
9
NUT, 5/16-24" Hex BS-24114
...
10
LOCKWASHER, SPLIT 3/8 BS-703454
...
11
WHEEL ASSEMBLY BS-84010756
...
12
ASSY, RTR, W/FAN BS-92381GS
...
13
BEARING BS-65791GS
...
14
Washer, .34 x 1 x 10 BS-50190GS
...
15
HHCS, 5/16-24 X 10.75 BS-53365GS
...
16
ASSEMBLY, Stator 10-KW BS-B94983
...
17
CARRIER-BEARING BS-49410AGS
...
18
CAPSCREW, 5/16"-24 x 12.25 Hex Head BS-77324
...
19
SPPRT, ALT BS-B77303GS
...
20
SCREW BS-66849AGS
...
21
SCREEN, Finger Guard BS-96423
...
22
REGULATOR, POWER, MOD BS-92769GS
...
23
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
24
HHCS, M5-0.8 X 16 BS-49815GS

Wheel Kit

...
...
1
HANDLE, Wheel Kit BS-93393B
...
2
SCREW BS-39287GS
...
3
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
4
SCREW BS-691666
...
5
VIBE MOUNT, with Washer BS-191413GS
...
7
SCREW BS-42909GS
...
8
CAPSCREW M8-1.25X16 BS-703988
...
9
Axle BS-191267WGS
...
10
SPACER, Wheel BS-89635
...
11
WHEEL, Assy 12" Dia. BS-89742
...
12
WASHER, 5/8" SAE BS-5025281SM
...
13
PIN, Quick Release BS-87005GS

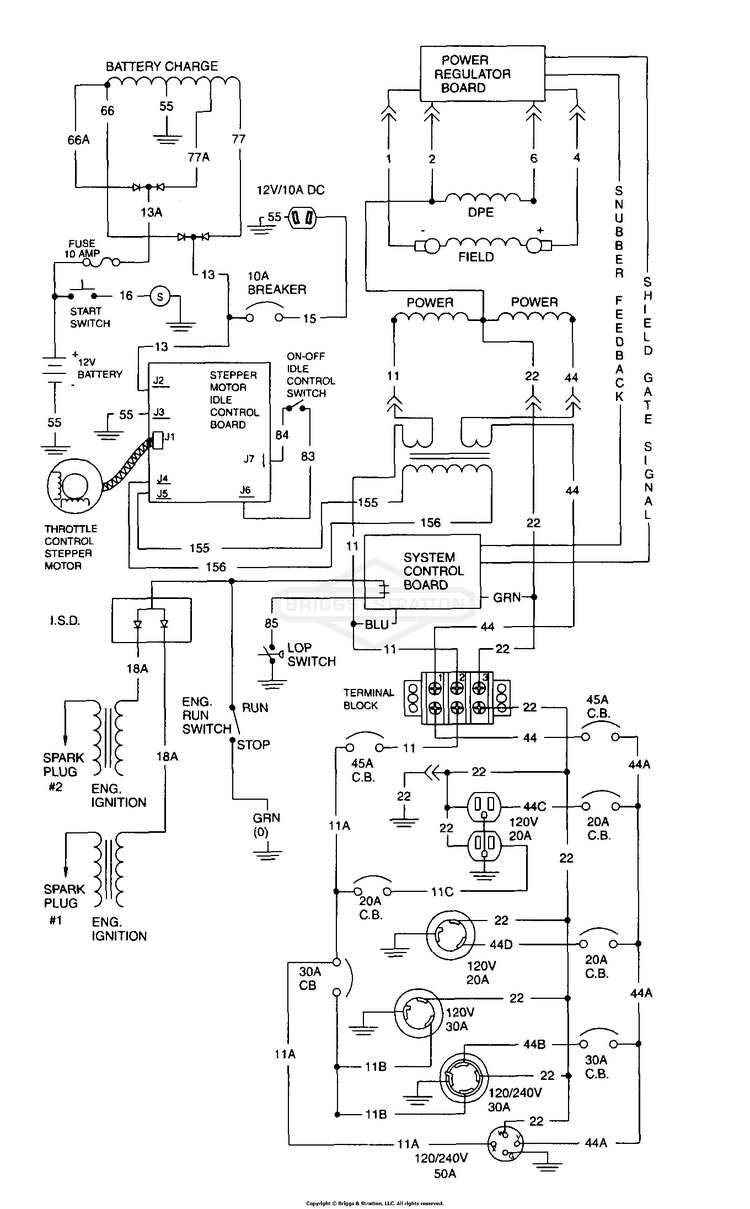

Wiring Diagram

...

No Parts Available for this Schematic

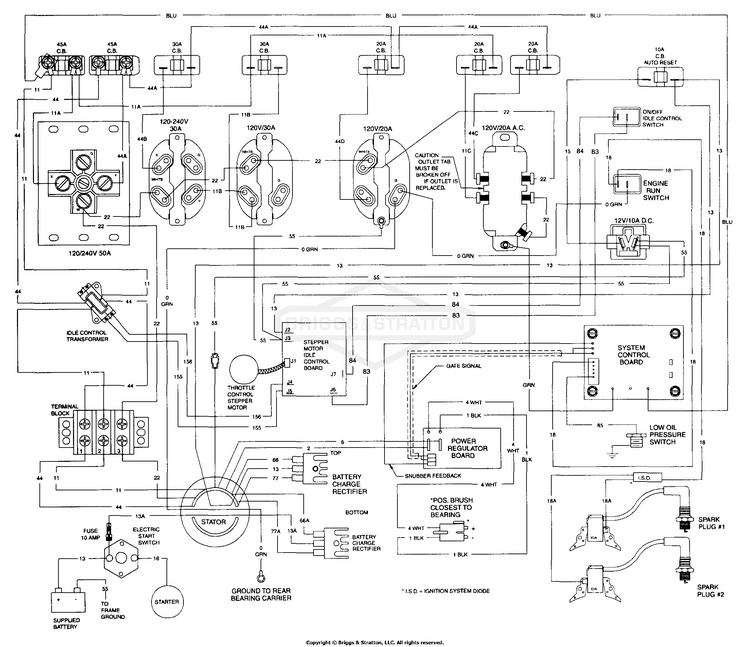

Wiring Schematic

...
