9795-0 Briggs and Stratton Portable Generator 5,500 XEP

Model: 9795-0

Save Part Not Listed?
product name

Popular Parts

Popular Parts

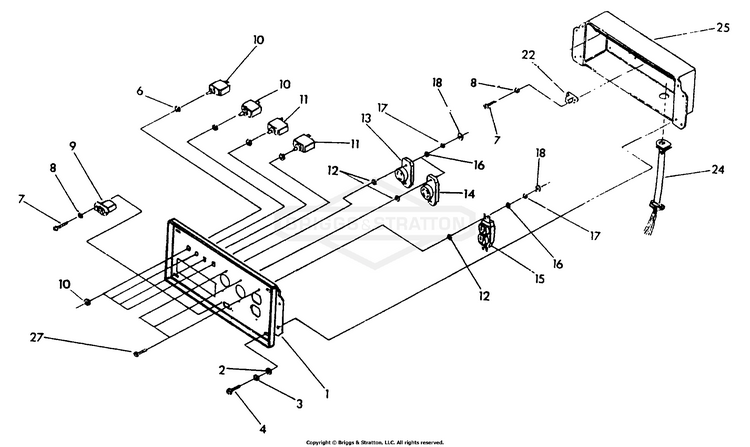

Control Panel

...
...
1
Control Panel BS-95884
...
2
WASHER, Rivet, 3/16 BS-1910531SM
...
3
WASHER, M5 Lock BS-49226GS
...
4
M5-0.8 x 12mm Screw BS-91526
...
6
WASHER, 7/16" Int Lock BS-82881GS
...
7
SCREW, M3-0.5 x 10mm BS-43181GS
...
8
WASHER, M3 Lock BS-43182GS
...
9
OUTLET, 12Volt DC (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.) BS-66822GS
...
10
BREAKER-CIRCUIT 30A BS-706178
...
11
BREAKER-CIRCUIT 20A BS-209872GS
...
12
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
13
OUTLET-120V TL30A BS-705932
...
14
120/240 volts 20 Amp Twistlock Outlet BS-43437
...
15
OUTLET, 20A,120V BS-68759GS
...
16
Thumb Control Lever BS-5043180B
...
17
#8 (M4) Lock Washer BS-22264
...
18
NUT, M4-0.7 Hex BS-51715GS
...
22
12 volts 10 amp (automatic) BS-87692
...
24
GROMMET, Rubber Connector BS-84134GS
...
25
Control Panel Box BS-95883
...
27
M4-0.7 x 10mm Screw BS-75475

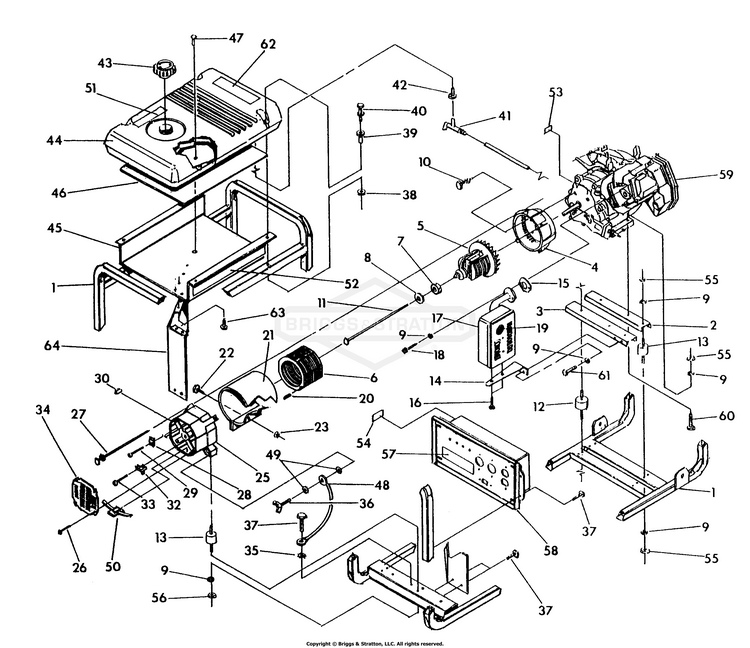

Cradle and Generator

...
...
1
Cradle BS-92432
...
2
Engine Support BS-92531
...
3
SUPPORT, Eng/Muffler BS-N92731GS
...
4
HOUSING, ENGINE ADAPTER BS-92247GS
...
5
ASSY, RTR, 5500, XEP BS-95891GGS
...
6
ASSY, STATOR, 5500DPE140, 10A-BC BS-95892GGS
...
7
BEARING BS-65791GS
...
8
M8 Flat Washer BS-67451
...
9
WASHER, Lock BS-22129GS
...
10
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
11
NUT BS-5025254FS
...
12
MOUNTS,Vibration BS-92609GS
...
13
MOUNT, VIBRATION BS-82857GS
...
14
BRACKET, Muffler BS-92532GS
...
15
GASKET, Exhaust BS-90239GS
...
16
SCREW, M6-1 x 12 w/Lock Washer BS-66476GS
...
17
MUFFLER BS-A7433GS
...
18
M8-1.25 x 20mm Socket Head Capscrew BS-40976
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
PIN, ROLL 4MM x 10 BS-81917GS
...
21
WRAP, ALT, 131 X 623LG BS-81887GGS
...
22
SCREW, M5 x 0.8 x 12 BS-52618GS
...
23
NUT, LOCKING-M5 BS-52856GS
...
25
CARRIER, Rear Bearing BS-SRV66825DGS
...
26
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
27
BOLT, M6-1 x 145mm Stator BS-86308AGS
...
28
RECTIFIER, BATTERY CHARGE BS-65795GS
...
29
SCREW BS-66849AGS
...
30
GROMMET, RUBBER BS-67022GS
...
32
Brush Holder and Bridge Rectifier Assembly BS-91825
...
33
HHCS, M5-0.8 X 16 BS-49815GS
...
34
Bearing Carrier Cover BS-67025
...
35
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
36
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
37
SCREW BS-313085GS
...
38
NUT, FLANGE LOCK - M6 BS-77395GS
...
39
GROMMET, TANK BS-83465GS
...
40
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS
...
41
Kit, Valve BS-192980GS
...
42
Kit, Valve BS-192980GS
...
43
CAP, Fuel Tank BS-846987
...
44
Fuel Tank BS-92035
...
45
Heat Shield BS-92039
...
46
INSULATION, # 2-1/4" THICK BS-92665GS
...
47
CLIP, INSULATION BS-85000GS
...
48
WIRE, Ground BS-195373GS
...
50
Cable Tie Mount BS-57893
...
51
DECAL, Danger BS-194799GS
...
52
Decal-Heat Shield BS-95881
...
53
DECAL, DATA, GNRC GEN BS-78817GS
...
54
DECAL, STA-BIL BS-81886GS
...
55
NUT, 5/16-18 HEX BS-25244GS
...
57
Decal-Control Panel BS-95885
...
58
Control Box Assembly BS-95882
...
59
13 H.P. Engine BS-95898
...
60
BOLT, 5/16-18 X 1-3/4 BS-5025011X14SM
...
61
MODULE BS-84009650
...
62
DECAL, START INSTRUCTIONS BS-93826GS
...
63
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
64
Heat Shield BS-96068

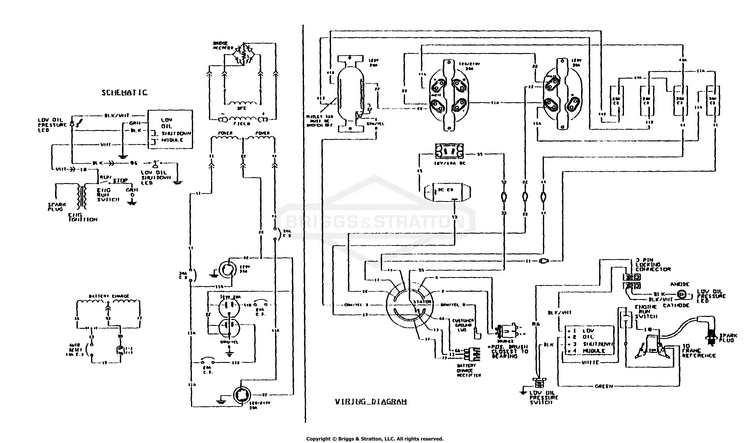

Electrical Data

...

No Parts Available for this Schematic

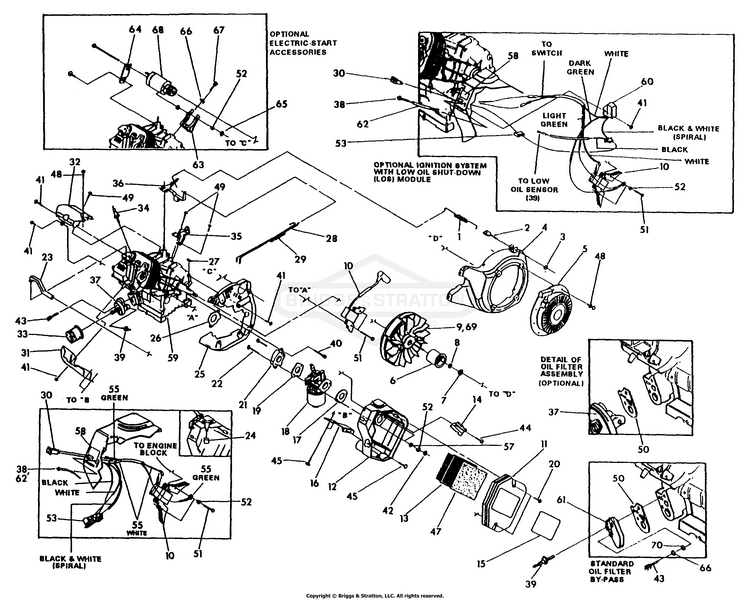

Engine Trim Parts

...
...
1
SPACER, Park Brake BS-7073100SM
...
2
Governor Adjust Bolt-M5 BS-83502
...
3
Metal Lock Nut-M5-0.8 BS-83503
...
4
Blower Housing Assembly BS-92437
...
5
Recoil Assembly BS-95092
...
6
Recoil Cup BS-81641
...
7
Flywheel Hex Nut BS-67890
...
8
Bevel Washer BS-67198N
...
9
Flywheel Assembly BS-77147A
...
10
lgnition Coil Assembly BS-84542
...
11
Air Cleaner Cover BS-73104A
...
12
Air Cleaner Base BS-73108A
...
13
ELEMENT,Air Cleaner BS-73111GS
...
14
Spit Back Plate BS-91204
...
16
Air Box Bracket BS-90827
...
17
NUT BS-690279
...
18
NUT, Hex Nyloc, 10mm-1.50 BS-7091187SM
...
19
Carburetor/manifold Gasket BS-89228
...
20
Air Cleaner Cover Bolt BS-78609
...
21
HHCS 7/16F X2-1/4 BS-7091028YP
...
22
Carburetor Mounting Bolt BS-81647
...
23
BRKT ATTACHMENT BS-7072745YP
...
24
Choke Knob BS-83504
...
25
Blower Housing Backplate BS-73116A
...
26
WLN, #10C BS-7091039YP
...
27
Woodruff Key 4 x 19 BS-82774
...
28
Governor Control Rod BS-72735
...
29
Governor Anti-lash Spring BS-72789
...
30
SWITCH, Run - Stop BS-78653GS
...
31
Bottom Wrapper BS-88434
...
32
Top Wrapper BS-88433
...
33
FILTER, Oil (Optional) BS-70185GS
...
34
PLUG, SPARK BS-84007216
...
35
Bracket, Governor Adjust with Idle Control BS-73101
...
36
Governor Lever Assembly BS-72734
...
37
SCREW BS-690369
...
38
Low Oil Indicator Lamp BS-85272
...
39
Low Oil Pressure Switch BS-77667
...
40
SCREW BS-40945GS
...
41
Screw, M6-1.0 x 10mm BS-45756
...
42
NUT, M6 BS-49813GS
...
43
M8-1.25 x 30mm Capscrew BS-49821
...
44
Plastite Screw-#8 x 3/8" BS-59635
...
45
SCREW, M6-1 x 12 w/Lock Washer BS-66476GS
...
47
Air Filter Pre-cleaner BS-81646
...
48
M6-1.0 x 10mm Capscrew BS-81668
...
49
Screw, M8 1.25 x 15, Taptite BS-83512GS
...
50
Oil Filter Adaptor Gasket BS-86999
...
51
INSERT HX THRD 5/16 BS-7092079YP
...
52
CAP BS-5022097SM
...
53
3-pin Male Housing BS-84329
...
55
Ignition Wire Assembly BS-92981
...
57
WASHER BS-49811GS
...
58
LOS Engine Decal BS-93104
...
59
Long Block w/straight shaft BS-91001A
...
60
LOS Module BS-87221B
...
61
HANDLE UPPER BS-7072709YP
...
62
Sleeving BS-93611
...
63
Starter Mount Bracket BS-86260
...
64
BRCKT, SPPRT, STARTER BS-93922GS
...
65
1/4-20 Hex Nut BS-22127
...
66
WASHER, Lock BS-22129GS
...
67
M8-1.25 x 20 Capscrew BS-40976
...
68
"S" Engine Starter Motor BS-93487
...
69
Flywheel and Ring Gear Assm. BS-91222B
...
70
WASHER BS-38150GS
