9794-1 Briggs and Stratton Portable Generator 3,250 XE

Model: 9794-1

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

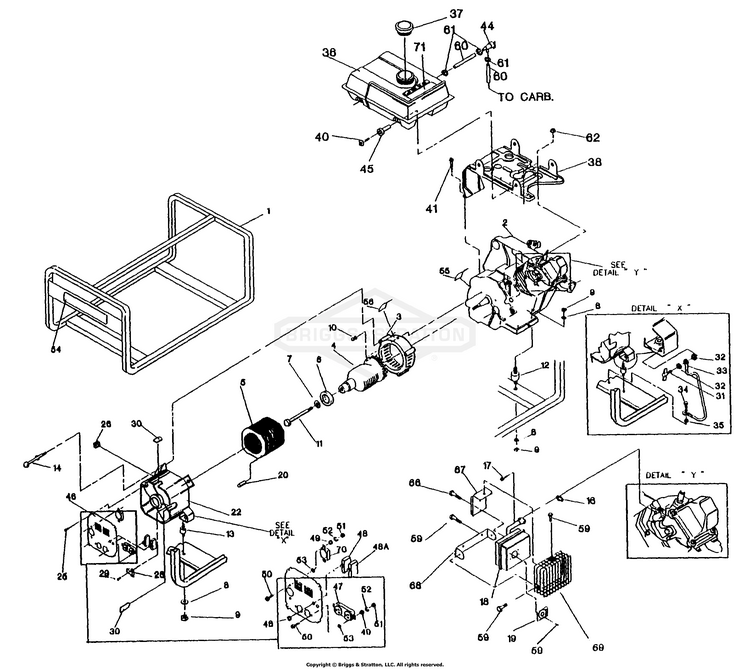

Generator

...
...
1
3250 XL Cradle BS-93643
...
2
6.5 HP XL Engine BS-94441
...
3
HOUSING, Engine Adapter BS-66365GS
...
4
ASSY, RTR, 3250DPE80 BS-94997GGS
...
5
ASSY, STATOR, 3250DPE80 BS-94996GGS
...
6
BEARING BS-65791GS
...
7
M8 Special Flat Washer BS-67451
...
8
WASHER, Lock BS-22129GS
...
9
SKID PLATE BS-5045771B
...
10
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
11
HHCS, 5/16-24 x 6-1/2 BS-53122GS
...
12
MOUNT,Vibration BS-85651GS
...
13
MOUNT-VIBRATION BS-194153GS
...
14
HHCS, M6 - 1.0 x 115 SEMS BS-86308GS
...
16
GASKET, Exhaust BS-89476GS
...
17
M8-125 x 20mm Capscrew BS-40976
...
18
KIT, MFFLR & BRCKT, SRV BS-195002GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
PIN, ROLL 4MM x 10 BS-81917GS
...
21
Rear Bearing Carrier BS-66825B
...
25
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
26
GROMMET, RUBBER BS-67022GS
...
28
Brush Holder Assembly BS-91825
...
29
HHCS, M5-0.8 X 16 BS-49815GS
...
30
GROMMET, Plastic RBC BS-84242GS
...
31
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
33
WIRE, Ground BS-195373GS
...
34
SCREW BS-313085GS
...
35
WASHER, #10 Ext. Shakeproof BS-23762GS
...
36
Fuel Tank BS-94994A
...
37
CAP, Fuel Tank BS-846987
...
38
Fuel Tank Bracket BS-95214
...
40
M6-1.0 x 21mm Bolt BS-96001
...
41
Screw, M8 1.25 x 15, Taptite BS-83512GS
...
44
VALVE, Fuel Shutoff BS-698180
...
45
BSHNG, TANK BS-96002GS
...
46
COVER, Control Panel BS-95600GS
...
47
OUTLET, 20A,120V BS-68759GS
...
48
BREAKER, Circuit BS-94396BGS
...
48A
Circuit Breaker, 15amp BS-94396AGS
...
49
WASHER BS-38150GS
...
50
M4-0.7 x 10mm Screw BS-75475
...
51
NUT, M4-0.7 Hex BS-51715GS
...
52
No. 8 Lock Washer BS-22264
...
53
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
54
DECAL, START INSTRUCTIONS BS-93826GS
...
55
DECAL, DATA, GNRC GEN BS-78817GS
...
56
DECAL, STA-BIL BS-81886GS
...
59
M5 x 10mm Screw BS-90299
...
60
1/4" I.D. Fuel Hose BS-30340
...
61
1/4" Hose Clamp BS-48031C
...
66
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
67
Muffler Support Bracket BS-92535
...
68
BRCKT, MFFLR, GN160 BS-90300GS
...
69
Muffler Guard BS-89712
...
70
OUTLET, 120/240V Locking, 20A BS-68867GS
...
71
DECAL, DANGER, SPANISH BS-96685GS
