9781-0 Briggs and Stratton Portable Generator 10,000 XL

Model: 9781-0

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

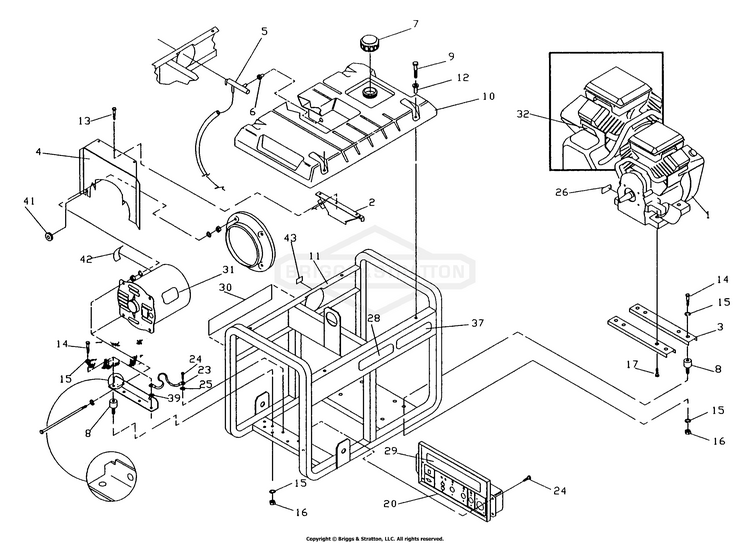

Generator Cradle Drawing No. 92580

...
...
1
THMS SLOTTED #6C X1 BS-7092134YP
...
2
Heat Shield BS-93074
...
3
Engine Support BS-77304
...
4
Stator Heat Shield BS-90916
...
5
PULLEY CATCHER HZT/ BS-7078298YP
...
6
Kit, Valve BS-192980GS
...
7
CAP, Fuel Tank BS-846987
...
8
MNT, VBRTN, 30 DURO BS-35097GS
...
9
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS
...
10
ASSY, TANK, FUEL, TEST, 5 GAL BS-93615GS
...
11
CRDL, VTWIN BS-92558GS
...
12
GROMMET, TANK BS-83465GS
...
13
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
14
WHEEL ASSEMBLY BS-84010756
...
15
LOCKWASHER, SPLIT 3/8 BS-703454
...
16
DECAL, ProCut Z Text BS-5022241
...
17
SCREW-HEX WSHR HD TAP BS-2828635SM
...
20
Control Panel Assembly BS-92556
...
23
Wire, Ground BS-186790DGS
...
24
SCREW BS-313085GS
...
25
WASHER, #10 Ext. Shakeproof BS-23762GS
...
26
DECAL, ENG, 92134 BS-79661NGS
...
28
DECAL, Danger BS-194799GS
...
29
DECAL, PNL, CNTRL, 10000 BS-92561GS
...
30
DECAL, HTSHLD, 10000XL BS-92614GS
...
31
DECAL, DATA, GNRC GEN BS-78817GS
...
32
DECAL, Hot Muffler BS-77816GS
...
37
DECAL, START INSTRUCTIONS BS-93826GS
...
39
WSHR, SHKPRF, INT 3/8 BS-22261GS
...
41
GROMMET, Rubber BS-62265GS
...
42
DECAL, STA-BIL BS-81886GS
...
43
Fuel Shut-Off Decal BS-73054
