9780-0 Briggs and Stratton Portable Generator 8,000 XL, 8,000 Watt

Model: 9780-0

Save Part Not Listed?
product name

Control Panel - No. 92358

...
...
1
PNL, CNTRL BS-92354GS
...
2
Control Box BS-92355
...
3
120/240V, 30 Amp Twistlock Outlet BS-43437
...
4
OUTLET, 20A,120V BS-68759GS
...
5
OUTLET-120V TL30A BS-705932
...
6
BOARD, System Control BS-83970GS
...
7
PIN, Shaft BS-691616
...
8
Rubber Grommet Connector BS-81434
...
9
OUTLET, 50A, 240V BS-74191GS
...
10
CIRCUIT BREAKER, 10A (Automatic), 12V BS-87962GS
...
11
GASKET-ENGINE BASE BS-67547
...
12
NUT, M4-0.7 Hex BS-51715GS
...
13
#8 Lockwasher BS-22264
...
14
SCREW, M3-0.5 x 10mm BS-43181GS
...
15
M4-0.7 x 10mm Screw BS-75475
...
16
WASHER BS-38150GS
...
17
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
18
OUTLET, 12Volt DC (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.) BS-66822GS
...
19
WASHER, M3 Lock BS-43182GS
...
20
BREAKER-CIRCUIT 30A BS-706178
...
21
SWITCH, Run - Stop BS-78653GS
...
22
#6-32 x 3/8" Screw BS-64526
...
23
M5-0.8 x 12mm Screw BS-52749
...
24
WASHER, M5 Lock BS-49226GS
...
25
WASHER, Rivet, 3/16 BS-1910531SM
...
26
BREAKER-CIRCUIT 20A BS-209872GS
...
27
120V/20A Twistlock Outlet BS-74190
...
28
BLOCK, 50 A, 3 - Terminal BS-92953GS
...
29
PPHMS, M4-0.7 x 16 BS-75476GS

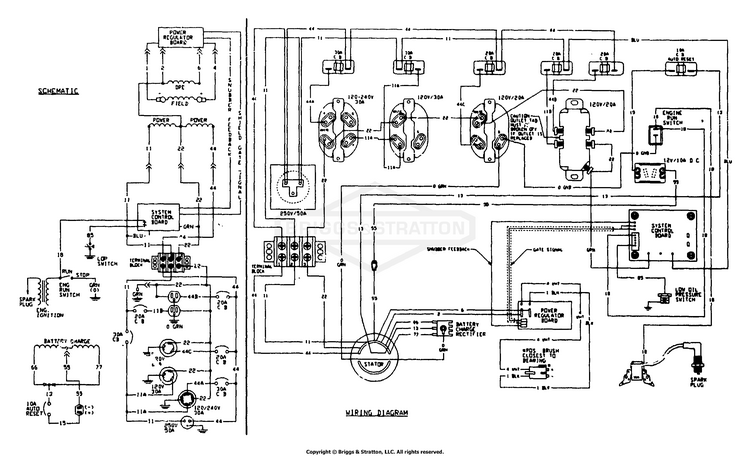

Electrical Schematic - No. 92511

...

No Parts Available for this Schematic

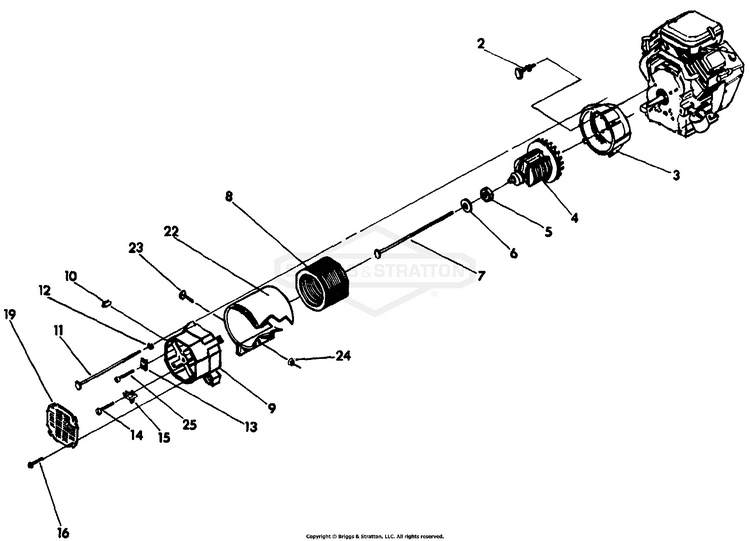

Generator & Stator Assembly - No. 92344

...
...
2
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
3
HOUSING, Engine Adapter BS-66365GGS
...
4
Rotor Assembly BS-92553
...
5
BEARING BS-65791GS
...
6
Flat Washer (special) BS-67451
...
7
HHCS, 5/16-24 X 11 BS-51810GS
...
8
Stator Assembly BS-92350
...
9
Rear Bearing Carrier BS-66825B
...
10
GROMMET, RUBBER BS-67022GS
...
11
BOLT BS-66449LGS
...
12
CAP BS-5022097SM
...
13
RECTIFIER, BATTERY CHARGE BS-65795GS
...
14
HHCS, M5-0.8 X 16 BS-49815GS
...
15
Brush Holder Assembly BS-80812
...
16
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
19
COVER, Bearing Carrier BS-B4871GS
...
22
Alternator Wrapper BS-81887D
...
23
SCREW, M5 x 0.8 x 12 BS-52618GS
...
24
NUT, LOCKING-M5 BS-52856GS
...
25
SCREW BS-66849AGS

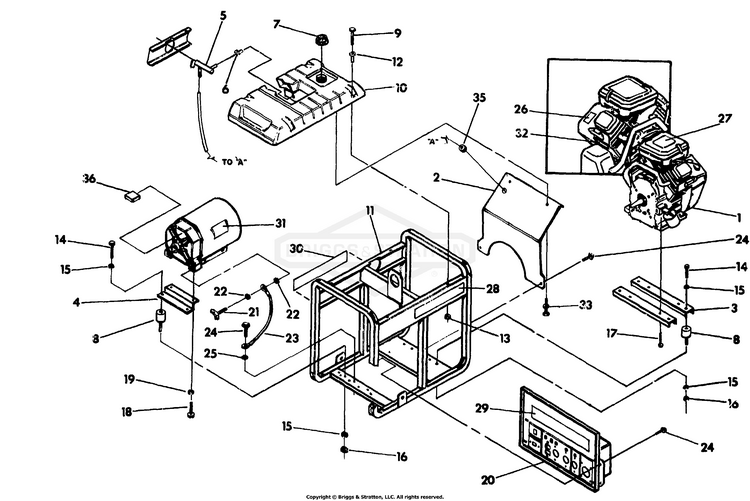

Generator Cradle - No. 92510

...
...
1
16 HP GN-480 Engine BS-85109
...
2
Heat Shield BS-92352
...
3
Engine Support BS-77304
...
4
SPPRT, ALT BS-78512GS
...
5
Kit, Valve BS-192980GS
...
6
Kit, Valve BS-192980GS
...
7
Fuel Tank Cap BS-84582
...
8
MNT, VBRTN, 30 DURO BS-35097GS
...
9
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS
...
10
Fuel Tank BS-90915
...
11
CRDL, VTWIN BS-92558GS
...
12
GROMMET, TANK BS-83465GS
...
13
NUT, FLANGE LOCK - M6 BS-77395GS
...
14
WHEEL ASSEMBLY BS-84010756
...
15
LOCKWASHER, SPLIT 3/8 BS-703454
...
16
DECAL, ProCut Z Text BS-5022241
...
17
SCREW-HEX WSHR HD TAP BS-2828635SM
...
18
CAPSCREW M8-1.25X16 BS-703988
...
19
WASHER, Lock BS-22129GS
...
20
Control Panel Assm. BS-92555
...
21
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
23
WIRE, Ground BS-195373GS
...
24
SCREW BS-313085GS
...
25
WASHER, #10 Ext. Shakeproof BS-23762GS
...
26
Engine Decal BS-79661G
...
27
DECAL, AIR BOX, 16H VTW BS-77581GS
...
28
DECAL, Danger BS-194799GS
...
29
DECAL, PNL, CNTRL BS-92512GS
...
30
Unit Decal BS-92613
...
31
Data Plate Decal BS-78837
...
32
DECAL, Hot Muffler BS-77816GS
...
33
M6-1.0 x 16mm Capscrew BS-70542
...
35
Grommet BS-38057GS
...
36
ASSEMBLY, POWER REGULATOR BS-84132GS
