9779-4 Briggs and Stratton Portable Generator 6,500 XL

Model: 9779-4

Save Part Not Listed?
product name

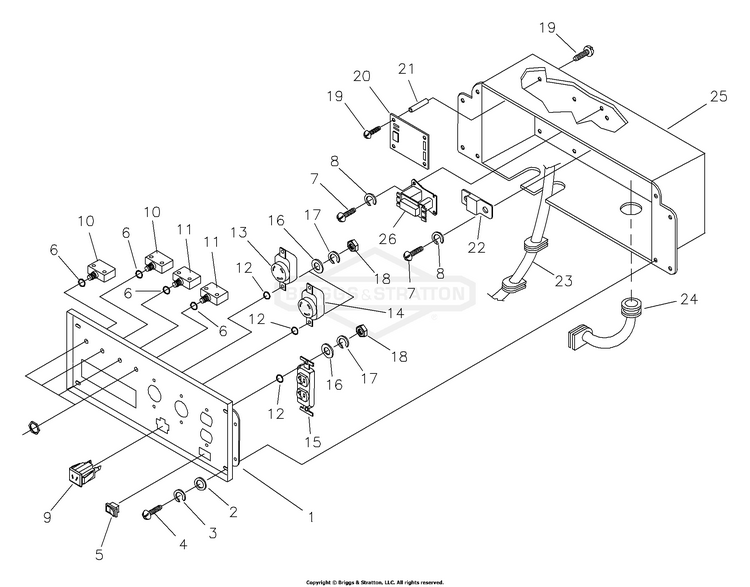

Control Panel

...
...
1
PANEL, Control BS-A92070GS
...
2
WASHER, Rivet, 3/16 BS-1910531SM
...
3
LOCK WASHER, M5 BS-49226GS
...
4
SCREW, M5-0.8 x 12mm BS-91526GS
...
5
SWITCH, Idle Control BS-82538GS
...
6
LOCK WASHER, 7/16" BS-82881GS
...
7
SCREW, M3 - 0.5 x 10mm BS-43181GS
...
8
LOCK WASHER, M3 BS-43182GS
...
9
OUTLET, 12V BS-90418GS
...
10
BREAKER-CIRCUIT 30A BS-706178
...
11
BREAKER-CIRCUIT 20A BS-209872GS
...
12
WASHER, #8 Shakeproof BS-23365GS
...
13
OUTLET-120V TL30A BS-705932
...
14
OUTLET, 120V/240V, 30A Locking BS-43437GS
...
15
OUTLET, 120V, 20A Duplex BS-68759GS
...
16
FLAT WASHER, M4 BS-43180GS
...
17
WASHER BS-847333
...
18
NUT, M4-0.7 Hex BS-51715GS
...
19
SCREW, #6-32 x 3/8" BS-64526GS
...
20
BOARD, System Control BS-83970GS
...
21
STAND-OFF, 3/4" Hex BS-64525GS
...
22
CIRCUIT BREAKER. 12V, 10A BS-87962GS
...
23
ASSEMBLY,Wire Harness BS-84335GS
...
24
GROMMET, Rubber Conn. BS-84134GS
...
25
BOX, Control Panel BS-B92069GS
...
26
TRANSFORMER, Idle Control BS-84028GS

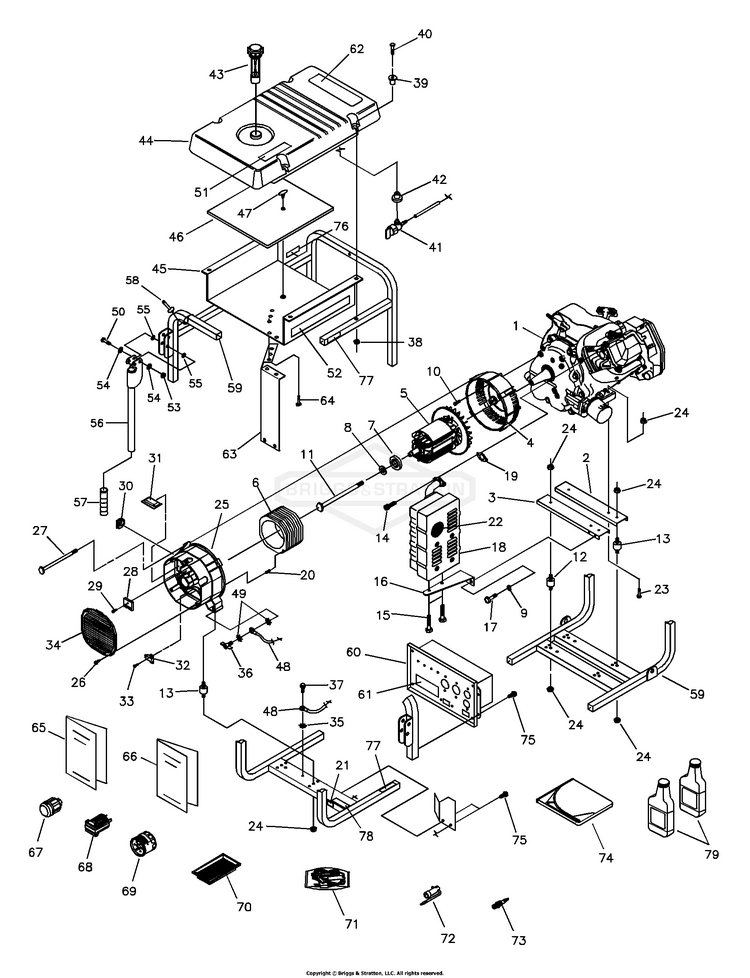

Main Unit

...
...
1
ENGINE BS-~NSP
...
2
SUPPORT, Support BS-A92531GS
...
3
SUPPORT, Engine & Muffler BS-M92731GS
...
4
HOUSING, Engine Adapter BS-92247GS
...
5
ASSEMBLY, Rotor (Inclds Item 7) BS-92679GGS
...
6
ASSEMBLY, Stator BS-92681AGS
...
7
BEARING BS-65791GS
...
8
WASHER, 22.2 O.D. x 3 Thk BS-96796GS
...
9
WASHER, M8 Lock BS-22129GS
...
10
HHMS, 5/16 - 24 x 3/4 SEMS BS-86307GS
...
11
HHCS, 5/16 - 24 x 9-7/8" BS-25254GS
...
12
MOUNT,Vibration BS-92609GS
...
13
MOUNT,Vibration BS-82857GS
...
14
SCREW, M8 - 1.25 x 20 BS-40976GS
...
15
CAPSCREW, M6 - 1.0 x 12mm BS-66476GS
...
16
BRACKET, Muffler BS-92532GS
...
17
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
18
MUFFLER BS-A7433GS
...
19
GASKET, Muffler BS-90239GS
...
20
PIN, 4 mm x 10 Roll BS-81917GS
...
21
DECAL, Ground BS-B4986GS
...
22
SCREEN, Spark Arrester BS-83083GS
...
23
BOLT, 5/16-18 X 1-3/4 BS-5025011X14SM
...
24
NUT, 5/16-18 Serrated Flange BS-189160GS
...
25
CARRIER, Rear Bearing BS-SRV66825DGS
...
26
TAPTITE, M5-0.8 x 10 BS-74908GS
...
27
BOLT, M6 -1 x 165 mm Stator BS-86308BGS
...
28
RECTIFIER, Battery Charge BS-65795GS
...
29
TAPTITE, M5-0.8 x 20 BS-66849AGS
...
30
GROMMET, Rubber BS-67022GS
...
31
ASSEMBLY, Power Regulator BS-84132GS
...
32
ASSEMBLY, Brush Holder BS-66386GS
...
33
HHCS, M5-0.8 X 16 BS-49815GS
...
34
COVER, Bearing Carrier BS-B4871GS
...
35
WASHER, #10 Int. Shakeproof BS-22769GS
...
36
SCREW, M6 -1.0 x 16 Wing BS-86494GS
...
37
SCREW BS-313085GS
...
38
NUT, M6 Flange Lock BS-77395GS
...
39
GROMMET,Tank BS-83465GS
...
40
HHCS, M6-1.0 x 60, SEMS BS-78831BGS
...
41
Kit, Valve BS-192980GS
...
42
Kit, Valve BS-192980GS
...
43
CAP, Fuel Gauge BS-B4363GS
...
44
ASSY,Tank, Fuel (Includes Items 41 & 42) BS-193500GS
...
45
SHIELD, Heat BS-J92039GS
...
46
INSULATION #2-1/4" Thick BS-92665GS
...
47
CLIP, Insulation BS-85000GS
...
48
WIRE, Ground BS-195373GS
...
49
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
50
HHCS, M8 - 1.25 x 45 BS-39287GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Heat Shield BS-189407GS
...
53
NUT, M8 Nylok BS-49820GS
...
54
WASHER BS-703350
...
55
WASHER, Nylon BS-187104GS
...
56
HANDLE BS-BB5586GS
...
57
GRIP BS-198669GS
...
58
PIN, with Lanyard BS-B4135GS
...
59
CRADLE, Red BS-M197022GS
...
60
ASSEMBLY, Control Panel BS-92630GS
...
61
DECAL, Control Panel BS-189406GS
...
62
DECAL, Start Instructions BS-93826GS
...
63
SHIELD, Heat BS-192983GS
...
64
CRIMPTITE, 10-24 x 1/2" BS-56893GS
...
65
MANUAL, Engine BS-A8927GS
...
66
MANUAL, Owners BS-189417GS
...
67
PLUG, 240V, 30A 4-Prong BS-43438GS
...
68
PLUG, 125V 30A 3-Prong BS-100523GS
...
69
OIL FILTER BS-70185GS
...
70
ELEMENT,Air Cleaner BS-73111GS
...
71
CABLE, Battery Charge BS-65787GS
...
72
WRENCH, Spark Plug BS-84882GS
...
73
PLUG, SPARK BS-84007216
...
74
COVER, Storage BS-B4767GS
...
75
SCREW, Self Driller, 12-14 x 7/8" BS-B2153GS
...
76
DECAL, Fuel Shut Off BS-73054GS
...
77
DECAL, Caution Hot Muffler BS-77816GS
...
78
DECAL, 1-800 BS-20566GS
...
79
BOTTLE, Oil BS-BB3061GS
...
Cord Wrap Optional Accessory Not Included BS-84883GS

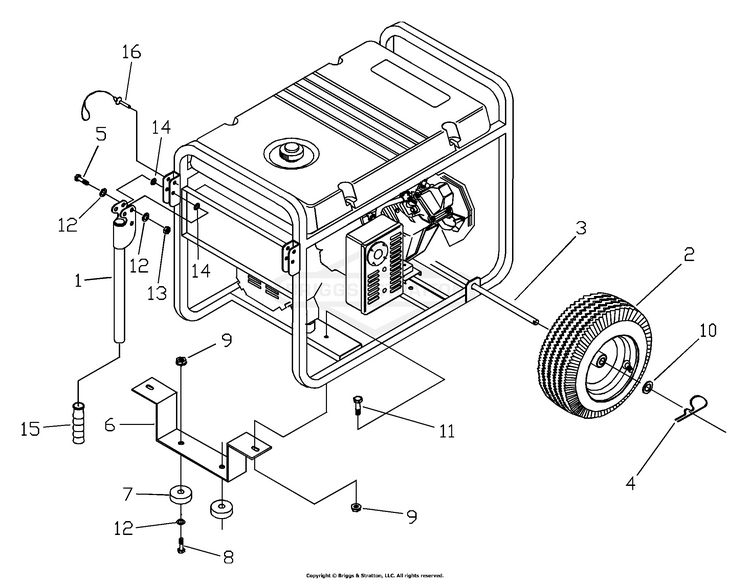

Wheel Kit

...
...
1
HANDLE BS-BB5586GS
...
2
WHEEL BS-209636GS
...
3
AXLE BS-191267GGS
...
4
PIN, 3/32 X 1.6 BS-703300
...
5
HHCS, M8 - 1.25 x 45 BS-39287GS
...
6
LEG, Support BS-B186927GS
...
7
VIBE MOUNT, with Washer BS-191413GS
...
8
CAPSCREW, Hex Hd. M8 - 1.25 x 30 BS-42909GS
...
9
NUT, Lock M8 BS-52858GS
...
10
WASHER, 5/8" SAE BS-5025281SM
...
11
CAPSCREW M8-1.25X16 BS-703988
...
12
WASHER BS-703350
...
13
NUT, M8 Nylok BS-49820GS
...
14
WASHER, Nylon BS-187104GS
...
15
GRIP BS-198669GS
...
16
PIN, with Lanyard BS-B4135GS

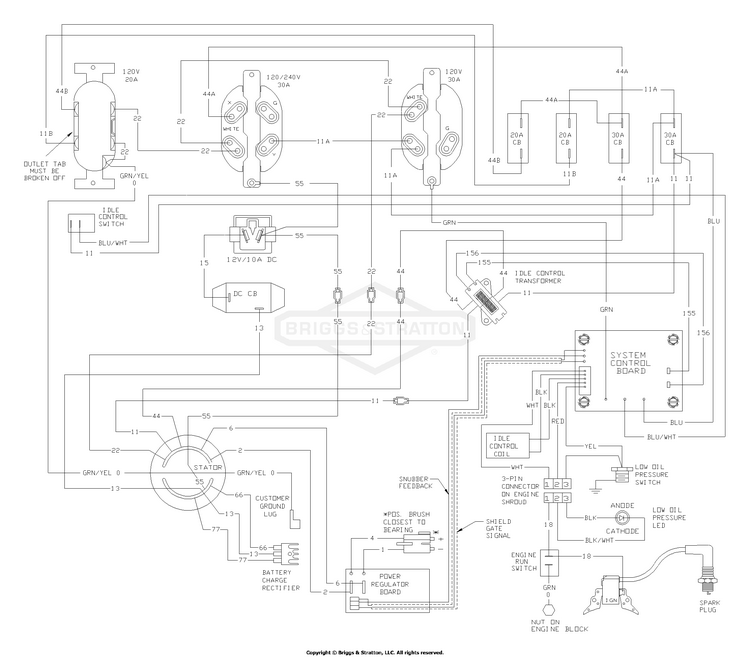

Wiring Diagram

...

No Parts Available for this Schematic

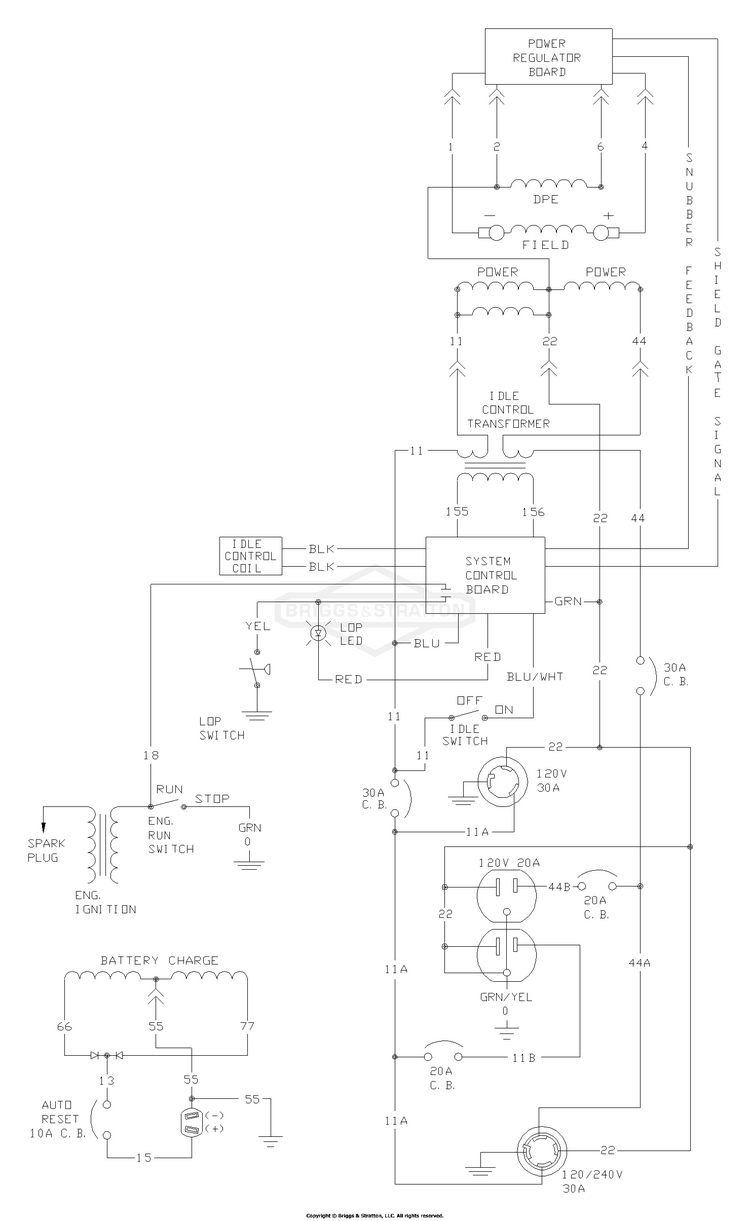

Wiring Schematic

...
