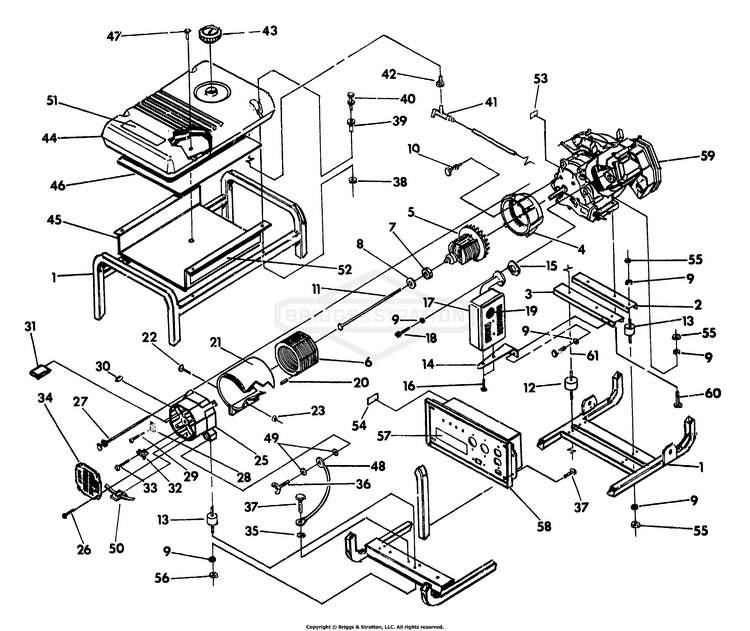

9779-0 Briggs and Stratton Portable Generator 6,500 XL, 6,500 Watt

Model: 9779-0

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Cradle - No. 92671

...
...
1
Cradle BS-92432
...
2
Engine Support BS-92531
...
3
SUPPORT, Eng/Muffler BS-N92731GS
...
4
HOUSING, ENGINE ADAPTER BS-92247GS
...
5
ASSY, Rotor BS-92679GGS
...
6
ASSEMBLY, Stator BS-92681AGS
...
7
BEARING BS-65791GS
...
8
Flat Washer-M8 BS-67451
...
9
WASHER, Lock BS-22129GS
...
10
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
11
SCREW BS-28092GS
...
12
MOUNTS,Vibration BS-92609GS
...
13
MOUNT, VIBRATION BS-82857GS
...
14
BRACKET, Muffler BS-92532GS
...
15
GASKET, Exhaust BS-90239GS
...
16
SCREW, M6-1 x 12 w/Lock Washer BS-66476GS
...
17
MUFFLER BS-A7433GS
...
18
M8-1.25 x 20 Capscrew BS-40976
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
PIN, ROLL 4MM x 10 BS-81917GS
...
21
WRAP, ALT, 131 X 623LG BS-81887GGS
...
22
SCREW, M5 x 0.8 x 12 BS-52618GS
...
23
NUT, LOCKING-M5 BS-52856GS
...
25
CARRIER, Rear Bearing BS-SRV66825DGS
...
26
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
27
BOLT BS-86308BGS
...
28
RECTIFIER, BATTERY CHARGE BS-65795GS
...
29
SCREW BS-66849AGS
...
30
GROMMET, RUBBER BS-67022GS
...
31
ASSEMBLY, POWER REGULATOR BS-84132GS
...
32
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
33
HHCS, M5-0.8 X 16 BS-49815GS
...
34
Bearing Carrier Cover BS-67025
...
35
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
36
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
37
SCREW BS-313085GS
...
38
NUT, FLANGE LOCK - M6 BS-77395GS
...
39
GROMMET, TANK BS-83465GS
...
40
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS
...
41
Kit, Valve BS-192980GS
...
42
Kit, Valve BS-192980GS
...
43
Fuel Cap BS-84582
...
44
Fuel Tank BS-92035
...
45
Heat Shield BS-92039
...
46
INSULATION, # 2-1/4" THICK BS-92665GS
...
47
CLIP, INSULATION BS-85000GS
...
48
WIRE, Ground BS-195373GS
...
50
MOUNT, CABLE TIE BS-57593GS
...
51
DECAL, Danger BS-194799GS
...
52
Decal - Heat Shield BS-92611
...
53
DECAL, DATA, GNRC GEN BS-78817GS
...
54
DECAL, STA-BIL BS-81886GS
...
55
NUT, 5/16-18 HEX BS-25244GS
...
57
DECAL, PNL, CNTRL, 5500XL BS-92639GS
...
58
ASSY, Control Panel BS-92630GS
...
59
PLUG, Oil Drain BS-691680
...
60
BOLT, 5/16-18 X 1-3/4 BS-5025011X14SM
...
61
MODULE BS-84009650
