9779-0 Briggs and Stratton Portable Generator 6,500 XL, 6,500 Watt

Model: 9779-0

Back To Assemblies

Save Part Not Listed?
product name

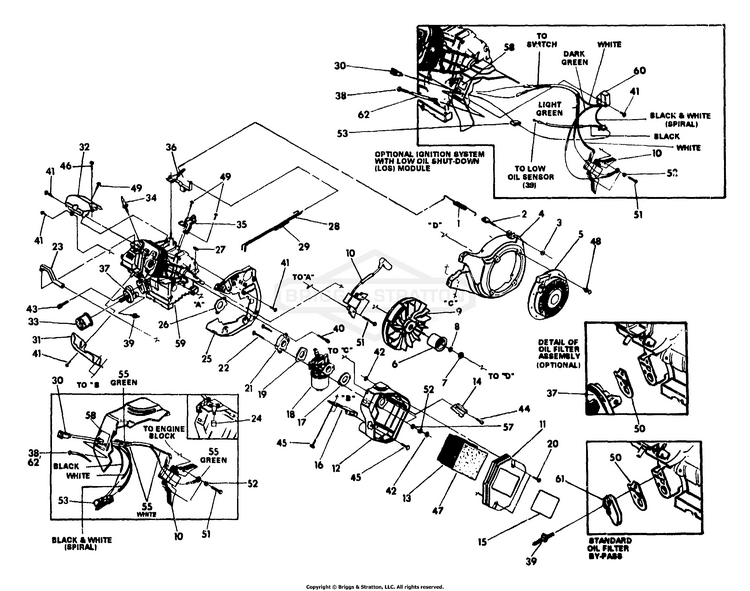

GN-360 Engine Trim Parts - No. 81645

...
...
1
SPACER, Park Brake BS-7073100SM
...
2
Governor Adjust Bolt - M5 BS-83502
...
3
Metal Lock Nut - M5-0.8 BS-83503
...
4
Blower Housing Assembly BS-92437
...
5
Recoil Assembly BS-81642
...
6
Recoil Cup BS-81641
...
7
Flywheel Hex Nut BS-67890
...
8
Bevel Washer BS-67198N
...
9
Flywheel Assembly BS-77147A
...
10
Ignition Coil Assembly BS-84542
...
11
Air Cleaner Cover BS-73104
...
12
Air Cleaner Base BS-73108
...
13
ELEMENT,Air Cleaner BS-73111GS
...
14
Spit Back Plate BS-91204
...
15
DECAL, AIR BOX BS-92896GS
...
16
Air Box Bracket BS-90827
...
17
NUT BS-690279
...
18
NUT, Hex Nyloc, 10mm-1.50 BS-7091187SM
...
19
Carburetor/manifold Gasket BS-89228
...
20
Air Cleaner Cover Bolt BS-78609
...
21
HHCS 7/16F X2-1/4 BS-7091028YP
...
22
Carburetor Mounting Bolt BS-81647
...
23
BRKT ATTACHMENT BS-7072745YP
...
24
Choke Knob BS-83504
...
25
Blower Housing Backplate BS-73116A
...
26
WLN, #10C BS-7091039YP
...
27
Woodruff Key 4 x 19 BS-82774
...
28
Governor Control Rod BS-72735
...
29
Governor Anti-lash Spring BS-72789
...
30
SWITCH, Run - Stop BS-78653GS
...
31
Bottom Wrapper BS-88434
...
32
Top Wrapper BS-88433
...
33
FILTER, Oil (optional) BS-70185GS
...
34
PLUG, SPARK BS-84007216
...
35
Bracket, Governor Adjust with Idle Control BS-73101
...
36
Governor Lever Assembly BS-72734
...
37
Oil Filter Adaptor BS-86931
...
38
Low Oil Indicator Lamp BS-85272
...
39
Low Oil Pressure Switch BS-77667
...
40
SCREW BS-40945GS
...
41
Screw, M6-1.0 x 10mm BS-45756
...
42
NUT, M6 BS-49813GS
...
43
M8-1.25 x 30mm Capscrew BS-49821
...
44
Plastite Screw - #8 x 3/8" BS-59635
...
45
SCREW, M6-1 x 12 w/Lock Washer BS-66476GS
...
46
M6-1.0 x 8mm Capscrew BS-67899
...
47
Air Filter Pre-cleaner BS-81646
...
48
M6-1.0 x 10mm Capscrew BS-81668
...
49
Screw, M8 1.25 x 15, Taptite BS-83512GS
...
50
Oil Filter Adaptor Gasket BS-86999
...
51
INSERT HX THRD 5/16 BS-7092079YP
...
52
CAP BS-5022097SM
...
53
3-pin Male Housing BS-84329
...
55
Ignition Wire Assembly BS-92981
...
57
WASHER BS-49811GS
...
58
LOS Engine Decal BS-93104
...
59
Long Block with taper shaft BS-90782
...
60
LOS Module BS-87221B
...
61
HANDLE UPPER BS-7072709YP
...
62
Sleeving BS-93611
