9778-7 Briggs and Stratton Portable Generator 5,500 XL

Model: 9778-7

Save Part Not Listed?
product name

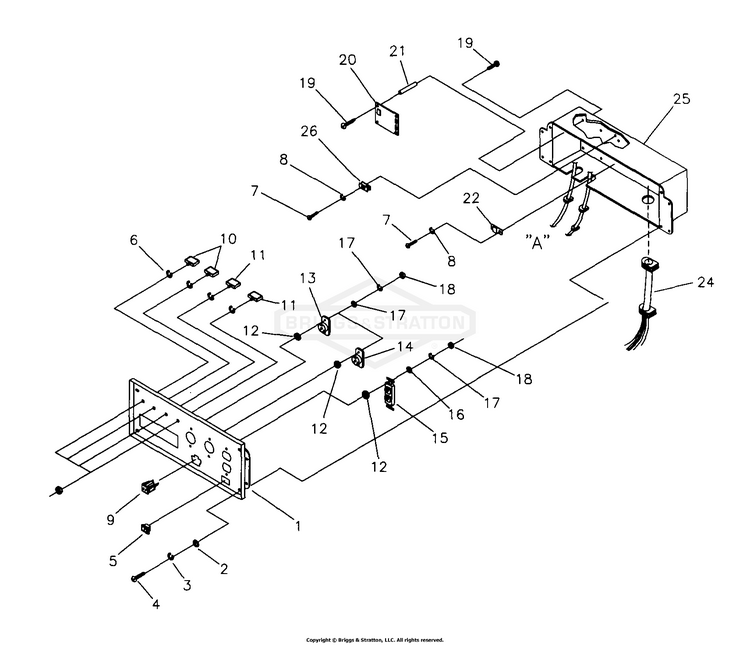

Control Panel

...
...
1
PNL, CNTRL, BLK BS-B92070GS
...
2
WASHER, Rivet, 3/16 BS-1910531SM
...
3
WASHER, M5 Lock BS-49226GS
...
4
SCREW, M5-0.8 x 12mm BS-91526
...
5
SWITCH, Idle Control BS-82538GS
...
6
WASHER, 7/16" Int Lock BS-82881GS
...
7
SCREW, M3-0.5 x 10mm BS-43181GS
...
8
WASHER, M3 Lock BS-43182GS
...
9
OUTLET, 10A, 12VDC BS-90418GS
...
10
BREAKER-CIRCUIT 30A BS-706178
...
11
BREAKER-CIRCUIT 20A BS-209872GS
...
12
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
13
OUTLET-120V TL30A BS-705932
...
14
OUTLET, 120V/240V, 30A Locking Type BS-43437
...
15
OUTLET, 20A,120V BS-68759GS
...
16
Thumb Control Lever BS-5043180B
...
17
LOCK WASHER, #8 M4 BS-22264
...
18
NUT, M4-0.7 Hex BS-51715GS
...
19
SCREW, #6-32 x 3/8" BS-64526
...
20
BOARD, System Control BS-83970GS
...
21
STAND-OFF, 3/4" Hex BS-64525
...
22
CIRCUIT BREAKER, 10A (Automatic), 12V BS-87962GS
...
23
ASSEMBLY, Wire Harness BS-84335GS
...
24
GROMMET, Rubber Connector BS-84134GS
...
25
PANEL, Control Box BS-92069
...
26
TRANSFORMER, Idle Control BS-84028GS

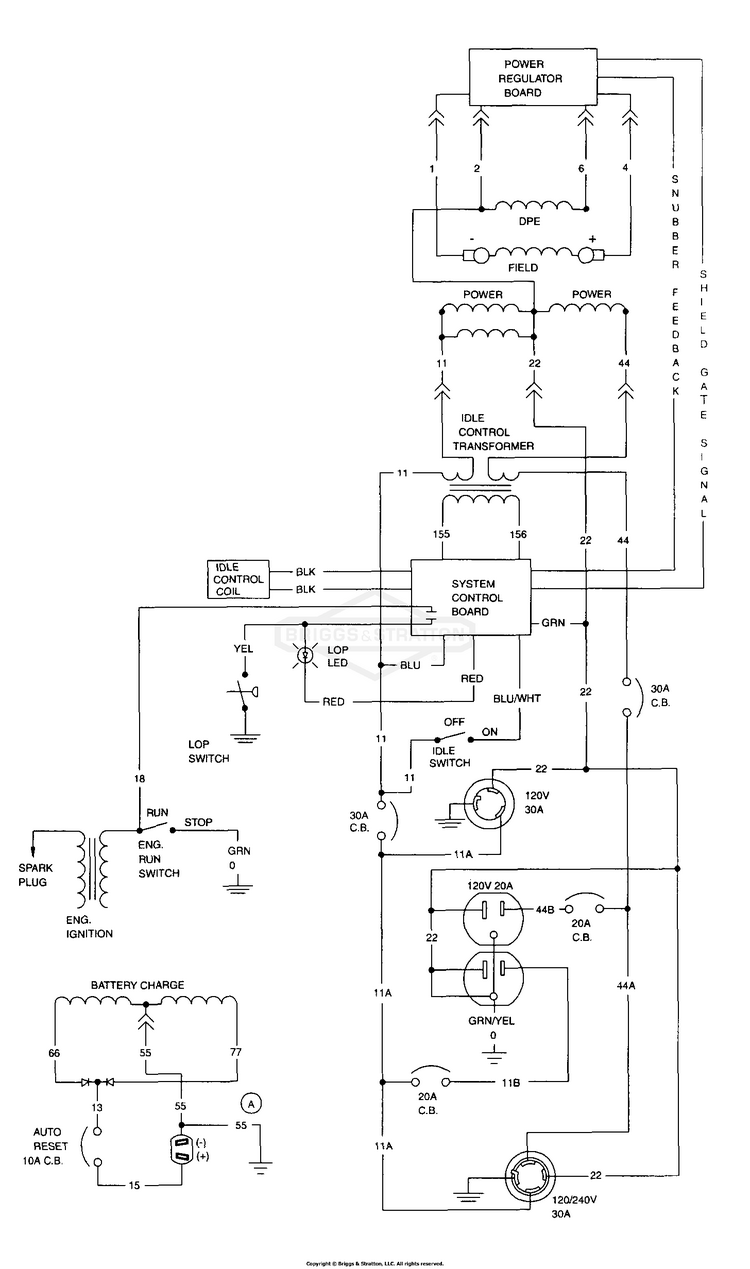

Electrical Schematic

...

No Parts Available for this Schematic

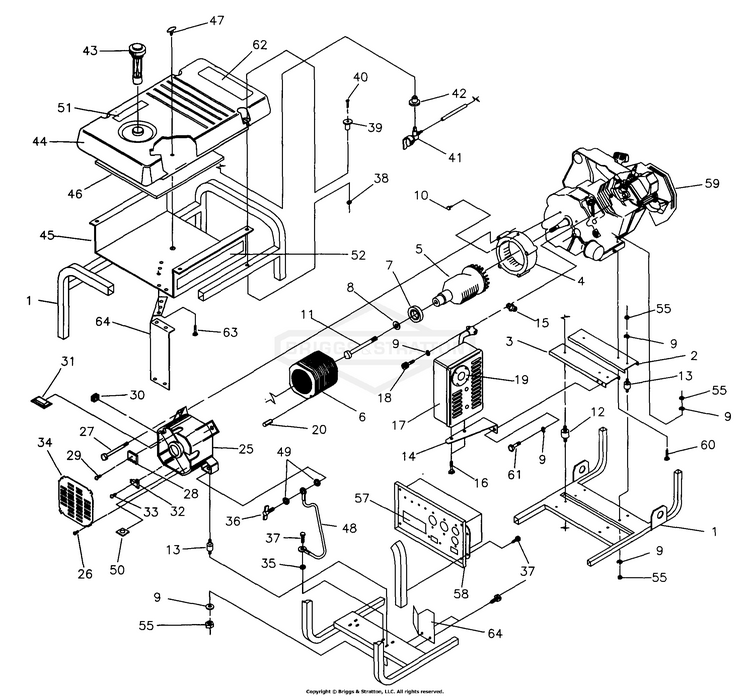

Main Unit

...
...
1
CRADLE BS-A92432GS
...
2
SUPPORT, Engine BS-A92531GS
...
3
SUPPORT, Engine & Muffler BS-M92731GS
...
4
HOUSING, ENGINE ADAPTER BS-92247GS
...
5
ASSY, Rotor BS-92678GGS
...
6
ASSEMBLY, Stator BS-B92680G
...
7
BEARING BS-65791GS
...
8
WASHER, M8 Flat BS-96796GS
...
9
WASHER, Lock BS-22129GS
...
10
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
11
SCREW BS-28092GS
...
12
MOUNTS,Vibration BS-92609GS
...
13
MOUNT, VIBRATION BS-82857GS
...
14
BRACKET, Muffler BS-92532GS
...
15
GASKET, Exhaust BS-90239GS
...
16
SCREW, M6-1 x 12 w/Lock Washer BS-66476GS
...
17
MUFFLER BS-A7433GS
...
18
SCREW, M8 - 1.25 x 20 Cap BS-40976
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
PIN, ROLL 4MM x 10 BS-81917GS
...
25
CARRIER, Rear Bearing BS-SRV66825DGS
...
26
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
27
BOLT, M6-1 x 145mm Stator BS-86308AGS
...
28
RECTIFIER, BATTERY CHARGE BS-65795GS
...
29
SCREW BS-66849AGS
...
30
GROMMET, RUBBER BS-67022GS
...
31
ASSEMBLY, POWER REGULATOR BS-84132GS
...
32
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
33
HHCS, M5-0.8 X 16 BS-49815GS
...
34
COVER, Bearing Carrier BS-B67025
...
35
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
36
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
37
SCREW BS-313085GS
...
38
NUT, FLANGE LOCK - M6 BS-77395GS
...
39
GROMMET, TANK BS-83465GS
...
40
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS
...
41
Kit, Valve BS-192980GS
...
42
Kit, Valve BS-192980GS
...
43
CAP, Fuel Gauge BS-B4363GS
...
44
ASSY,Tank, Fuel BS-193500GS
...
45
HEATSHIELD BS-208564GS
...
46
INSULATION, # 2-1/4" THICK BS-92665GS
...
47
CLIP, INSULATION BS-85000GS
...
48
WIRE, Ground BS-195373GS
...
50
MOUNT, CABLE TIE BS-57593GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Heat Shield BS-B4373
...
55
NUT, 5/16-18 HEX BS-25244GS
...
57
DECAL, Control Panel BS-B4374
...
58
ASSY, Control Panel BS-92630GS
...
60
BOLT, 5/16-18 X 1-3/4 BS-5025011X14SM
...
61
MODULE BS-84009650
...
62
DECAL, START INSTRUCTIONS BS-93826GS
...
63
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
64
SHIELD, Heat BS-192983GS
...
Battery Charge Cable (Not Illustrated) BS-65787
...
MANUAL-OPERATOR (Not Illustrated) BS-B4372GS
...
PLUG, 125V 30A 3-Prong (Not Illustrated) BS-100523GS
...
PLUG, 250V, 30A (Not Illustrated) BS-43438GS
...
PLUG, SPARK (Not Illustrated) BS-84007216
...
WRENCH, Sparkplug (Not Illustrated) BS-84882GS
...
ELEMENT,Air Cleaner (Not Illustrated) BS-73111GS
...
VIDEO, INSTRCTN, XL AND EXL (Not Illustrated) BS-B4572GS
...
ASSY,Wrap, Cord (Optional Accessory, Not Included) BS-84883GS

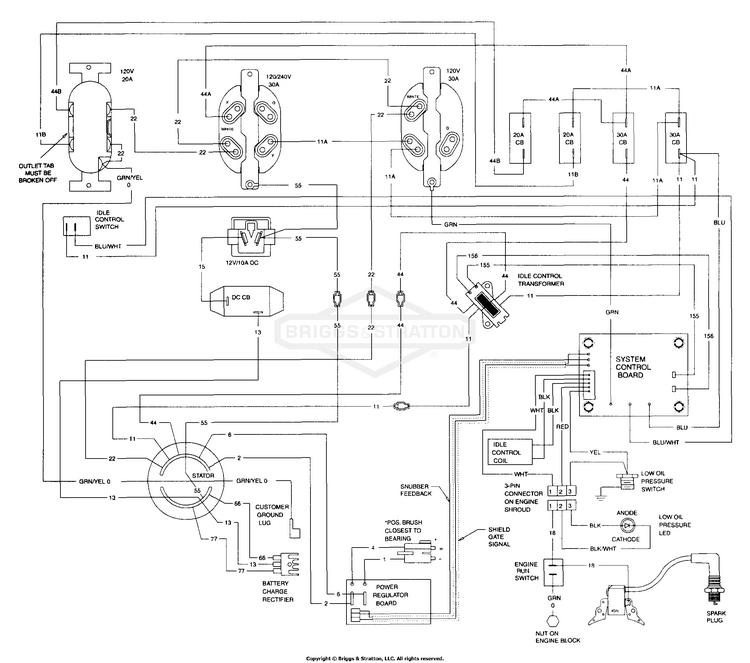

Wiring Diagram

...

No Parts Available for this Schematic

Schematic Image Zoomed
