9720-0 Briggs and Stratton Portable Generator SVT5000, 5,000 Watt

Model: 9720-0

Save Part Not Listed?
product name

Popular Parts

Popular Parts

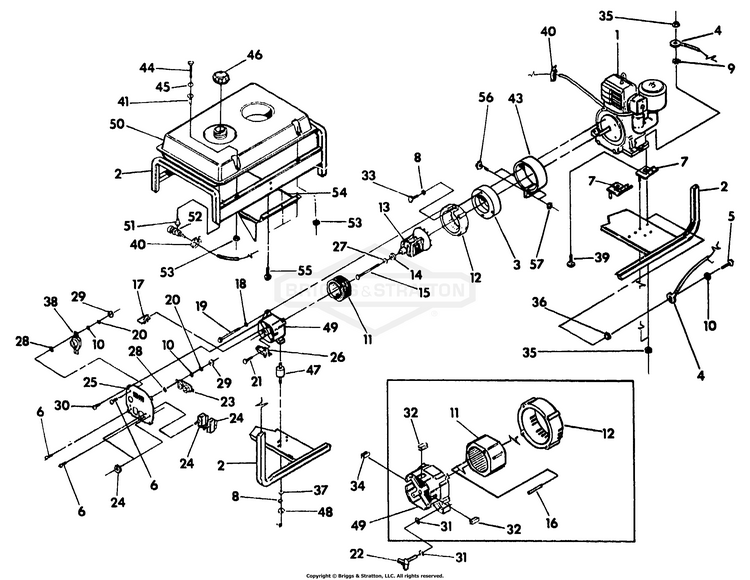

5000 Watt AC Generator - No. 91347

...
...
1
Briggs & Stratton Engine BS-79557
...
2
Cradle Assembly BS-84456
...
3
Engine Spacer BS-68342
...
4
Ground Wire BS-10953621
...
5
TRILOBLAR, 8-32 x 3/8 BS-24911GS
...
6
M4-0.7 x 10mm Screw BS-75475
...
7
MOUNT, Vibration 45°. BS-70642GS
...
8
WASHER, Lock BS-22129GS
...
9
WASHER, 5/16" Ext. Shakeproof BS-27482GS
...
10
WASHER BS-38150GS
...
11
ASSY, STATOR, 5000DPE105 BS-93585JGS
...
12
ADPTR, HSNG, 8 HP BS-66365DGS
...
13
Rotor Assembly BS-74716G
...
14
BEARING BS-65791GS
...
15
CAPSCREW, Hex Head BS-75431GS
...
16
PIN, ROLL 4MM x 10 BS-81917GS
...
17
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
18
CAP BS-5022097SM
...
19
M6-1.00 x 130mm Stator Bolt BS-66449E
...
20
No. 8 Lock Washer BS-22264
...
21
HHCS, M5-0.8 X 16 BS-49815GS
...
22
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
23
OUTLET, 20A,120V BS-68759GS
...
24
BRKR, CRCT, 20A, 2P BS-77247GS
...
25
Control Panel, sheet metal BS-83859
...
26
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
27
Flat Washer (special) BS-67451
...
28
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
29
NUT, M4-0.7 Hex BS-51715GS
...
30
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
32
GROMMET, Plastic RBC BS-84242GS
...
33
5/16"-24 x 2-1/2" Screw BS-23541
...
34
GROMMET, RUBBER BS-67022GS
...
35
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
36
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
38
OUTLET, 120/240V Locking, 20A BS-68867GS
...
39
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
40
1/4" Hose Clamp BS-48031C
...
41
GROMMET, TANK BS-83465GS
...
43
Finger Guard Wrap BS-83888
...
44
M6-1.0 x 35 Capscrew BS-79816
...
45
WSHR, SPCL, BLK BS-78830GS
...
46
Fuel Tank Cap BS-84582
...
47
MOUNT, VIBRATION BS-82857GS
...
48
NUT, 5/16-18 HEX BS-25244GS
...
49
CARRIER, Rear Bearing BS-SRV66825DGS
...
50
Fuel Tank BS-77374
...
51
Kit, Valve BS-192980GS
...
52
PULLEY CATCHER HZT/ BS-7078298YP
...
53
NUT, FLANGE LOCK - M6 BS-77395GS
...
54
Heat Shield BS-84459
...
55
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
56
SCREW, M5 x 0.8 x 12 BS-52618GS
...
57
NUT, LOCKING-M5 BS-52856GS

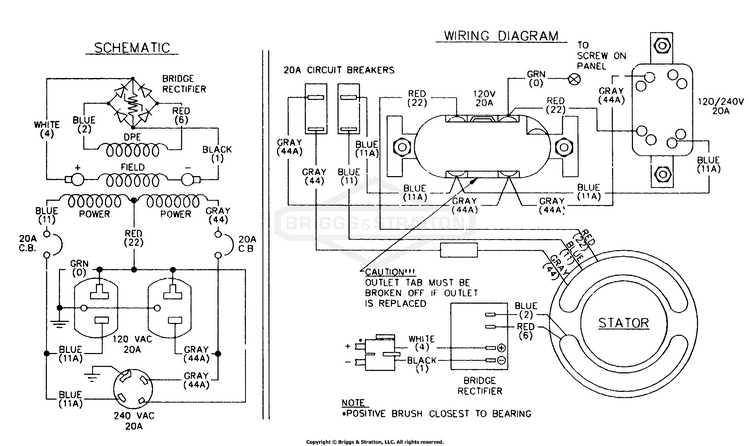

Electrical Data - No. 83867

...

No Parts Available for this Schematic
