9718-1 Briggs and Stratton Portable Generator SVT4200, 4,200 Watt

Model: 9718-1

Save Part Not Listed?
product name

Popular Parts

Popular Parts

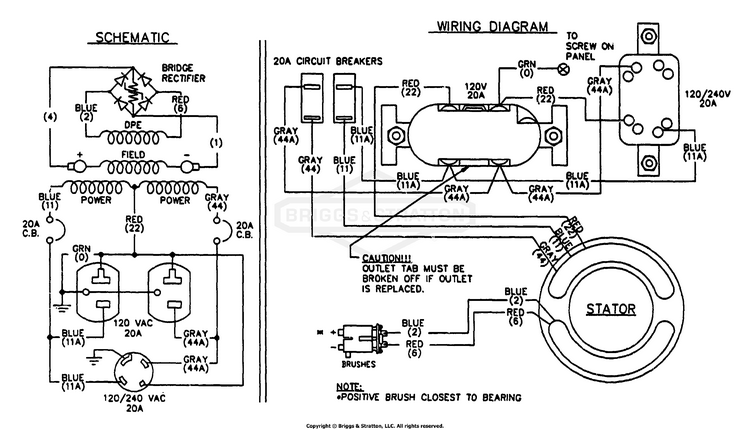

Electrical Data No. 93439

...

No Parts Available for this Schematic

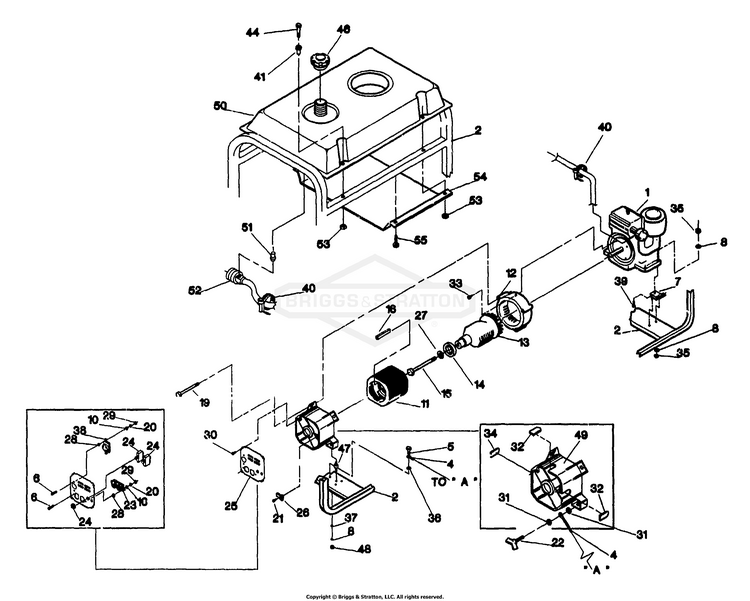

Generator No. 92453

...
...
1
Briggs & Stratton 8 HP Engine with Low Oil Shutdown BS-91009
...
2
PUSHNUT, CAP, 1/4 BS-704005
...
4
WIRE, Ground BS-195373GS
...
5
SCREW BS-313085GS
...
6
M4-0.7 x 10mm Screw BS-75475
...
7
MOUNT, Vibration 45°. BS-70642GS
...
8
WASHER, Lock BS-22129GS
...
10
WASHER BS-38150GS
...
11
ELBOW-EXHAUST BS-690291
...
12
HOUSING, Engine Adapter BS-66365GGS
...
13
Rotor Assembly BS-91836
...
14
BEARING BS-65791GS
...
15
HHCS, 5/16" - 24 x 7-7/8" BS-24823GS
...
16
PIN, ROLL 4MM x 10 BS-81917GS
...
19
HHCS, M6 - 1.0 x 115 SEMS BS-86308GS
...
20
No. 8 Lock Washer BS-22264
...
21
HHCS, M5-0.8 X 16 BS-49815GS
...
22
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
23
OUTLET, 20A,120V BS-68759GS
...
24
BRKR, CRCT, 20A, 2P BS-77247GS
...
25
Sheet Metal - Control Panel BS-83589
...
26
Brush Holder Assembly and Bridge Rectifier BS-91825
...
27
Flat Washer (special) BS-67451
...
28
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
29
NUT, M4-0.7 Hex BS-51715GS
...
30
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
32
GROMMET, Plastic RBC BS-84242GS
...
33
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
34
GROMMET, RUBBER BS-67022GS
...
35
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
36
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
38
OUTLET, 120/240V Locking, 20A BS-68867GS
...
39
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
40
1/4" Hose Clamp BS-48031C
...
41
GROMMET, TANK BS-83465GS
...
44
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS
...
46
Fuel Tank Cap BS-84852
...
47
MOUNT, VIBRATION BS-82857GS
...
48
NUT, 5/16-18 HEX BS-25244GS
...
49
CARRIER, Rear Bearing BS-SRV66825DGS
...
50
Fuel Tank BS-77374
...
51
Kit, Valve BS-192980GS
...
52
PULLEY CATCHER HZT/ BS-7078298YP
...
53
NUT, FLANGE LOCK - M6 BS-77395GS
...
54
Heat Shield BS-78951
...
55
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
56
Low Oil Shutdown BS-88977
...
57
Low Oil Shutdown Gasket BS-91841
...
58
WIRE-A, 18AWG, BLK, 445MM BS-91842AGS
...
59
TAPTITE, #10-32 X 5/8 BS-32713GS
...
60
NUT, #8-32 BS-22471GS
...
61
TIRE ASSM, 24X12.00-1 BS-5023365YP
