9704-0 Briggs and Stratton Portable Generator 3,500 XL, 3,500 Watt

Model: 9704-0

Save Part Not Listed?
product name

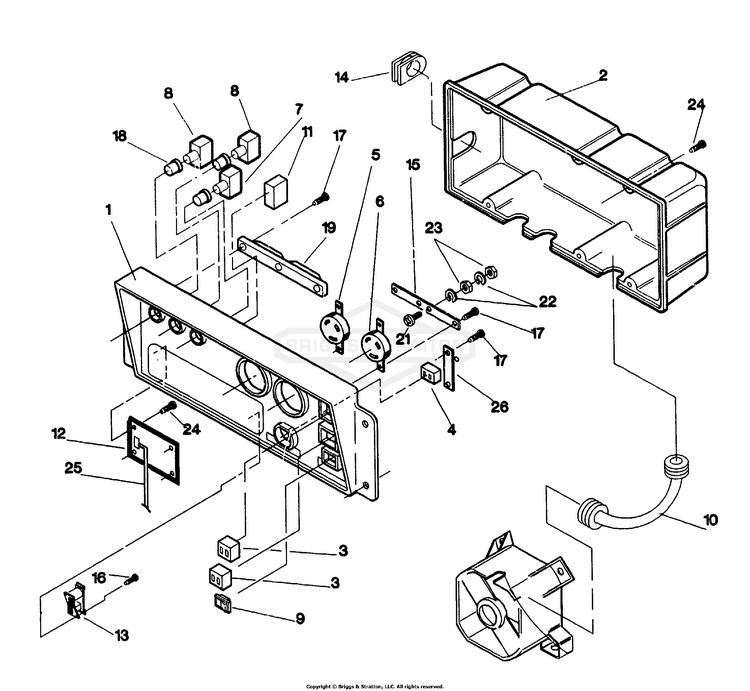

Control Panel - No. 87407

...
...
1
PANEL, Control BS-83976GS
...
2
BOX, Control BS-83975GS
...
3
OUTLET, 120 V AC, 15 A Duplex BS-66818GS
...
4
OUTLET, 12 V DC BS-66821GS
...
5
OUTLET, 120/240 V AC, 20 A Locking BS-68867CGS
...
6
OUTLET-120V TL30A BS-705932
...
7
BREAKER-CIRCUIT 30A BS-706178
...
8
BREAKER, Circuit BS-75207GGS
...
9
SWITCH, Idle Control BS-82538GS
...
10
GROMMET, Rubber Connector BS-84134GS
...
11
BREAKER, Circuit BS-83514GS
...
12
BOARD, System Control BS-83970GS
...
13
TRANSFORMER, Idle Control BS-84028GS
...
14
GROMMET, RUBBER BS-67022GS
...
15
BAR, Bus BS-85584GS
...
16
3.0 x 12mm Screw BS-84534A
...
17
3.5 x 18mm Screw BS-84534C
...
18
CAP, Breaker, Circuit BS-84198GS
...
19
BAR, Circuit Breaker Retaining BS-84197GS
...
21
PPHMS, M4-0.7 x 16 BS-75476GS
...
22
M4 Lock Washer BS-22264
...
23
NUT, M4-0.7 Hex BS-51715GS
...
24
3.5 x 12mm Screw BS-84534B
...
25
ASSEMBLY, Wire Harness BS-84335GS
...
26
BAR, DC Outlet Retaining BS-82542GS

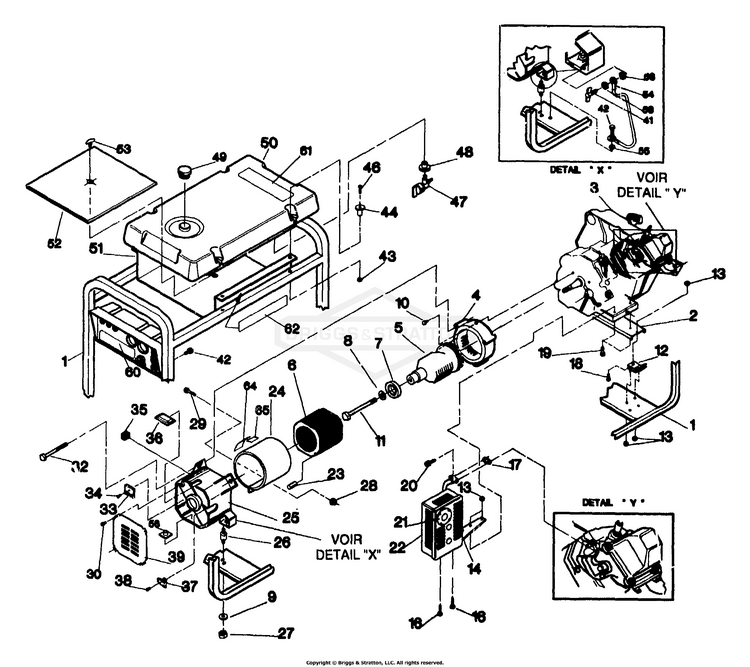

Cradle - No. 84718

...
...
1
3500 XL Cradle BS-83533
...
2
SUPPORT, Engine BS-B84021GS
...
3
6 HP XL Engine BS-83232
...
4
HOUSING, Engine Adapter BS-66365GS
...
5
Rotor Assembly BS-84141
...
6
Stator Assembly BS-83540
...
7
BEARING BS-65791GS
...
8
M8 Flat Washer BS-67451
...
9
WASHER, Lock BS-22129GS
...
10
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
11
FLOOR PLATE BS-5047480B
...
12
MOUNT, Vibration BS-84508GS
...
13
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
14
BRACKET, Muffler BS-83208GS
...
16
M6-1.0 x 12mm Capscrew BS-86309
...
17
GSKT, EXHAUST BS-80314GS
...
18
SCREW BS-70644GS
...
19
TPHMS, M8 - 1.25 x 35 BS-195398GS
...
20
M8-1.25 x 20mm Capscrew BS-40976
...
21
SCREEN, Spark Arrest BS-83083GS
...
22
MUFFLER BS-83071GS
...
23
PIN, ROLL 4MM x 10 BS-81917GS
...
24
Stator Wrap BS-81887B
...
25
Rear Bearing Carrier BS-66825
...
26
MOUNT-VIBRATION BS-194153GS
...
27
SKID PLATE BS-5045771B
...
28
NUT, LOCKING-M5 BS-52856GS
...
29
SCREW, M5 x 0.8 x 12 BS-52618GS
...
30
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
32
HHCS, M6 - 1.0 x 115 SEMS BS-86308GS
...
33
RECTIFIER, BATTERY CHARGE BS-65795GS
...
34
SCREW BS-66849AGS
...
35
GROMMET, RUBBER BS-67022GS
...
36
ASSEMBLY, POWER REGULATOR BS-84132GS
...
37
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
38
HHCS, M5-0.8 X 16 BS-49815GS
...
39
Bearing Carrier Cover BS-67025
...
40
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
41
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
42
SCREW BS-313085GS
...
43
NUT, FLANGE LOCK - M6 BS-77395GS
...
44
GROMMET, TANK BS-83465GS
...
46
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS
...
47
Kit, Valve BS-192980GS
...
48
Plastic Tank Bushing BS-80269
...
49
Fuel Cap BS-84582
...
50
Fuel Tank BS-83311
...
51
Heat Shield BS-84042
...
52
INSULATION BS-84687GS
...
53
CLIP, INSULATION BS-85000GS
...
54
WIRE, Ground BS-195373GS
...
55
WASHER, #10 Ext. Shakeproof BS-23762GS
...
58
MOUNT, CABLE TIE BS-57593GS
...
60
Control Panel Decal BS-84679
...
61
Start/Danger Decal BS-78992
...
62
Heat Shield Decal BS-84678
...
64
DECAL, DATA, GNRC GEN BS-78817GS
...
65
DECAL, STA-BIL BS-81886GS

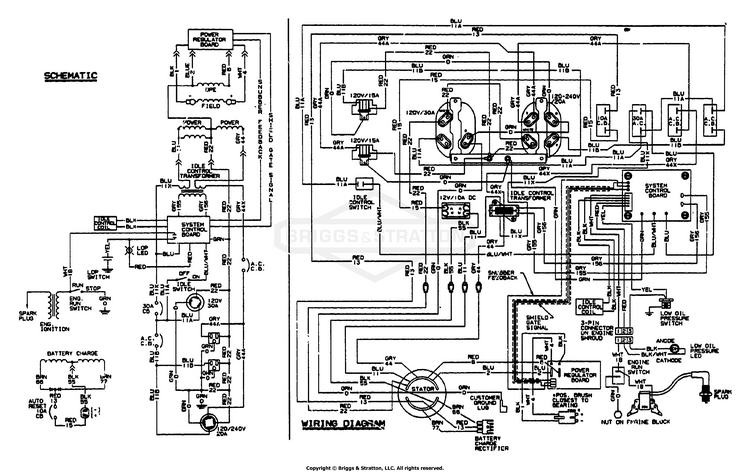

Electrical Schematic And Wiring Diagram - No. 84249

...

No Parts Available for this Schematic

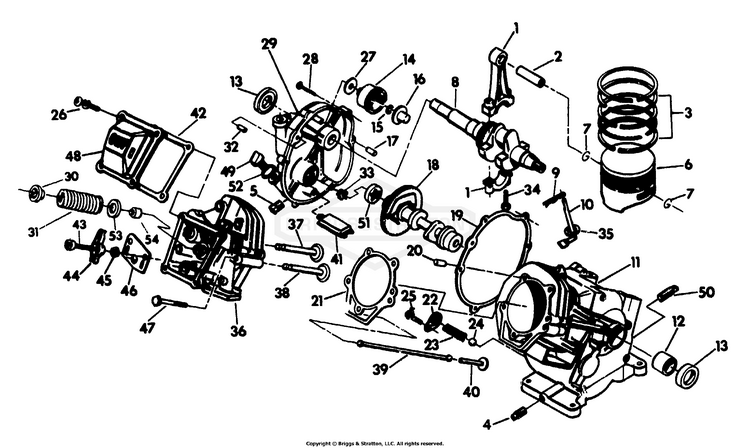

GN-190 Engine - No. 83239

...
...
1
Connecting Rod with Cap & Bolt BS-78621
...
2
Piston Pin BS-76389
...
3
Piston Ring Set BS-78660
...
4
1/4" Magnetic Pipe Plug BS-81694
...
5
1/8" NPTF Pipe Plug BS-72683
...
6
Piston BS-76386
...
7
(C) BELT SHIELD WELD BS-7047947YP
...
8
Crankshaft Assm. w/Gear BS-83337
...
9
Governor Arm "R" Pin BS-78658
...
10
Governor Arm BS-76354
...
11
Crankcase Sub-assembly BS-88276
...
12
Sleeve Bearing BS-76349
...
13
Crankshaft Seal BS-81695
...
14
Governor Gear Assembly BS-76359
...
15
Governor Retainer ("C" ring) BS-78645
...
16
Governor Spool BS-76365
...
17
Sleeve Dowel (10" dia.) BS-78699A
...
18
Camshaft Assembly BS-83335
...
19
Crankcase Gasket BS-76350
...
20
Sleeve Dowel (12" dia.) BS-78699B
...
21
Cylinder Head Gasket BS-77165B
...
22
Oil Pressure Sprg Retainer BS-78691
...
23
Oil Pressure Spring BS-76367
...
24
Pressure Relief Ball BS-76362
...
25
M5-0.8 x 8mm Screw BS-78692
...
26
M6-1.0 x 12mm Screw BS-78606
...
27
Thrust washer BS-76361
...
28
Flanged Hex Capscrew BS-78661
...
29
Sub-assembly Gear Cover BS-88277B
...
30
Valve Spring Retainer BS-77157
...
31
Valve Spring BS-76398
...
32
10" dia. x 20" Dowel Pin BS-78633
...
33
Inner Gerotor BS-83152
...
34
Connecting Rod BS-76381
...
35
Governor Arm Washer BS-78659
...
36
Cylinder Head with Valve Seats and Guides BS-78623
...
37
Exhaust Valve BS-73121
...
38
CAP DUST BS-7073120YP
...
39
Push Rod BS-76392
...
40
Tappet BS-83235
...
41
Oil Pickup Assembly BS-80336
...
42
Rocker Cover Gasket BS-77167
...
43
Pivot Ball Stud BS-77161
...
44
Rocker Arm BS-77160
...
45
Jam Nut (rocker arm) BS-76307
...
46
Push Rod Guide Plate BS-77162
...
47
M8 x 50mm Head Bolt BS-77168
...
48
Rocker Cover Brthr. Assm. BS-81690
...
49
Oil Fill Plug BS-76329
...
50
BELT,TRACTION DRIVE BS-7072657YP
...
51
Outer Gerotor - 6/5 BS-83153
...
52
O-ring - 17.8mm I.D. x 2.4mm BS-86254
...
53
Valve Spring Washer BS-84186
...
54
Valve Stem Seal BS-88155

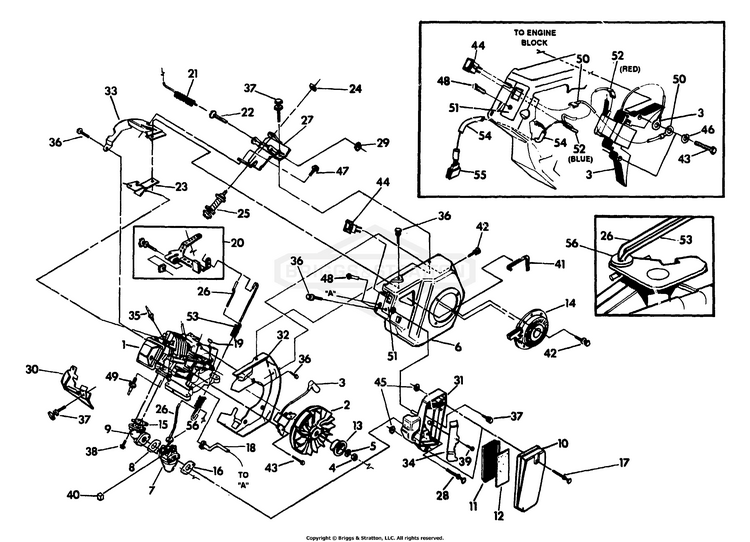

GN-190 Engine 6 HP HS Long Block - No. 83784

...
...
1
6 HP HS Long Block BS-83561
...
2
Flywheel Assembly BS-84426A
...
3
Ignition Coil Assembly BS-81675
...
4
M16-1.5 Hex Nut BS-81810
...
5
Conical Washer BS-83312
...
6
Complete Blower Housing BS-85118
...
7
Carburetor HS Assembly BS-83666
...
8
Carburetor/Manifold Gasket BS-78631
...
9
HS Intake Manifold BS-77197
...
10
Air Cleaner Assembly (with bolts) BS-87792
...
11
Air Filter Element BS-84892
...
12
Air Filter Pre-Cleaner BS-78602
...
13
Recoil Cup BS-83015
...
14
Recoil Assembly BS-81671
...
15
Manifold/Head Gasket BS-82776
...
16
Carburetor/Air Cleaner Gasket BS-78632
...
17
M8-1.25 Hex Jam Nut BS-66311
...
18
Breather Hose BS-82755
...
19
4 x 19 Woodruff Key BS-82774
...
20
Governor Lever Assembly BS-86972
...
21
Governor Spring BS-78604
...
22
Governor Adjusting Screw BS-83502
...
23
Air Deflector BS-83198
...
24
Idle Control Coil BS-83782
...
25
Anti-Lash Extension Spring BS-86037
...
26
Governor Rod BS-86384
...
27
Governor Adjust Bracket BS-83781
...
28
Carburetor Mounting Bolt BS-78643
...
29
M5-0.8 Mounting Lock Nut BS-83503
...
30
Bottom Wrapper BS-83197
...
31
Air Cleaner Base BS-78607
...
32
Blower Housing Back Plate BS-78651C
...
33
Top Wrapper BS-83196
...
34
Breather Canal Cover BS-80303
...
35
PLUG, SPARK BS-84007216
...
36
M6-1.0 x 10mm Taptite Bolt BS-45756
...
37
SCREW, M6-1 x 12 w/Lock Washer BS-66476GS
...
38
M6-1.0 x 30mm Capscrew with lock washer BS-80316
...
39
No. 8 x 3/8" Plastite Screw BS-59635
...
40
Choke Lever Knob BS-83504
...
41
Air Cleaner/Blower Housing Seal BS-84867
...
42
M6-1.0 x 10mm Capscrew with lock washer BS-81668
...
43
M6-1.0 x 30mm Taptite Bolt BS-82981
...
44
SWITCH, Run - Stop BS-78653GS
...
45
NUT, M6 BS-49813GS
...
46
CAP BS-5022097SM
...
47
Screw, M8 1.25 x 15, Taptite BS-83512GS
...
48
Low Oil Indicator LED BS-85272
...
49
8-12 psi Oil Pressure Switch BS-60108
...
50
Ground Wire Assembly BS-00285271
...
51
LOS Engine Decal BS-84195
...
52
Ignition Wire Assembly BS-00185271
...
53
Cable Tinnerman Clamp BS-84274
...
54
No. 3, 145mm Sleeving BS-85620
...
55
3-pin, Male Housing BS-84329
...
56
Carburetor Wear Washer BS-85953
...
57
Anti-lash Extension Spring BS-86037
...
58
Idle Control Coil BS-83782
...
59
JAM-M8-1.25 Hex Nut BS-66311
