9699-0 Briggs and Stratton Portable Generator 3500LX, 3,500 Watt

Model: 9699-0

Back To Assemblies

Save Part Not Listed?
product name

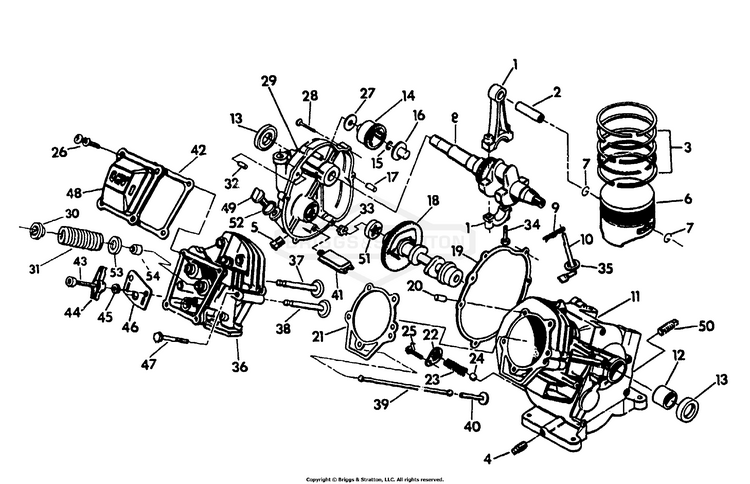

GN-190 Engine - No. 83239

...
...
1
Connecting Rod with Cap & Bolt BS-78621
...
2
Piston Pin BS-76389
...
3
Piston Ring Set BS-78660
...
4
1/4" Magnetic Pipe Plug BS-81694
...
5
1/8" NPTF Pipe Plug BS-72683
...
6
Piston BS-76386
...
7
(C) BELT SHIELD WELD BS-7047947YP
...
8
Crankshaft Assm. w/Gear BS-83337
...
9
Governor Arm "R" Pin BS-78658
...
10
Governor Arm BS-76354
...
11
Crankcase Sub-assembly BS-88276
...
12
Sleeve Bearing BS-76349
...
13
Crankshaft Seal BS-81695
...
14
Governor Gear Assembly BS-76359
...
15
Governor Retainer ("C" ring) BS-78645
...
16
Governor Spool BS-76365
...
17
Sleeve Dowel (10" dia.) BS-78699A
...
18
Camshaft Assembly BS-83335
...
19
Crankcase Gasket BS-76350
...
20
Sleeve Dowel (12" dia.) BS-78699B
...
21
Cylinder Head Gasket BS-77165B
...
22
Oil Pressure Sprg Retainer BS-78691
...
23
Oil Pressure Spring BS-76367
...
24
Pressure Relief Ball BS-76362
...
25
M5-0.8 x 8mm Screw BS-78692
...
26
M6-1.0 x 12mm Screw BS-78606
...
27
Thrust washer BS-76361
...
28
Flanged Hex Capscrew BS-78661
...
29
Sub-assembly Gear Cover BS-88277B
...
30
Valve Spring Retainer BS-77157
...
31
Valve Spring BS-76398
...
32
10" dia. x 20" Dowel Pin BS-78633
...
33
Inner Gerotor BS-83152
...
34
Connecting Rod BS-76381
...
35
Governor Arm Washer BS-78659
...
36
Cylinder Head with Valve Seats and Guides BS-78623
...
37
Exhaust Valve BS-73121
...
38
CAP DUST BS-7073120YP
...
39
Push Rod BS-76392
...
40
Tappet BS-83235
...
41
Oil Pickup Assembly BS-80336
...
42
Rocker Cover Gasket BS-77167
...
43
Pivot Ball Stud BS-77161
...
44
Rocker Arm BS-77180
...
45
Jam Nut (rocker arm) BS-76307
...
46
Push Rod Guide Plate BS-77162
...
47
M8 x 50mm Head Bolt BS-77168
...
48
Rocker Cover Brthr. Assm. BS-81690
...
49
Oil Fill Plug BS-76329
...
50
BELT,TRACTION DRIVE BS-7072657YP
...
51
Outer Gerotor - 6/5 BS-83153
...
52
O-ring - 17.8mm I.D. x 2.4mm BS-86254
...
53
Valve Spring Washer BS-84186
...
54
Valve Stem Seal BS-88155
