9683-1 Briggs and Stratton Welder Smartweld 300

Model: 9683-1

Save
 Part Not Listed?Part Not Listed?
product name

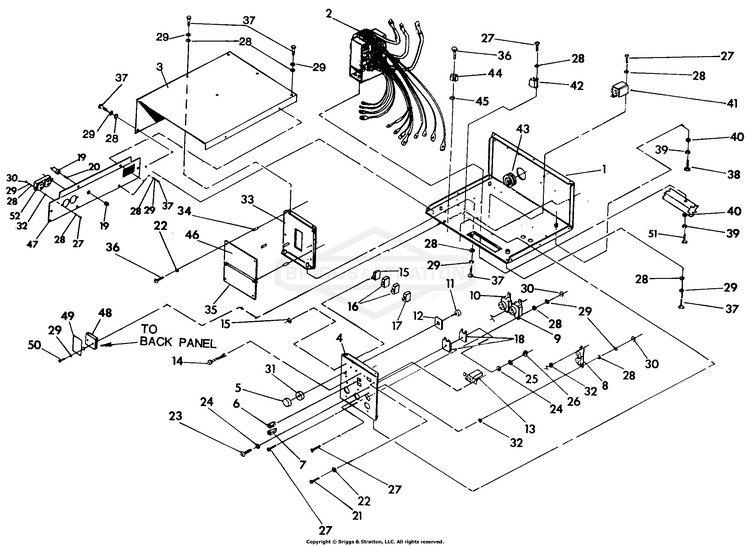

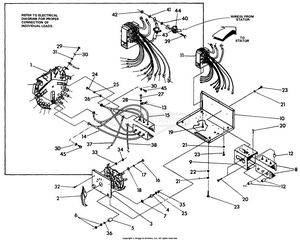

Control Panel

...
...
1
BASE, CONTROL BS-94788
...
2
WASHER, 5/16" LOCK BS-5025170SM
...
3
COVER, CONTROL BASE BS-94787
...
4
SCREW BS-691131
...
5
V-BELT, SPA520 BS-7042813YP
...
6
SWITCH, Idle Control BS-82538GS
...
7
SWITCH, SPDT BS-87798
...
8
OUTLET, 20A,120V BS-68759GS
...
9
OUTLET, 120/240V Locking, 20A BS-68867GS
...
10
OUTLET-120V TL30A BS-705932
...
11
33 REPLACE DECK KIT BS-7061956YP
...
12
INSULATOR, POTENTIOMETER BS-92599
...
13
OUTLET, 12Volt DC (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.) BS-66822GS
...
14
LED, FAULT INDICATOR BS-82545
...
15
BREAKER-CIRCUIT 30A BS-706178
...
16
BREAKER-CIRCUIT 20A BS-209872GS
...
17
BRKR, CRCT, 10A BS-75207BGS
...
18
RECTIFIER, BATTERY CHARGE BS-65795GS
...
19
Holder, Fuse BS-191302GS
...
20
20A FUSE BS-A3157
...
21
SCREW, M3-0.5 x 10mm BS-43181GS
...
22
WASHER, M3 Lock BS-43182GS
...
23
SCREW BS-36939GS
...
24
WASHER, Rivet, 3/16 BS-1910531SM
...
25
VALVE, FUEL SHUT OFF BS-84010414
...
26
CAP, FUEL TANK, 3-1/2 NECK BS-5022158
...
27
PPHMS-M4-0.7 x 10 BS-75475
...
28
WASHER BS-38150GS
...
29
LOCKWASHER-M4 BS-22264
...
30
NUT, M4-0.7 Hex BS-51715GS
...
31
FOAM WASHER BS-50545
...
32
M4 LOCKWASHER EXTERNAL BS-26579
...
33
BRACKET MOUNTING, PC BOARD BS-93944
...
34
STAND OFF BS-93929GS
...
35
CIRCUIT BOARD ASSEMBLY #2 BS-93796
...
36
SCREW BS-93986GS
...
37
PPHMS, M4-0.7 x 16 BS-75476GS
...
38
HHCS, M6-1 0 X 40 BS-51753GS
...
39
WASHER, Lock BS-22129GS
...
41
RELAY AUXILARY POWER BS-92973
...
42
RELAY BATTERY CHARGE BS-57334
...
43
SNAP BUSHING BS-23484F
...
44
LUG 4 TABS BS-57345
...
45
WHEEL, 12 X 8.5 BS-5023364YP
...
46
BOARD, CIRCUIT #1 BS-93049
...
47
SIDE, CONTROL PANEL BS-94783
...
48
HEATSINK, AUX. POWER BS-95024
...
49
SCREW BS-691664
...
50
HHCS, M4-0.7 X 30 BS-84932GS
...
51
ASSEMBLY, Short Axle BS-7050830YP
...
52
OUTLET, 20A,120V BS-68759GS

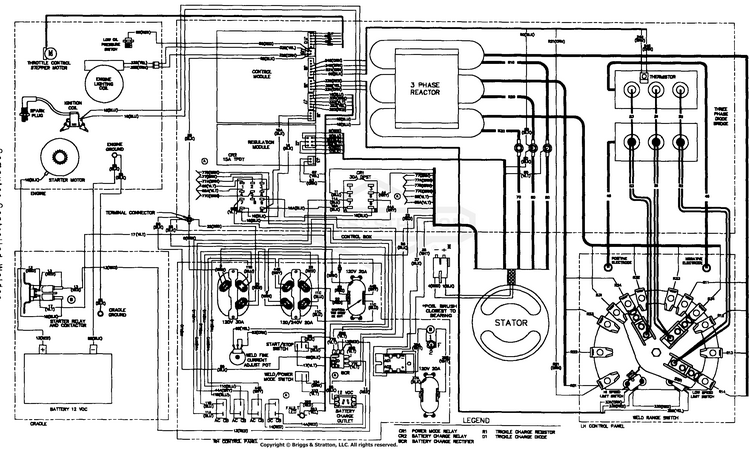

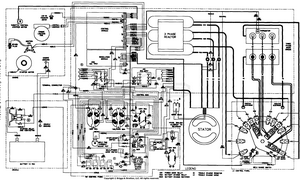

Electrical Schematic

...

No Parts Available for this Schematic

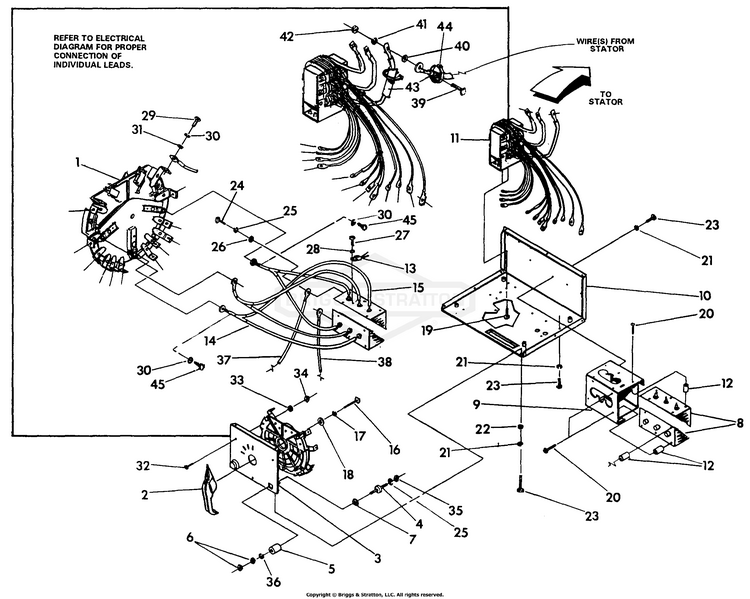

Range Selector Switch

...
...
1
ASSY, SWITCH, WELDER BS-90381GS
...
2
HANDLE, SWITCH BS-90382
...
3
SCREW BS-691673
...
4
BOLT, CARRIAGE BS-89533
...
5
INSULATOR OUTER BS-88750
...
6
NUT, BRASS 1/2" BS-91849
...
7
INSULATOR INNER BS-88749
...
8
NUT, NYLOCK, 10-32 BS-703937
...
9
NUT,7/16-20 BS-703348
...
10
BASE, CONTROL BS-94788
...
11
WASHER, 5/16" LOCK BS-5025170SM
...
12
INSULATOR HEATSINK BS-92568
...
13
THERMISTOR OVERLOAD BS-92876
...
14
DIODE BS-90380
...
15
DIODE, 150A400V REV STU BS-90386GS
...
16
HHCS-M8-1.25 x 40MM BS-57821
...
17
WASHER, Lock BS-22129GS
...
19
SHIELD, TRAIL, 21R BS-7024526YP
...
20
M4-0.7 x 16 HHCS BS-51787
...
21
LOCKWASHER-M4 BS-22264
...
22
Thumb Control Lever BS-5043180B
...
23
PPHMS, M4-0.7 x 16 BS-75476GS
...
24
HHCS-3/8-24 x 3/4 LONG BS-33209
...
25
LOCKWASHER, SPLIT 3/8 BS-703454
...
26
WASHER, FLAT .406X.81 BS-71072MA
...
27
ASSEMBLY, Slider BS-7050711YP
...
28
WASHER, M3 Lock BS-43182GS
...
29
SCREW, M5 x 0.8 x 12 BS-52618GS
...
30
WASHER, M5 Lock BS-49226GS
...
31
WASHER, M5 BS-51713GS
...
32
PPHMS-10-32 x 7/8 LG. BS-36936
...
33
VALVE, FUEL SHUT OFF BS-84010414
...
34
CAP, FUEL TANK, 3-1/2 NECK BS-5022158
...
35
DECAL, ProCut Z Text BS-5022241
...
36
LOCKWASHER-1/2" BS-88460
...
37
ASSY, CABLE, BRAIDED BS-93777AGS
...
38
SCREW BS-690364
...
39
HANDLE BS-84010594
...
40
WASHER BS-49811GS
...
41
CAP BS-5022097SM
...
42
NUT, M6 BS-49813GS
...
43
SLEEVING 3/4" BS-94808
...
44
Wrap, Tie BS-28739GS
...
45
SCREW BS-33141GS

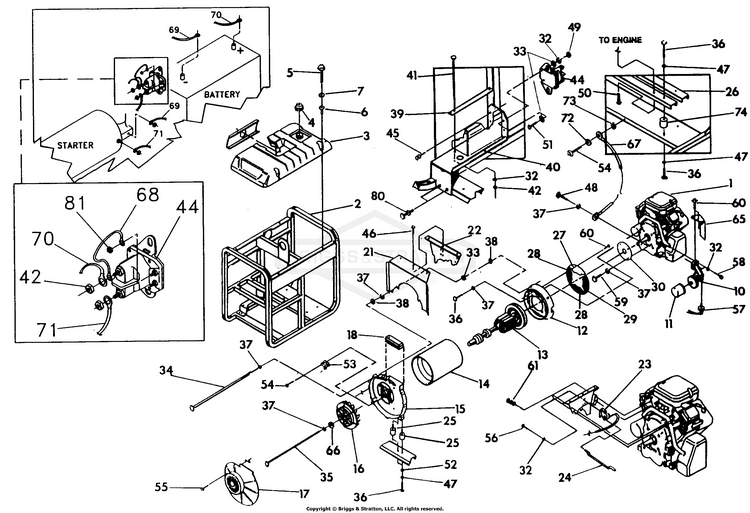

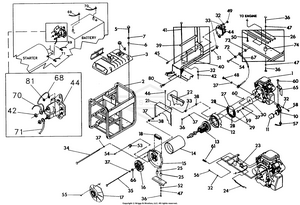

Welder

...
...
1
ENGINE 18 H.P. W/STEPPER MOTOR BS-88175
...
2
CRADLE ASSEMBLY V-TWIN WELDER BS-90917
...
3
ASSY, TANK, FUEL, TEST, 5 GAL BS-93615GS
...
4
CAP, Fuel Tank BS-846987
...
5
HHCS-M6-1.0 x 35 SEMS BS-79816
...
6
GROMMET, TANK BS-83465GS
...
7
WSHR, SPCL, BLK BS-78830GS
...
10
FILTER, ADAPTOR OIL BS-90914
...
11
FILTER, Oil BS-70185GS
...
12
ENGINE ADAPTOR BS-92774
...
13
ROTOR ASSEMBLY 300 AMP. WELDER BS-94645
...
14
SCREW BS-691665
...
15
RBC, MACH, WELD BS-90910GS
...
16
SCREW BS-703167
...
17
COVER, COOLING FAN BS-90906
...
18
DUCT, AIR RUBBER BS-90966
...
21
SHIELD, HEAT STATOR BS-90916
...
22
SHIELD, HEAT ENGINE BS-93322
...
23
STEPPER MOTOR ASSEMBLY BS-92102
...
24
LEVER, ROD GOVERNOR BS-92526
...
25
MNT, VBRTN, 30 DURO BS-35097GS
...
26
ENGINE SUPPORT BS-92582
...
27
PLATE, COVER-ALT. BS-71791
...
28
GUARD & RODENT SCREEN BS-55275
...
29
Locknut-Impulse Pump BS-231001
...
30
GUARD, CENTER BS-55277
...
31
WASHER, M5 BS-51713GS
...
32
CAP BS-5022097SM
...
34
STATOR BOLTS 5/16-24 x 12.25 BS-93466
...
35
HHCS 5/16-24 x 12.75 BS-A2593
...
36
WHEEL ASSEMBLY BS-84010756
...
37
WASHER, Lock BS-22129GS
...
38
HEX NUT-5/16 BS-24114
...
39
CONTROL, Hydro, Right BS-5044951B
...
40
BATTERY TRAY BS-84650
...
41
HHCS, 1/4-20 X 7 BS-45000GS
...
42
1/4"-20 HEX NUT BS-22127
...
44
SOLENOID 12V. BS-86729
...
45
SCREW BS-313085GS
...
46
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
47
LOCKWASHER, SPLIT 3/8 BS-703454
...
48
CAPSCREW, M8-1.25X16 BS-703987
...
49
NUT, M6 BS-49813GS
...
50
TAPTITE BS-75246GS
...
51
HANDLE BS-84010594
...
52
WASHER, FLAT .406X.81 BS-71072MA
...
53
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
54
HHCS, M5-0.8 X 16 BS-49815GS
...
55
TRILOBLAR, 8-32 x 3/8 BS-24911GS
...
56
SCREW BS-43146GS
...
57
LOW OIL PRESSURE SWITCH BS-60108
...
58
SHCS, M6-1.0 X 16 BS-64182GS
...
59
COLLAR, 5/16" SET BS-5020047SM
...
60
#10-32 x 1/4" BS-46852
...
61
FLANGE HHCS BS-94084
...
65
SHIELD, HEAT OIL SENSORS BS-93841
...
66
BELLEVILLE WASHER 5/16 BS-42774
...
67
GROUND WIRE BS-16653621
...
68
SOLENOID JUMP WIRE BS-17253621
...
69
BATTERY GROUND CABLE BS-16153621
...
70
POSITIVE BATTERY CABLE BS-16053621
...
71
STARTER/SOLENOID CABLE BS-16253621
...
72
WASHER, Rivet, 3/16 BS-1910531SM
...
73
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
74
VIBRATION DAMPENER BS-46911
...
80
1/4-20 x 1/2 CRIMPTITE BS-58442
...
81
CAP, FUEL TANK, 3-1/2 NECK BS-5022158

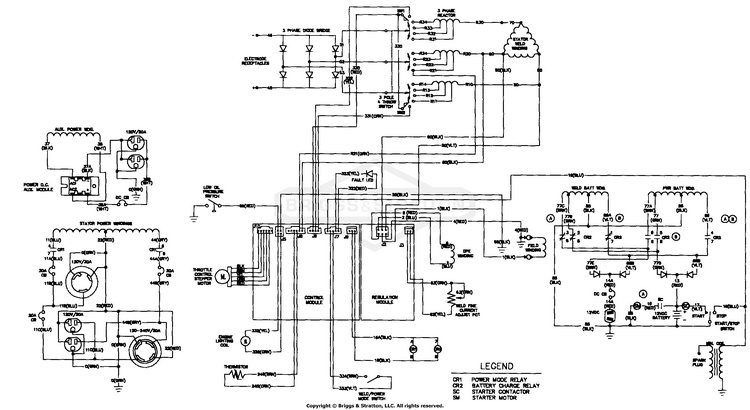

Wiring Diagram

...
