9683-0 Briggs and Stratton Welder Smartweld 300

Model: 9683-0

Save
 Part Not Listed?Part Not Listed?
product name

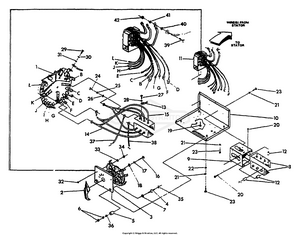

Control Panel

...
...
1
PIN, 1/8 X 0.75 BS-703958
...
2
WASHER, 5/16" LOCK BS-5025170SM
...
3
WASHER BS-690277
...
4
SCREW, 5/16-18X1-1/2 BS-704318
...
5
V-BELT, SPA520 BS-7042813YP
...
6
SWITCH, Idle Control BS-82538GS
...
7
Switch (SPDT) BS-87798
...
8
OUTLET, 20A,120V BS-68759GS
...
9
OUTLET, 120/240V Locking, 20A BS-68867GS
...
10
OUTLET-120V TL30A BS-705932
...
11
33 REPLACE DECK KIT BS-7061956YP
...
12
Insulator BS-92599
...
13
OUTLET, 12Volt DC (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.) BS-66822GS
...
14
Fault indicator Lamp (LED) BS-82545
...
15
BREAKER-CIRCUIT 30A BS-706178
...
16
BREAKER-CIRCUIT 20A BS-209872GS
...
17
BRKR, CRCT, 10A BS-75207BGS
...
18
RECTIFIER, BATTERY CHARGE BS-65795GS
...
19
1 ohm Resistor BS-75234
...
20
Resistor Mounting Bracket BS-64733
...
21
SCREW, M3-0.5 x 10mm BS-43181GS
...
22
WASHER, M3 Lock BS-43182GS
...
23
No. 10-32 x 3/4" Pan Head Machine Screw BS-36935
...
24
WASHER, Rivet, 3/16 BS-1910531SM
...
25
VALVE, FUEL SHUT OFF BS-84010414
...
26
CAP, FUEL TANK, 3-1/2 NECK BS-5022158
...
27
M4-0.70 x 10mm Pan Head Machine Screw BS-75475
...
28
WASHER BS-38150GS
...
29
M4 Lockwasher BS-22264
...
30
NUT, M4-0.7 Hex BS-51715GS
...
31
Foam Washer BS-50545
...
32
"14 External Lockwasher BS-26579
...
33
SCREW, 5/16-18 x 1 Hex Washer Self-Tap BS-7091841SM
...
34
STAND OFF BS-93929GS
...
35
Engine Controller Circuit Board BS-90855
...
36
SCREW BS-94839
...
37
PPHMS, M4-0.7 x 16 BS-75476GS
...
38
HHCS, M6-1 0 X 40 BS-51753GS
...
39
WASHER, Lock BS-22129GS
...
41
Auxiliary Power Relay BS-92973
...
42
Battery Charge Relay BS-92915
...
43
Snap Bushing BS-23484F
...
44
4-Tab Lug BS-57345
...
45
WHEEL, 12 X 8.5 BS-5023364YP

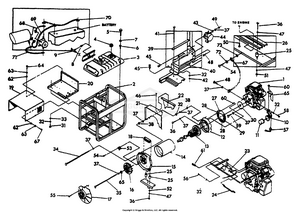

Cradle

...
...
1
Tank, Fuel (Includes Stepper Motor) BS-690289
...
2
Cradle Assembly BS-90957
...
3
Fuel Tank - 5 Gallon BS-90915
...
4
CAP, Fuel Tank BS-846987
...
5
M6-1.00 x 35mm Capscrew BS-79816
...
6
GROMMET, TANK BS-83465GS
...
7
WSHR, SPCL, BLK BS-78830GS
...
8
Kit, Valve BS-192980GS
...
9
Kit, Valve BS-192980GS
...
10
Oil Filter Adapter BS-90914
...
11
FILTER, Oil BS-70185GS
...
12
Engine Adaptor BS-92774
...
13
PIN, 3/8X5/8 BZ BS-7091232YP
...
14
Stator Assembly BS-91179
...
15
RBC, MACH, WELD BS-90910GS
...
16
SCREW BS-703167
...
17
Cooling Fan Cover BS-90906
...
18
Air Duct (Rubber) BS-90966
...
19
WASHER BS-690277
...
20
PIN, 1/8 X 0.75 BS-703958
...
21
Stator Heat Shield BS-90916
...
22
Engine Heat Shield BS-93322
...
23
Stepper Motor Assembly BS-92102
...
24
Governor Lever BS-92526
...
25
MNT, VBRTN, 30 DURO BS-35097GS
...
26
Engine Support BS-92582
...
27
Cover BS-71791
...
28
Guard & Rodent Screen BS-55275
...
29
Locknut-Impulse Pump BS-231001
...
30
Center Guard BS-55277
...
31
WASHER, M5 BS-51713GS
...
32
CAP BS-5022097SM
...
34
5/16"-24 x 12-1/4" Stator Bolt BS-93466
...
35
5/16"-24 x 12" Capscrew BS-29810
...
36
WHEEL ASSEMBLY BS-84010756
...
37
WASHER, Lock BS-22129GS
...
38
5/16" Hex Nut BS-24114
...
39
CONTROL, Hydro, Right BS-5044951B
...
40
Battery Tray BS-84650
...
41
HHCS, 1/4-20 X 7 BS-45000GS
...
42
1/4"-20 Hex Nut BS-22127
...
44
12 VDC Solenoid BS-56739
...
45
SCREW BS-313085GS
...
46
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
47
LOCKWASHER, SPLIT 3/8 BS-703454
...
48
HHCS, M8 1.25 x 16 BS-42907GS
...
49
SKID PLATE BS-5045771B
...
50
3/8"-16 x 1/4" Screw BS-76246
...
51
3/8" Hex Nut BS-27628
...
52
WASHER, Flat 3/8" BS-22131GS
...
53
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
54
HHCS, M5-0.8 X 16 BS-49815GS
...
55
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
56
SCREW BS-43146GS
...
57
Low Oil Pressure Switch BS-60108
...
58
SHCS, M6-1.0 X 16 BS-64182GS
...
59
5/16"-24 x 3/4" Capscrew BS-22336
...
60
No. 10-32 x 1/4" Screw BS-46852
...
61
Flanged Capscrew BS-94084
...
62
WASHER BS-38150GS
...
63
M4 Lockwasher BS-22264
...
64
PPHMS, M4-0.7 x 16 BS-75476GS
...
65
Heat Shield BS-93841
...
66
M8 Flatwasher BS-67451
...
67
Ground Wire BS-16653621
...
68
Jumper Wire BS-17253621
...
69
Battery Ground Cable BS-16153621
...
70
Positive Battery Cable BS-16053621
...
71
Solenoid to Starter Cable BS-16253621
...
72
M5 Flatwasher BS-23857
...
73
WASHER, SHAKE PROOF INT.# 10 BS-22769GS

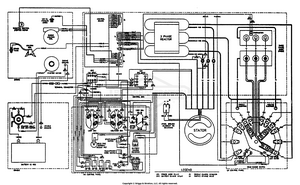

Electrical Diagram

...

No Parts Available for this Schematic

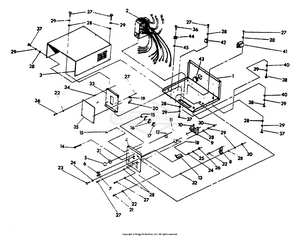

Range Selector Switch

...
...
1
ASSY, SWITCH, WELDER BS-90381GS
...
2
Range Selector Switch Handle BS-90382
...
3
Range Selector Switch Panel BS-92028
...
4
Carriage Bolt BS-89533
...
5
Outer Insulator BS-88750
...
6
1/2" Brass Nut BS-91849
...
7
Inner Insulator BS-88749
...
8
NUT, NYLOCK, 10-32 BS-703937
...
9
NUT,7/16-20 BS-703348
...
10
PIN, 1/8 X 0.75 BS-703958
...
11
WASHER, 5/16" LOCK BS-5025170SM
...
12
Insulator Assembly BS-92568
...
13
Overload Thermistor BS-92876
...
14
Diode BS-90380
...
15
DIODE, 150A400V REV STU BS-90386GS
...
16
M8-1.25 x 40mm Capscrew BS-57821
...
17
WASHER, Lock BS-22129GS
...
18
(S) WELD BRACE MOUNT BS-7049810YP
...
19
5/16"-12 x 5/8" Screw BS-69252
...
20
M4-0.80 x 16mm Capscrew BS-51787
...
21
M4 Lockwasher BS-22264
...
22
Thumb Control Lever BS-5043180B
...
23
PPHMS, M4-0.7 x 16 BS-75476GS
...
24
3/8"-24 x 3/4" Capscrew BS-33209
...
25
LOCKWASHER, SPLIT 3/8 BS-703454
...
26
WASHER, Flat 3/8" BS-22131GS
...
27
ASSEMBLY, Slider BS-7050711YP
...
28
WASHER, M3 Lock BS-43182GS
...
29
SCREW, M5 x 0.8 x 12 BS-52618GS
...
30
WASHER, M5 Lock BS-49226GS
...
31
WASHER, M5 BS-51713GS
...
32
SCREW BS-75477GS
...
33
VALVE, FUEL SHUT OFF BS-84010414
...
34
CAP, FUEL TANK, 3-1/2 NECK BS-5022158
...
35
DECAL, ProCut Z Text BS-5022241
...
36
1/2" Lockwasher BS-88460
...
37
ASSY, CABLE, BRAIDED BS-93777AGS
...
38
SCREW BS-690364
...
39
HANDLE BS-84010594
...
40
WASHER BS-49811GS
...
41
CAP BS-5022097SM
...
42
NUT, M6 BS-49813GS
...
...
...
