9676-0 Briggs and Stratton Portable Generator S-4000, 4,000 Watt

Model: 9676-0

Save Part Not Listed?
product name

Popular Parts

Popular Parts

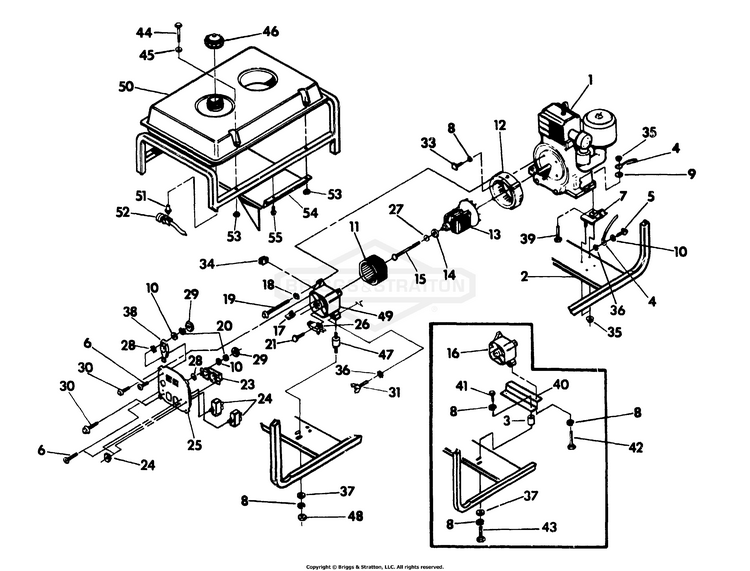

B&S 8 H.P. Engine S4000 AC Generator - No. 69140

...
...
1
Briggs & Stratton 8 H.P. Engine BS-78266
...
2
Cradle Assembly BS-77840
...
3
Vibration Mount BS-44624
...
4
Ground Wire BS-10953621
...
5
TRILOBLAR, 8-32 x 3/8 BS-24911GS
...
6
M4-0.7 x 10mm Pan Head Machine Screw BS-75475
...
7
MOUNT, Vibration 45°. BS-70642GS
...
8
WASHER, Lock BS-22129GS
...
WASHER, Lock BS-22129GS
...
9
WASHER, 5/16" Ext. Shakeproof BS-27482GS
...
10
WASHER BS-38150GS
...
11
Stator Assembly BS-77259
...
12
HOUSING, Engine Adapter BS-66365GGS
...
13
Rotor Assembly BS-74715
...
14
BEARING BS-65791GS
...
15
HHCS, 5/16" - 24 x 7-7/8" BS-24823GS
...
16
Rear Bearing Carrier BS-66825
...
17
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
18
CAP BS-5022097SM
...
19
M6-1.0 x 115mm Stator Bolt BS-66449E
...
20
No. 8 Lock Washer BS-22264
...
21
HHCS, M5-0.8 X 16 BS-49815GS
...
23
OUTLET, 20A,120V BS-68759GS
...
24
BRKR, CRCT, 20A, 2P BS-77247GS
...
25
Control Panel Sheet Metal BS-72098
...
26
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
27
Flat Washer (special) BS-67451
...
28
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
29
NUT, M4-0.7 Hex BS-51715GS
...
30
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
31
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
33
5/16"-24 x 3/4" Hex Head Screw BS-22336
...
34
GROMMET, RUBBER BS-67022GS
...
35
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
38
240 volts, 20 amp Outlet BS-68735
...
39
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
40
Alternator Support BS-73078
...
41
5/16-18 x 1/2" Hex Head Screw BS-36223
...
42
CAPSCREW M8-1.25X16 BS-703988
...
43
5/16-18 x 3/4" Hex Head Screw BS-30332
...
44
M6-1.0 x 55mm Hex Head Screw BS-78831
...
45
WSHR, SPCL, BLK BS-78830GS
...
46
Fuel Tank Cap BS-78824
...
47
MOUNT, VIBRATION BS-82857GS
...
48
NUT, 5/16-18 HEX BS-25244GS
...
49
Rear Bearing Carrier BS-66825A
...
50
Fuel Tank BS-77374
...
51
Kit, Valve BS-192980GS
...
52
PULLEY CATCHER HZT/ BS-7078298YP
...
53
NUT, FLANGE LOCK - M6 BS-77395GS
...
54
Heat Shield BS-78951A
...
55
CRIMPTITE, 10-24 X 3/8 BS-56892GS

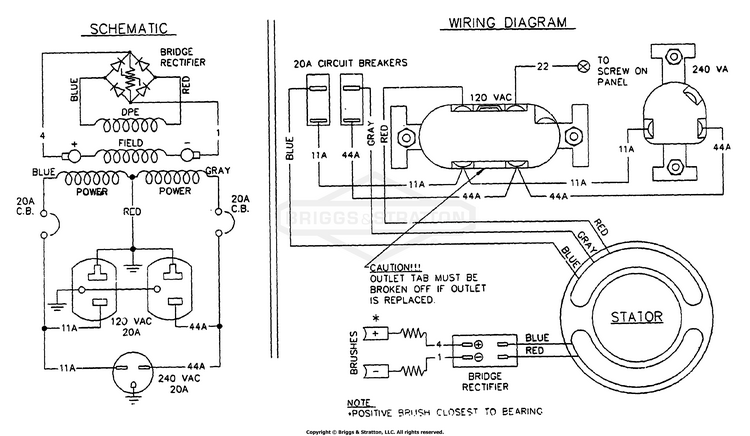

Electrical Data - No. 74122

...

No Parts Available for this Schematic
