9594-1 Briggs and Stratton Air Compressor 404AP Air Compressor

Model: 9594-1

Save
Part Not Listed?Part Not Listed?
product name

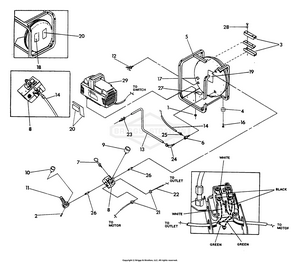

Air Compressor Drawing No. 89509

...
...
1
NUT-M6 FLANGE BS-52857GS

...
2
1/8" Socket Pipe Plug BS-61012

...
3
Handle Cover BS-66450

...
4
MOUNT, Rubber Donut BS-87841GS

...
5
Air Compressor Lube Cradle BS-88086

...
6
Valve Check Air Compressor BS-88088

...
7
Valve Relief, 125 psi BS-88089

...
8
Pressure Switch, 125V, 16A BS-88090

...
9
Pressure Gauge (1/4" x 2") BS-88091

...
10
Pressure Gauge (1/8" X 1.5") BS-88092

...
11
Air Pressure Regulator BS-88093

...
12
Air Tank Valve Drain BS-88094

...
13
Air Tube, pressure sensing BS-88206

...
14
Air-Compressor-to-Tank Tube BS-88280

...
15
1/4"-20 Self-drilling Capscrew BS-88289

...
16
Decal - Drain Air Compressor BS-88817

...
17
Decal - Warning BS-88994

...
18
Decal - Maintenance BS-89021

...
19
DECAL, WARNING BS-89022GS

...
20
Decal - 1.5 HP Oilless BS-89270

...
21
7/8" I.D. Strain Relief BS-89506

...
22
CORD, POWER 14 GA 3W BS-89508GS

...
23
Compressor Fitting 37TX37P BS-89514

...
24
3/8" I.D. Compressor Connector BS-89518

...
25
1/4" x 1/8" I.D. Compressor Fitting BS-87768

...
26
Brass LPN 1/4" x 1" x 1/2" BS-91063

...
27
RHSSNB, 1/4C X 1/2 GR BS-7091064YP

...
28
4mm Aluminum Rivet BS-66831

...
29
CMPRSSR, AIR, ELEC OILESS BS-88085GS
...
...
...
