9589-0 Briggs and Stratton Welder CCW170, 170A

Model: 9589-0

Save
 Part Not Listed?Part Not Listed?
product name

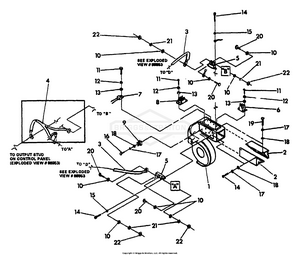

Air Duct

...
...
1
Welder Air Duct BS-88354
...
2
HEATSINK, CC160 WELD BS-88365GS
...
3
Braided Cable BS-93635
...
4
SCREW, 1/4-20X.375 BS-703583
...
5
SCR Module BS-88259
...
6
Welder Relay BS-91794
...
7
Overload Thermistor BS-89222
...
8
Auxiliary Power Module BS-89224
...
9
Battery Charge Rectifier BS-29673
...
11
Machine Screw- M3 x 10 BS-90987
...
12
WASHER, M3 Lock BS-43182GS
...
13
WASHER, Flat BS-52777GS
...
14
Capscrew- M8-1.25 x 16 BS-40948
...
15
WASHER, Lock BS-22129GS
...
16
Capscrew- M4 x 16mm BS-51787
...
17
Lockwasher- M4 BS-22264
...
18
Thumb Control Lever BS-5043180B
...
19
Screw- M4 x 10mm BS-75475
...
20
SCREW, M6 x 12 BS-43116GS
...
21
CAP BS-5022097SM
...
22
NUT, M6 BS-49813GS

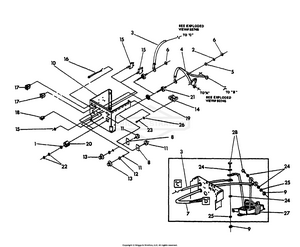

Control Panel

...
...
1
Lockwasher- 1/2" BS-88460
...
2
LOCKWASHER, SPLIT 3/8 BS-703454
...
3
KIT, Solenoid Hardware BS-194723GS
...
4
SCREW, 1/4-20X.375 BS-703583
...
5
WASHER, FLAT .406X.81 BS-71072MA
...
6
DECAL, ProCut Z Text BS-5022241
...
7
Braided Cable BS-93635
...
8
Potentiometer Insulator BS-92599
...
9
NUT, M6 BS-49813GS
...
10
Panel Mounting Bracket BS-88362
...
11
33 REPLACE DECK KIT BS-7061956YP
...
12
Foam Washer BS-50545
...
13
V-BELT, SPA520 BS-7042813YP
...
14
OUTLET, 12Volt DC (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.) BS-66822GS
...
15
BREAKER, Circuit BS-75207DGS
...
16
Light Emitting Diode BS-82545
...
17
Outlet - 120 VDC BS-90627
...
18
SWITCH, Idle Control BS-82538GS
...
19
Inner Insulator BS-88749
...
20
Outer Insulator BS-88750
...
21
Brass Carriage Bolt BS-89533
...
22
Brass Nut- 1/2" BS-91849
...
23
SCREW, M3-0.5 x 10mm BS-43181GS
...
25
CAP BS-5022097SM
...
26
WASHER, M3 Lock BS-43182GS
...
27
Inductor Assembly BS-92322
...
28
SCREW, M6 x 12 BS-43116GS

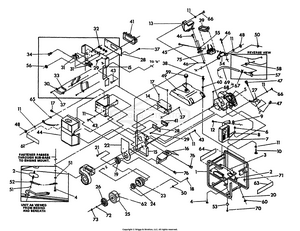

Welder

...
...
1
Cradle Assembly BS-88368
...
2
Vibration Mounts BS-88543
...
3
ASSY, BASE BS-82548GS
...
4
HHCS, M8-1.25 X 55 BS-39288GS
...
5
Engine BS-84623
...
6
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
7
MUFFLER BS-83071GS
...
8
BRACKET, Muffler BS-83208GS
...
9
GSKT, EXHAUST BS-80314GS
...
10
SCREW, M6-1 x 12 w/Lock Washer BS-66476GS
...
11
CAP BS-5022097SM
...
12
Socket Head Capscrew M8-1.25 x 20mm BS-40976
...
13
Rear Support Bracket BS-89535
...
14
Circuit Board Sheet Metal Cover BS-91363
...
15
Wall Divider BS-88363
...
16
DUCT, AIR, MFFLR BS-89534GS
...
17
TAPTITE, M4 -12 SEMS BS-88540GS
...
18
Hex Head Capscrew M6-1.00 x 90mm BS-53410
...
19
Engine Housing Adapter BS-80935
...
20
WASHER, Lock BS-22129GS
...
21
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
22
(C) COTTER PIN, 9/64X BS-7091793YP
...
23
Stator Assembly BS-83422
...
24
Retainer Ring BS-80934
...
25
Magnet Housing BS-90013
...
26
Magnet Housing Fan BS-88367
...
27
Front Support Bracket BS-89536
...
28
Circuit Board Mounting Bracket BS-91362
...
29
Hex Head Screw M4-0.70 x 6mm BS-49819
...
30
Stator Wire Retainer Bracket BS-91668
...
31
NUT, HEX, 3/8-16 BS-703996
...
32
GROMMET, TANK BRKT BS-87152GS
...
33
Foam Insulator BS-91861
...
34
Phillips Pan Head Machine Screw No. 4-40 x 3/8" BS-53472
...
37
SCREW, DEFLECTOR BS-77836AGS
...
38
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS
...
39
Inductor Band BS-66212
...
40
GROMMET, TANK BS-83465GS
...
41
Circuit Board Container BS-91072
...
43
Hex Head Capscrew M6-1.00 x 12mm BS-80826
...
44
Panel Cover BS-89234
...
45
HHCS, M6-1.0 X 80 BS-83601GS
...
46
Screw, M8 1.25 x 15, Taptite BS-83512GS
...
47
Head Bolt- M8 x 12mm BS-70124
...
48
NUT, M6 BS-49813GS
...
49
Fuel Tank BS-88366
...
50
NUT-M6 FLANGE BS-52857GS
...
51
WASHER, 5/16" Ext. Shakeproof BS-27482GS
...
52
Grounding Strap BS-15253621
...
53
MOUNT, Rubber Donut BS-87841GS
...
54
Inductor Top Mounting Bracket BS-92431
...
55
Inductor Lower Mounting Bracket BS-92417
...
56
Snap Bushing BS-23484E
...
57
PULLEY CATCHER HZT/ BS-7078298YP
...
58
Kit, Valve BS-192980GS
...
59
CAP, Fuel Tank BS-846987
...
60
SKID PLATE BS-5045771B
...
61
Panel Decal BS-88949
...
62
Decal-Magnet Housing Warning BS-88865
...
63
Cradle Logo Decal BS-88951
...
64
Cradle Instructions Decal BS-89072
...
66
SAFETY WALK BS-5045757
...
67
CLAMP, Hose 13/32" BS-48031GGS
...
68
Woodruff Key BS-82774
...
69
Fuel Hose BS-82580C
...
70
Screw- 5/16"-18 BS-88289
...
71
NUT, FLANGE LOCK - M6 BS-77395GS
...
72
Conical Washer- M16 BS-83312
...
73
Hex Nut- M16-1.50 BS-81810
...
75
C-Core Inductor BS-93633
...
76
SCREW BS-313085GS

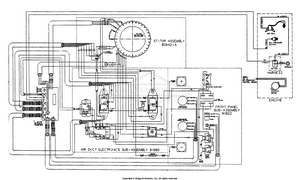

Wiring Diagram

...

No Parts Available for this Schematic

...
...
...
...
...
