9586-0 Briggs and Stratton Portable Generator 3,500 Watt

Model: 9586-0

Save Part Not Listed?
product name

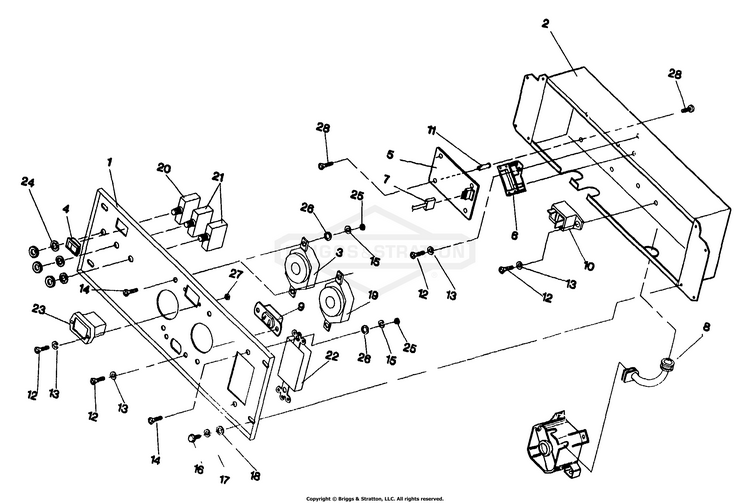

Control Panel Repair Parts No. 88515

...
...
1
Control Panel BS-88243
...
2
Control Box BS-87782
...
3
OUTLET, 120/240V Locking, 20A BS-68867GS
...
4
SWITCH, ROCKER, ON/OFF BS-87968GS
...
5
BOARD, System Control BS-83970GS
...
6
TRANSFORMER, Idle Control BS-84028GS
...
7
ASSEMBLY, Wire Harness BS-84335GS
...
8
GROMMET, Rubber Connector BS-84134GS
...
9
OUTLET, 12Volt DC (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.) BS-66822GS
...
10
CIRCUIT BREAKER, 10A (Automatic), 12V BS-87962GS
...
11
3/4" long Hex Stand-off BS-64525
...
12
SCREW, M3-0.5 x 10mm BS-43181GS
...
13
WASHER, M3 Lock BS-43182GS
...
14
M4-0.7 x 10mm Pan Head Screw BS-75475
...
15
M4 Lock Washer BS-22264
...
16
M5-0.8 x 12mm Pan Head Screw BS-52749
...
17
WASHER, M5 Lock BS-49226GS
...
18
WASHER, Rivet, 3/16 BS-1910531SM
...
19
OUTLET-120V TL30A BS-705932
...
20
BREAKER-CIRCUIT 30A BS-706178
...
21
BREAKER-CIRCUIT 20A BS-209872GS
...
22
RECEPTACLE, Dplx GFCI 20A BS-80409GS
...
23
HOUR METER BS-77604GS
...
24
WASHER, 7/16" Int Lock BS-82881GS
...
25
NUT, M4-0.7 Hex BS-51715GS
...
26
Thumb Control Lever BS-5043180B
...
27
NUT, M3 - 0.5 BS-51714GS
...
28
Self-tapping Screw, #6-32 x 3/8" BS-64526

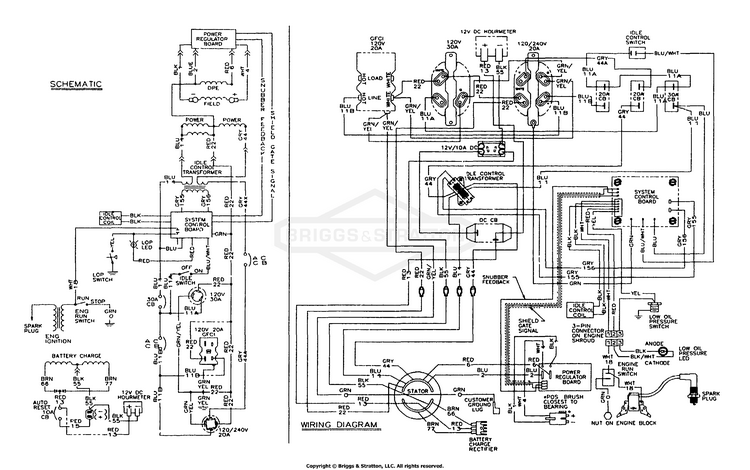

Electrical Schematic and Wiring Diagram No. 88513

...

No Parts Available for this Schematic

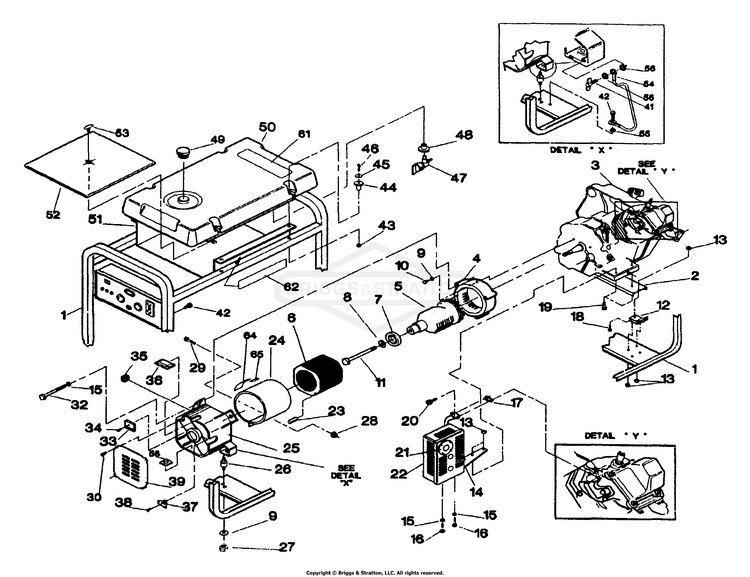

Generator Repair Parts No. 88514

...
...
1
3500 XL Cradle BS-88794
...
2
SUPPORT, Engine BS-B84021GS
...
3
6 HP XL Engine SHT Block BS-83561
...
4
HOUSING, Engine Adapter BS-66365GS
...
5
Rotor Assembly BS-84141
...
6
Stator Assembly BS-83540
...
7
BEARING BS-65791GS
...
8
M8 Flat Washer BS-67451
...
9
WASHER, Lock BS-22129GS
...
10
5/16-24 x 3/4" Capscrew BS-22336
...
11
FLOOR PLATE BS-5047480B
...
12
MOUNT, Vibration BS-84508GS
...
13
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
14
BRACKET, Muffler BS-83208GS
...
15
CAP BS-5022097SM
...
16
SCREW, M6 x 12 BS-43116GS
...
17
GSKT, EXHAUST BS-80314GS
...
18
SCREW BS-70644GS
...
19
TPHMS, M8 - 1.25 x 35 BS-195398GS
...
20
M8-1.25 x 20mm Capscrew BS-40976
...
21
SCREEN, Spark Arrest BS-83083GS
...
22
MUFFLER BS-83071GS
...
23
PIN, ROLL 4MM x 10 BS-81917GS
...
24
Stator Wrap BS-81887B
...
25
Rear Bearing Carrier BS-66825
...
26
MOUNT-VIBRATION BS-194153GS
...
27
SKID PLATE BS-5045771B
...
28
NUT, LOCKING-M5 BS-52856GS
...
29
SCREW, M5 x 0.8 x 12 BS-52618GS
...
30
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
32
M6-1.0 x 115mm Stator Bolt BS-66449E
...
33
RECTIFIER, BATTERY CHARGE BS-65795GS
...
34
SCREW BS-66849AGS
...
35
GROMMET, RUBBER BS-67022GS
...
36
ASSEMBLY, POWER REGULATOR BS-84132GS
...
37
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
38
HHCS, M5-0.8 X 16 BS-49815GS
...
39
Bearing Carrier Cover BS-67025
...
40
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
41
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
42
SCREW BS-313085GS
...
43
NUT, FLANGE LOCK - M6 BS-77395GS
...
44
GROMMET, TANK BS-83465GS
...
45
WSHR, SPCL, BLK BS-78830GS
...
46
M6-1.0 x 60mm Capscrew BS-78831A
...
47
Kit, Valve BS-192980GS
...
48
Kit, Valve BS-192980GS
...
49
GROMMET, Rubber Connector BS-84134GS
...
50
Fuel Tank BS-83311
...
51
Heat Shield BS-84042
...
52
No. 2 1/4" thick insulation BS-84667
...
53
CLIP, INSULATION BS-85000GS
...
54
WIRE, Ground BS-195373GS
...
55
WASHER, #10 Ext. Shakeproof BS-23762GS
...
58
MOUNT, CABLE TIE BS-57593GS
...
61
Start/Danger Decal BS-78992
...
62
Heat Shield Decal BS-88270
...
64
DECAL, DATA, GNRC GEN BS-78817GS
...
65
DECAL, STA-BIL BS-81886GS

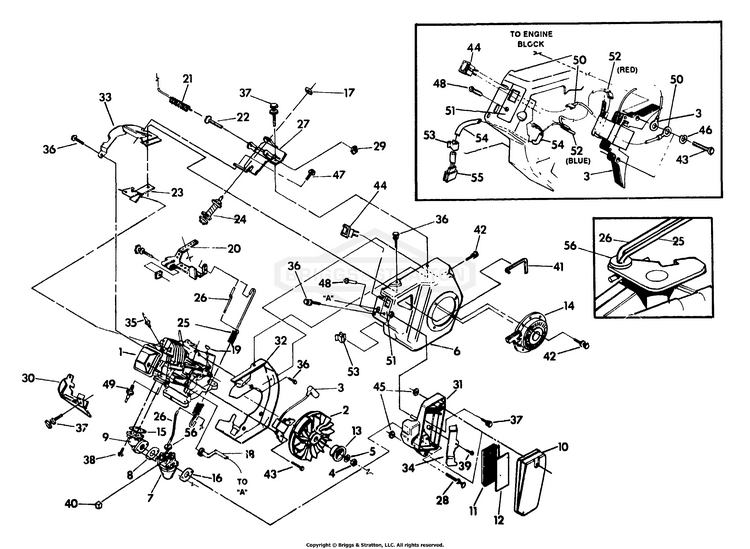

GN-190 Engine 6 HP HS Long Block No. 83784

...
...
1
6 HP HS Long Block BS-83561
...
2
Flywheel Assembly BS-84426A
...
3
Ignition Coil Assembly BS-81675
...
4
M16-1.5 Hex Nut BS-81810
...
5
Conical Washer BS-83312
...
6
Complete Blower Housing BS-85118
...
7
Carburetor HS Assembly BS-83666
...
8
Carburetor/Manifold Gasket BS-78631
...
9
HS Intake Manifold BS-77197
...
10
Air Cleaner Assembly (with bolts) BS-87792
...
11
Air Filter Element BS-84892
...
12
Air Filter Pre-Cleaner BS-78602
...
13
Recoil Cup BS-83015
...
14
Recoil Assembly BS-81671
...
15
Manifold/Head Gasket BS-82776
...
16
Carburetor/Air Cleaner Gasket BS-78632
...
17
M8-1.25 Hex Jam Nut BS-66311
...
18
Breather Hose BS-82755
...
19
4 x 19 Woodruff Key BS-82774
...
20
Governor Lever Assembly BS-86972
...
21
Governor Spring BS-78604
...
22
Governor Adjusting Screw BS-83502
...
23
Air Deflector BS-83198
...
24
Idle Control Coil BS-83782
...
25
Anti-Lash Extension Spring BS-86037
...
26
Governor Rod BS-86384
...
27
Governor Adjust Bracket BS-83781
...
28
Carburetor Mounting Bolt BS-78643
...
29
M5-0.8 Mounting Lock Nut BS-83503
...
30
Bottom Wrapper BS-83197
...
31
Air Cleaner Base BS-78607
...
32
Blower Housing Back Plate BS-78651C
...
33
Top Wrapper BS-83196
...
34
Breather Canal Cover BS-80303
...
35
PLUG, SPARK BS-84007216
...
36
M6-1.0 x 10mm Taptite Bolt BS-45756
...
37
SCREW, M6-1 x 12 w/Lock Washer BS-66476GS
...
38
M6-1.0 x 30mm Capscrew with lock washer BS-80316
...
39
No. 8 x 3/8" Plastite Screw BS-59635
...
40
Choke Lever Knob BS-83504
...
41
Air Cleaner/Blower Housing Seal BS-84867
...
42
M6-1.0 x 10mm Capscrew with lock washer BS-81668
...
43
M6-1.0 x 30mm Taptite Bolt BS-82981
...
44
SWITCH, Run - Stop BS-78653GS
...
45
NUT, M6 BS-49813GS
...
46
CAP BS-5022097SM
...
47
Screw, M8 1.25 x 15, Taptite BS-83512GS
...
48
Low Oil Indicator LED BS-85272
...
49
8-12 psi Oil Pressure Switch BS-60108
...
50
Ground Wire Assembly BS-00285271
...
51
LOS Engine Decal BS-84195
...
52
Ignition Wire Assembly BS-00185271
...
53
Cable Tinnerman Clamp BS-84274
...
54
No. 3, 145mm Sleeving BS-85620
...
55
3-pin, Male Housing BS-84329
...
56
Carburetor Wear Washer BS-85953
