9551-0 Briggs and Stratton Portable Generator 2,200 XL

Model: 9551-0

Back To Assemblies

Save Part Not Listed?
product name

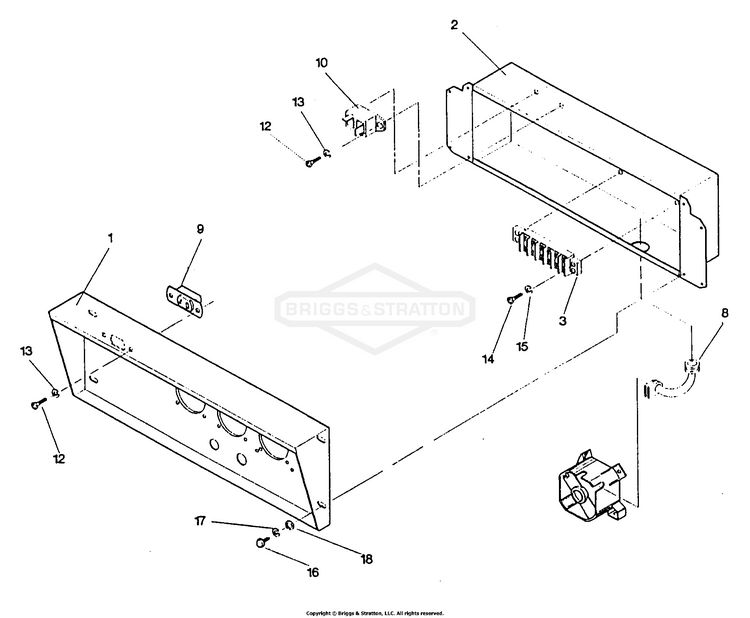

Control Panel

...
...
1
Control Panel BS-88653
...
2
Control Panel Box BS-88654
...
3
DECAL, WARNING BS-7046357YP
...
8
GROMMET, Rubber Connector BS-84134GS
...
9
OUTLET, 12Volt DC (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.) BS-66822GS
...
10
CIRCUIT BREAKER, 10A (Automatic), 12V BS-87962GS
...
12
SCREW, M3-0.5 x 10mm BS-43181GS
...
13
WASHER, M3 Lock BS-43182GS
...
14
M4-0.7 x 16mm Pan Head Screw BS-76055
...
15
M4 Lock Washer BS-22264
...
16
M5-0.8 x 12mm Pan Head Screw BS-52749
...
17
WASHER, M5 Lock BS-49226GS
...
18
WASHER, Rivet, 3/16 BS-1910531SM
