9528-0 Briggs and Stratton Portable Generator 5,000 Watt

Model: 9528-0

Save Part Not Listed?
product name

Popular Parts

Popular Parts

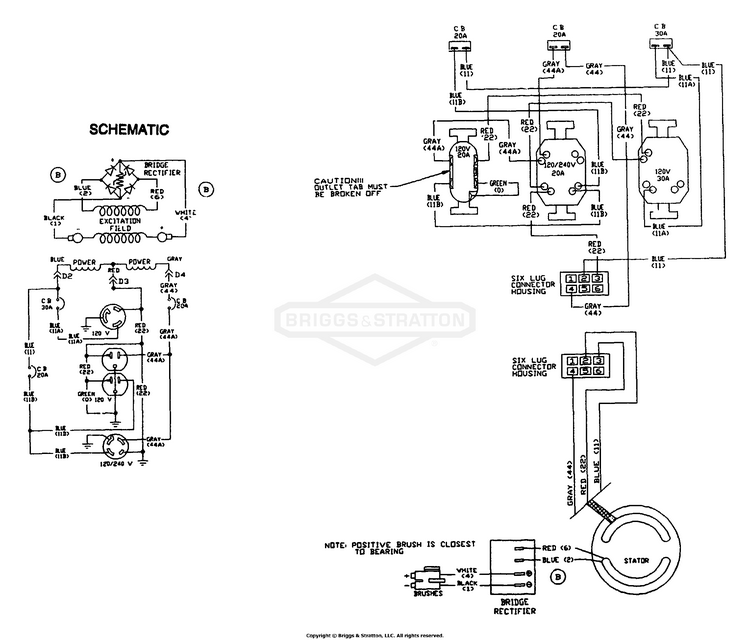

Electrical Data No. 81899

...

No Parts Available for this Schematic

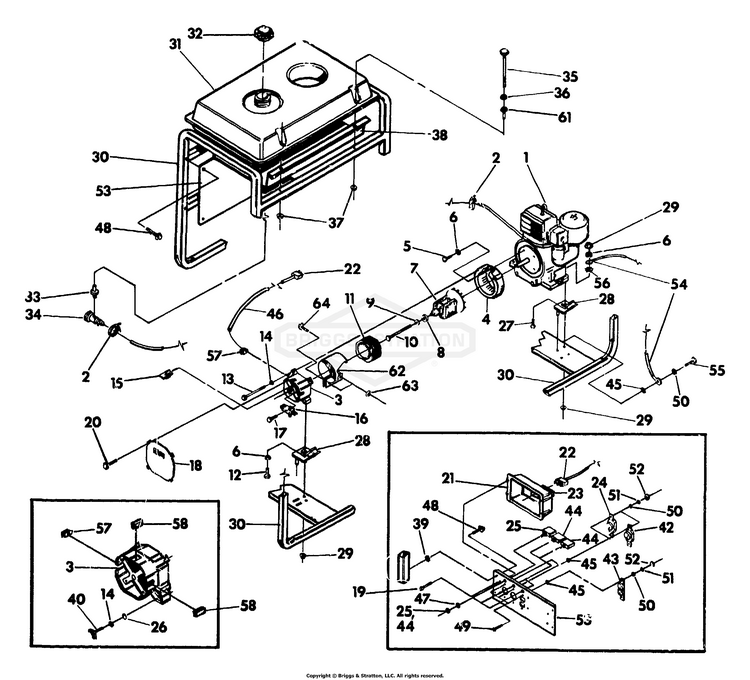

SP-5000 AC Generator No. 86816

...
...
1
Tecumseh 10 H.P. Engine LOS BS-82335
...
2
1/4" Hose Clamp BS-48031C
...
3
Rear Bearing Carrier BS-66825B
...
4
ADPTR, HSNG, 8 HP BS-66365DGS
...
5
5/16"-24 x 3/4" Screw BS-22336
...
6
WASHER, Lock BS-22129GS
...
7
Rotor Assembly BS-74716
...
8
BEARING BS-65791GS
...
9
Special Washer BS-67451
...
10
CAPSCREW, Hex Head BS-75431GS
...
11
Stator Assembly BS-79636
...
12
SCREW BS-70644GS
...
13
M6-1.0 x 130mm Bolt BS-66449D
...
14
CAP BS-5022097SM
...
15
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
16
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
17
HHCS, M5-0.8 X 16 BS-49815GS
...
18
Bearing Carrier Cover BS-67025
...
19
SCREW, Self Tapping, STC 3 x 18 BS-82308GS
...
20
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
21
PANEL, Control, Back, Plastic BS-81919GS
...
22
FASTEN, On Tab Housing 6P BS-22695GS
...
23
HOUSING, Receptacle BS-22694GS
...
24
OUTLET-120V TL30A BS-705932
...
25
BREAKER-CIRCUIT 30A BS-706178
...
26
WASHER BS-22447GS
...
27
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
28
MOUNT, Vibration 45°. BS-70642GS
...
29
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
30
Cradle Assembly BS-87105
...
31
Fuel Tank BS-77374
...
32
GAUGE, FUEL, 5GL PLSTC BS-84510GS
...
33
Plastic Tank Bushing BS-80269
...
34
Kit, Valve BS-192980GS
...
35
M6-1.0 x 60mm Hex Screw BS-78831A
...
36
WSHR, SPCL, BLK BS-78830GS
...
37
NUT, FLANGE LOCK - M6 BS-77395GS
...
38
HTSHLD, SP-4000W BS-84324GS
...
39
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
40
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
42
OUTLET, 120/240V Locking, 20A BS-68867GS
...
43
OUTLET, 20A,120V BS-68759GS
...
44
BREAKER-CIRCUIT 20A BS-209872GS
...
45
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
46
Flexo Sleeving BS-84409
...
47
WASHER, 7/16" Int Lock BS-82881GS
...
48
Self-drilling Screw BS-75494
...
49
M4-0.7 x 10mm Screw BS-75475
...
50
WASHER BS-38150GS
...
51
No. 8 Lock Washer BS-22264
...
52
NUT, M4-0.7 Hex BS-51715GS
...
53
Control Panel BS-81897
...
54
Ground Wire BS-10953621
...
55
TRILOBLAR, 8-32 x 3/8 BS-24911GS
...
56
WASHER, 5/16" Ext. Shakeproof BS-27482GS
...
57
GROMMET, RUBBER BS-67022GS
...
58
GROMMET, Plastic RBC BS-84242GS
...
61
GROMMET, TANK BS-83465GS
...
62
Alternator Wrapper BS-81887C
...
63
NUT, LOCKING-M5 BS-52856GS
...
64
SCREW, M5 x 0.8 x 12 BS-52618GS
