product name

9441-3 Briggs and Stratton Portable Generator 3,500 XL, 3,500 Watt (9/95)

Model: 9441-3

Save Part Not Listed?
product name

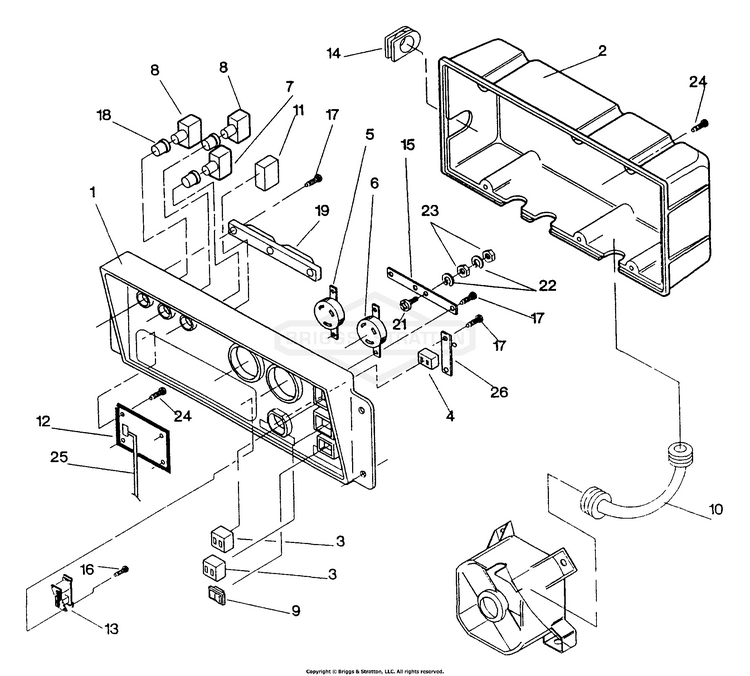

Control Panel Revision 1 (9/25/95)

...
...
1
PANEL, Control BS-83976GS
...
2
BOX, Control BS-83975GS
...
3
OUTLET, 120 V AC, 15 A Duplex BS-66818GS
...
4
OUTLET, 12 V DC BS-66821GS
...
5
OUTLET, 120/240 V AC, 20 A Locking BS-68867CGS
...
6
OUTLET-120V TL30A BS-705932
...
7
BREAKER-CIRCUIT 30A BS-706178
...
8
BREAKER, Circuit BS-75207GGS
...
9
SWITCH, Idle Control BS-82538GS
...
10
GROMMET, Rubber Connector BS-84134GS
...
11
BREAKER, Circuit BS-83514GS
...
12
BOARD, System Control BS-83970GS
...
13
TRANSFORMER, Idle Control BS-84028GS
...
14
GROMMET, RUBBER BS-67022GS
...
15
BAR, Bus BS-85584GS
...
16
SCREW BS-84543AGS
...
17
SCREW, Phillips, Head 3.5 x 18 BS-84543CGS
...
18
CAP, Breaker, Circuit BS-84198GS
...
19
BAR, Circuit Breaker Retaining BS-84197GS
...
21
PPHMS, M4-0.7 x 16 BS-75476GS
...
22
M4 Lock Washer BS-22264
...
23
NUT, M4-0.7 Hex BS-51715GS
...
24
SCREW BS-84543BGS
...
25
ASSEMBLY, Wire Harness BS-84335GS
...
26
BAR, DC Outlet Retaining BS-82542GS

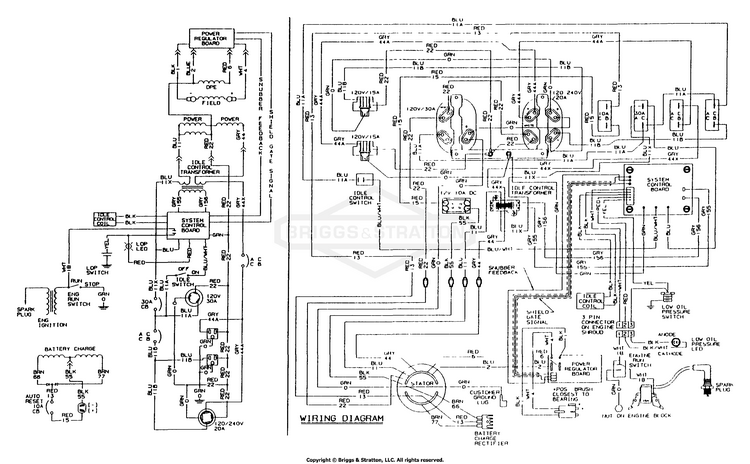

Electrical Data Revision 1 (9/25/95)

...

No Parts Available for this Schematic

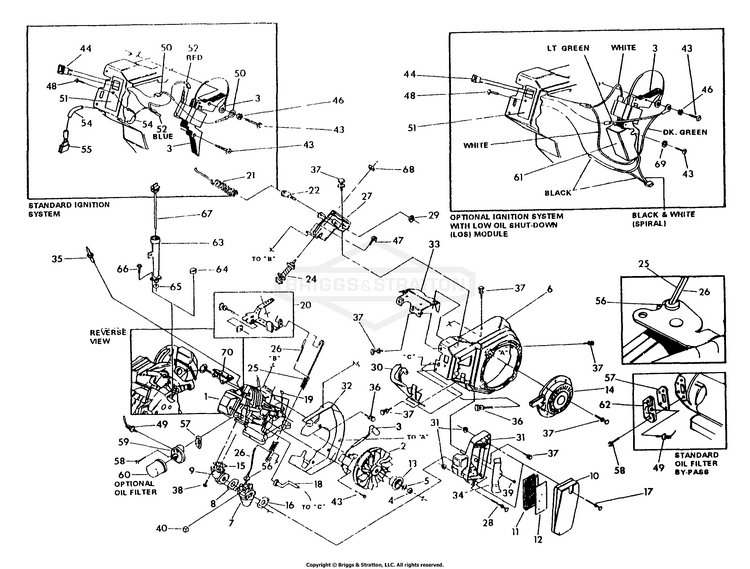

Engine Trim Parts Revision 1 (9/25/95)

...
...
1
Straight Shaft BS-90508
...
2
Flywheel Assembly BS-77182E
...
3
Ignition Coil Assembly BS-81675
...
4
M16-1.5 Hex Nut BS-81810
...
5
Conical Washer BS-83312
...
6
Complete Blower Housing BS-90695A
...
7
Carburetor Assembly BS-90876
...
8
Carburetor/Manifold Gasket BS-78631
...
9
HS Intake Manifold BS-90948
...
10
Air Cleaner Cover BS-78608
...
11
FILTER,Air BS-78601GS
...
12
Air Filter Pre-Cleaner BS-78602
...
13
Recoil Cup BS-83015
...
14
Recoil Assembly BS-81671
...
15
Manifold/Head Gasket BS-90051
...
16
Carburetor/Air Cleaner Gasket BS-91846
...
17
Bolt - Air Cleaner Cover BS-78609
...
18
BOLT, Carriage, Short Neck, 1/4-20 x 1-3/8 BS-7090947YP
...
19
4 x 19 Woodruff Key BS-82774
...
20
Governor Lever Assembly BS-86962
...
21
Governor Spring BS-78604
...
22
Governor Adjusting Screw BS-83502
...
24
Idle Control Coil BS-83782
...
25
Anti-Lash Extension Spring BS-86037
...
26
Governor Rod BS-86384
...
27
Governor Adjust Bracket BS-83781
...
28
Carburetor Mounting Bolt BS-78643
...
29
M5-0.8 Mounting Lock Nut BS-83503
...
30
Bottom Wrapper BS-89739
...
31
Air Cleaner Base BS-78607
...
32
Blower Housing Back Plate BS-78651C
...
33
SCREW BS-691061
...
34
Breather Canal Cover BS-80303
...
35
PLUG, SPARK BS-84007216
...
36
M6-1.0 x 10mm Taptite Bolt BS-45756
...
37
SCREW, M6-1 x 12 w/Lock Washer BS-66476GS
...
38
M6-1.0 x 30mm Capscrew with lock washer BS-80316
...
39
No. 8 x 3/8" Plastite Screw BS-59635
...
40
Choke Lever Knob BS-83504
...
43
M6-1.0 x 30mm Taptite Bolt BS-82981
...
44
SWITCH, Run - Stop BS-78653GS
...
46
CAP BS-5022097SM
...
47
Screw, M8 1.25 x 15, Taptite BS-83512GS
...
48
Low Oil Indicator LED BS-85272
...
49
4 psi Oil Pressure Switch BS-77667
...
50
Ground Wire Assembly BS-00285271
...
51
LOS Engine Decal BS-84195
...
52
Ignition Wire Assembly BS-00185271
...
54
No. 3, 145mm Sleeving BS-85620
...
55
3-pin, Male Housing BS-84329
...
56
Carburetor Wear Washer BS-85953
...
57
FITTING 3/8 NPT MALE BS-7091848YP
...
58
M6-1.0 x 20mm Screw BS-92978
...
59
Oil Filter Adaptor (MC series) BS-84982
...
60
FILTER, Oil (Optional) BS-70185GS
...
61
ASSY, MDLTR/HRNSS, LOS (Optional) BS-87221AGS
...
62
By-pass Adaptor (Optional) BS-88758
...
63
Oil Fill Tube (Optional) BS-91041
...
64
Expansion Plug BS-94820
...
65
CLEVIS PIN BS-7079831YP
...
66
T-NUT 5/16C BS-7090388YP
...
67
Oil Fill Dipstick (Optional) BS-91475
...
68
JAM-M8-1.25 Hex Nut BS-66311
...
69
WASHER BS-49811GS
...
70
Fuel Tank Bracket (Optional) BS-95213

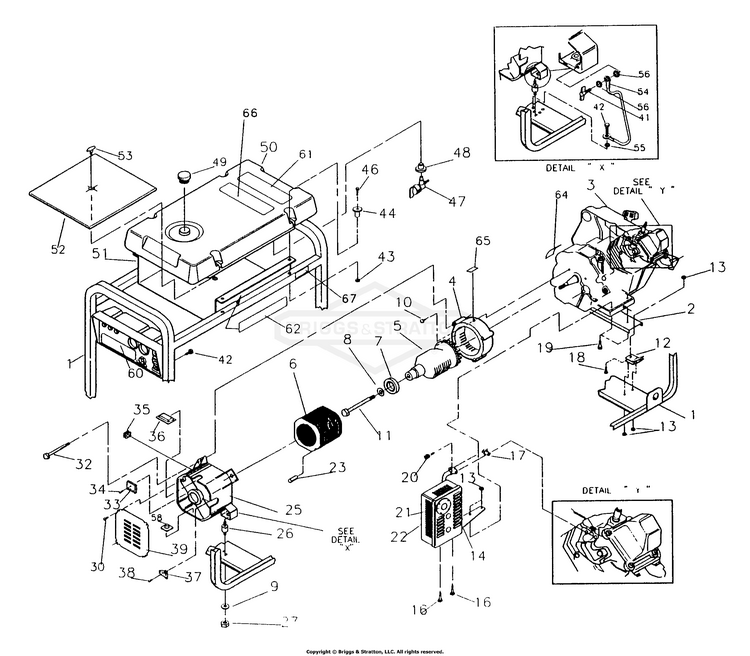

Generator Revision 1 (9/25/95)

...
...
1
3500 XL Cradle BS-83533
...
2
SUPPORT, Engine BS-B84021GS
...
3
6 HP XL Engine BS-83232
...
4
HOUSING, Engine Adapter BS-66365GS
...
5
Rotor Assembly BS-84141
...
6
Stator Assembly BS-83540
...
7
BEARING BS-65791GS
...
8
M8 Flat Washer BS-67451
...
9
WASHER, Lock BS-22129GS
...
10
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
11
FLOOR PLATE BS-5047480B
...
12
MOUNT, Vibration BS-84508GS
...
13
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
14
BRACKET, Muffler BS-83208GS
...
16
M6-1.0 x 12mm Capscrew BS-86309
...
17
GSKT, EXHAUST BS-80314GS
...
18
SCREW BS-70644GS
...
19
TPHMS, M8 - 1.25 x 35 BS-195398GS
...
20
M8-1.25 x 20mm Capscrew BS-40976
...
21
SCREEN, Spark Arrest BS-83083GS
...
22
MUFFLER BS-83071GS
...
23
PIN, ROLL 4MM x 10 BS-81917GS
...
24
Stator Wrap BS-81887B
...
25
Rear Bearing Carrier BS-66825
...
26
MOUNT-VIBRATION BS-194153GS
...
27
SKID PLATE BS-5045771B
...
28
NUT, LOCKING-M5 BS-52856GS
...
29
SCREW, M5 x 0.8 x 12 BS-52618GS
...
30
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
32
HHCS, M6 - 1.0 x 115 SEMS BS-86308GS
...
33
RECTIFIER, BATTERY CHARGE BS-65795GS
...
34
SCREW BS-66849AGS
...
35
GROMMET, RUBBER BS-67022GS
...
36
ASSEMBLY, POWER REGULATOR BS-84132GS
...
37
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
38
HHCS, M5-0.8 X 16 BS-49815GS
...
39
Bearing Carrier Cover BS-67025
...
40
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
41
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
42
SCREW BS-313085GS
...
43
NUT, FLANGE LOCK - M6 BS-77395GS
...
44
GROMMET, TANK BS-83465GS
...
46
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS
...
47
Kit, Valve BS-192980GS
...
48
Plastic Tank Bushing BS-80269
...
49
Fuel Cap BS-84582
...
50
Fuel Tank BS-83311
...
51
Heat Shield BS-84042
...
52
INSULATION BS-84687GS
...
53
CLIP, INSULATION BS-85000GS
...
54
Ground Wire BS-1435362
...
55
WASHER, #10 Ext. Shakeproof BS-23762GS
...
58
MOUNT, CABLE TIE BS-57593GS
...
60
Control Panel Decal BS-84679
...
61
Start/Danger Decal BS-78992
...
62
Heat Shield Decal BS-84678
...
64
DECAL, DATA, GNRC GEN BS-78817GS
...
65
DECAL, STA-BIL BS-81886GS
