9412-0 Briggs and Stratton Portable Generator 3,500 CCG

Model: 9412-0

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

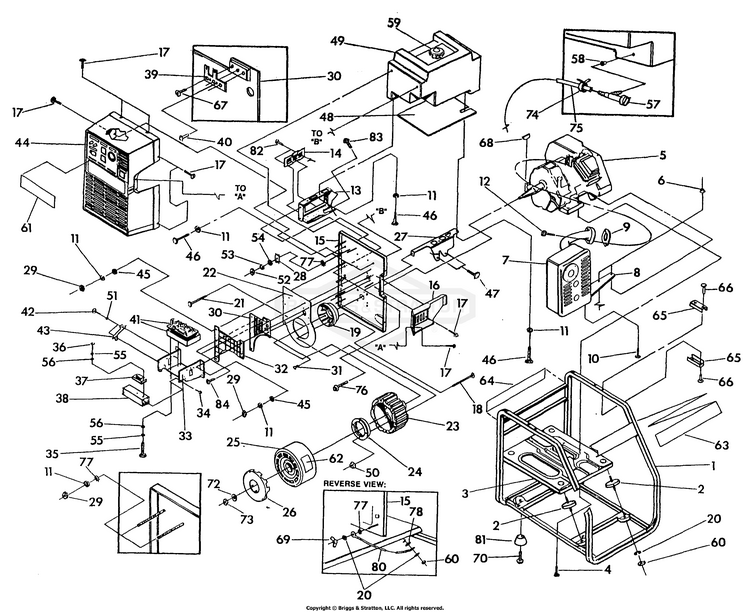

Generator

...
...
1
Cradle Assembly BS-87994
...
2
Vibration Mounts BS-88543
...
3
ASSY, BASE BS-82548GS
...
4
HHCS, M8-1.25 X 55 BS-39288GS
...
5
6 HP Engine BS-84623
...
6
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
7
MUFFLER BS-83071GS
...
8
BRACKET, Muffler BS-83208GS
...
9
GSKT, EXHAUST BS-80314GS
...
10
SCREW, M6-1 x 12 w/Lock Washer BS-66476GS
...
11
CAP BS-5022097SM
...
12
M8-1.25 x 20mm Capscrew (Torque nut to 200 inch-pounds) BS-40976
...
13
Rear Fuel Tank Bracket BS-83114
...
14
DECAL PARK BRAKE BS-7075812YP
...
15
DIVIDER, ENG/PNL, CNTRL BS-82540GS
...
16
Air Muffler Duct BS-86658
...
17
TAPTITE, M4 -12 SEMS BS-88540GS
...
18
M6-1.0 x 90mm Capscrew BS-53410
...
19
Engine Housing Adaptor BS-80935
...
20
WASHER, Lock BS-22129GS
...
21
HHMS, 5/16-24 x 3/4 LG. SEMS (Torque to 180 inch-pounds) BS-86307GS
...
22
INSLTR, STATOR LEADS BS-86279GS
...
23
Stator Assembly BS-83681
...
24
Retainer Ring BS-80934
...
25
Magnet Housing Assembly BS-90013
...
26
Magnet Housing Fan BS-80933
...
27
Front Fuel Tank Bracket BS-83113
...
28
RECTIFIER, BATTERY CHARGE BS-65795GS
...
29
NUT, M6 BS-49813GS
...
30
Bottom Lead Wire Shield BS-86091
...
31
Rivet BS-86471
...
32
Top Lead Wire Shield BS-86092
...
33
BRCKT, MNTNG, PCB BS-82537GS
...
34
TAPTITE, M5-0.8 X 8 BS-66849BGS
...
35
DECK LIFT PIVOT-LH BS-5045767B
...
36
PPHMS, M4-0.7 x 16 BS-75476GS
...
37
Triac Module BS-86275
...
38
Controller Extrusion BS-80939
...
39
Buss Bar BS-86277
...
40
No. 2-28 x 1/4" Pushtite Screw BS-86469
...
41
Circuit Board Container Assm. BS-83492
...
42
SCREW, M3-0.5 x 10mm BS-43181GS
...
43
50 watt, 500 ohm Resistor BS-83491
...
44
Control Panel BS-87982
...
46
WELD JOYSTICK PIVOT (Torque to 140 inch-pounds) BS-7053995YP
...
47
M8 x 52mm HD Bolt (Torque to 300 inch-pounds) BS-77168
...
48
(C) PUMP, HYDRO-GEAR BS-7075709YP
...
49
TANK, FUEL BS-88780GS
...
50
NUT-M6 FLANGE (Torque to 140 inch-pounds) BS-52857GS
...
51
WASHER, M3 Lock BS-43182GS
...
52
NUT, M5 x 0.8 BS-51716GS
...
53
WASHER, M5 Lock BS-49226GS
...
54
WASHER, Rivet, 3/16 BS-1910531SM
...
55
M4 Lock Washer BS-22264
...
56
M4 Flat Washer BS-22985
...
57
Kit, Valve BS-192980GS
...
58
Kit, Valve BS-192980GS
...
59
CAP, Fuel Tank BS-846987
...
60
SKID PLATE BS-5045771B
...
61
DECAL, PNL, CNTRL BS-88864GS
...
62
Decal - Magnet HSG Warning BS-88855
...
63
DECAL, LOGO, CRDL BS-88863GS
...
64
DECAL, INSTRCTN, CRDL BS-88862GS
...
65
Cradle Handle BS-66450
...
66
4mm Rivet BS-66831
...
67
M4-0.7 x 6mm Capscrew BS-89541
...
68
4mm x 19mm Woodruff Key BS-82774
...
69
SCREW, Wing BS-87680GS
...
70
5/16"-18 Crimptite Screw BS-69252
...
72
M16 Conical Washer BS-83312
...
73
M16-1.5 Hex Nut (Torque nut to 700 inch-pounds) BS-81810
...
74
CLAMP, Hose 13/32" BS-48031GGS
...
75
Fuel Hose BS-82580C
...
76
M6-1.0 x 10mm Taptite Screw BS-45756
...
78
WASHER, 5/16" Ext. Shakeproof BS-27482GS
...
80
Cradle Ground Strap BS-15253621
...
81
MOUNT, Rubber Donut BS-87841GS
...
82
Rivet BS-89556
...
83
Screw, M8 1.25 x 15, Taptite BS-83512GS
...
84
Plastite Screw BS-83291
