9387-0 Briggs and Stratton Portable Generator S3000; 3,000 Watt (Revised)

Model: 9387-0

Save Part Not Listed?
product name

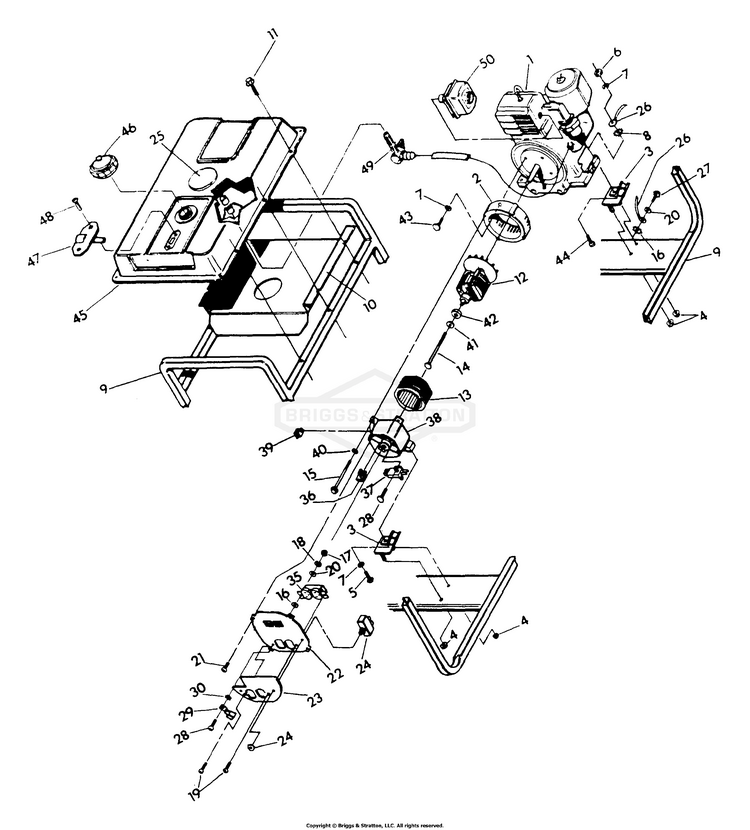

Cradle And Stator (10/95)

...
...
1
5 - HP Briggs & Stratton Engine BS-82722
...
2
HSNG, ENG, FML BS-66365FGS
...
3
MOUNT, Vibration 45°. BS-70642GS
...
4
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
5
SCREW BS-70644GS
...
6
SKID PLATE BS-5045771B
...
7
WASHER, Lock BS-22129GS
...
8
WASHER, 5/16" Ext. Shakeproof BS-27482GS
...
9
Cradle BS-78821
...
10
Heat Shield BS-78956
...
11
No. 10 Self Drilling Screw BS-75494
...
12
Rotor Assembly BS-74713
...
13
Stator Assembly BS-77258
...
14
5/16" - 24 x 6-1/4" Rotor Bolt BS-24420
...
15
M6-1.0 x 80mm Stator Bolt BS-66449C
...
16
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
17
NUT, M4-0.7 Hex BS-51715GS
...
18
No. 8 Lock Washer BS-22264
...
19
M4-0.7 x 10mm Pan Head Screw BS-75475
...
20
WASHER BS-38150GS
...
21
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
22
(C) WELD SEAT SUPPOR BS-7072092YP
...
23
Decal BS-82852
...
24
BRKR, CRCT, 20A, 2P BS-77247GS
...
25
CVR, ACC, SPARKPLUG BS-64680BGS
...
26
Ground Wire BS-10953621
...
27
TRILOBLAR, 8-32 x 3/8 BS-24911GS
...
28
HHCS, M5-0.8 X 16 BS-49815GS
...
29
Grounding Lug BS-25433
...
30
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
35
OUTLET, 20A,120V BS-68759GS
...
36
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
37
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
38
Rear Bearing Carrier BS-66825
...
39
GROMMET, RUBBER BS-67022GS
...
40
CAP BS-5022097SM
...
41
Special M8 Flat Washer BS-67451
...
42
BEARING BS-65791GS
...
43
5 1/6" - 24 x 3/4" Hex Screw BS-22336
...
44
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
45
(C) BEARING PNEUMAT BS-7077353YP
...
46
CAP, TANK, FUEL, KELCH BS-76280GS
...
47
Fuel Level Gauge BS-66391B
...
48
M5-0.8 x 12mm Pan Head Screw BS-52749
...
49
Shutoff Valve BS-75938
...
50
AIR LIFT KIT, EURO 21 BS-7061782YP

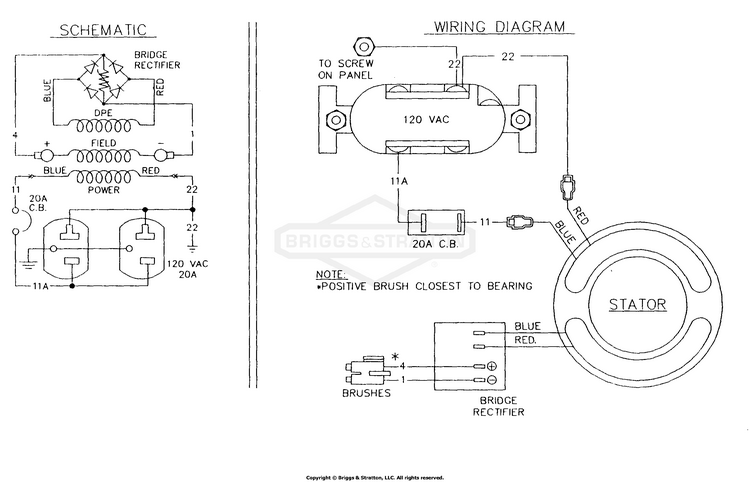

Electrical Schematic & Wiring Diagram (10/95)

...

No Parts Available for this Schematic
