9298-0 Briggs and Stratton Portable Generator T4000, 4,000 Watt

Model: 9298-0

Save Part Not Listed?

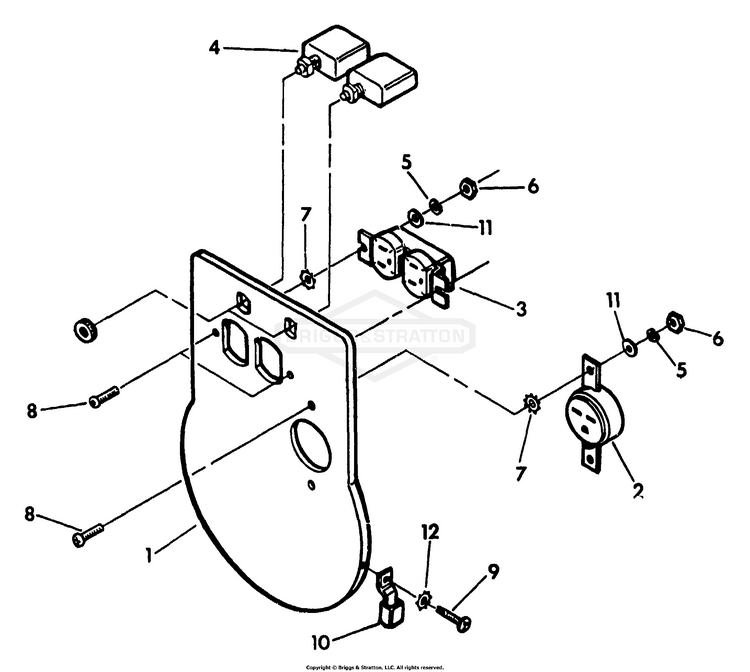

Control Panel No. 78804

PANEL, RECEPTACLE-SILKSCREENED BS-75981

OUTLET, 250V 15A PBG-CSA APP BS-77249GS

OUTLET, Duplex, 120 V, 15 A BS-63025GS

BREAKER, Circuit BS-75207DGS

WASHER, LOCK-M4 BS-22264

NUT, M4-0.7 Hex BS-51715GS

TIRE ASSM, 24X12.00-1 BS-5023365YP

SCREW, PAN HEAD MACHINE-M4-0.7 x 10 LONG BS-75475

SCREW (TAPTITE)-NO. 10-32 x 3/8" BS-24489

LUG, GROUNDING BS-25433

WASHER BS-38150GS

WASHER, SHAKE PROOF INT.# 10 BS-22769GS

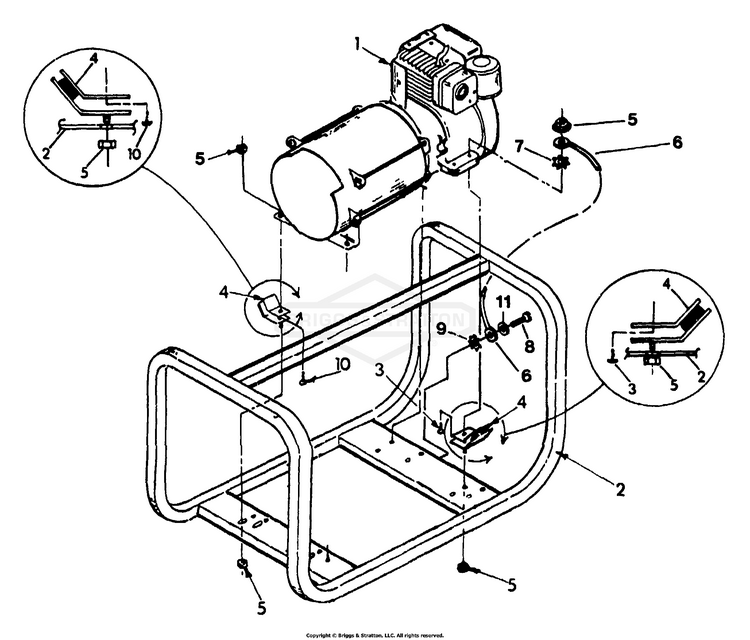

Engine and Cradle No. 78816

ENGINE-BRIGGS & STRATTON 8HP. BS-76516

CRADLE BS-75987

PPHMS, M8 - 1.25 x 40 BS-76222GS

MOUNT, Vibration 45°. BS-70642GS

NUT, Locking Hex M8 - 1.25 BS-52858GS

GROUND WIRE-4" LONG BS-10953621

WASHER, 5/16" Ext. Shakeproof BS-27482GS

TRILOBLAR, 8-32 x 3/8 BS-24911GS

TIRE ASSM, 24X12.00-1 BS-5023365YP

SCREW BS-70644GS

WASHER BS-38150GS

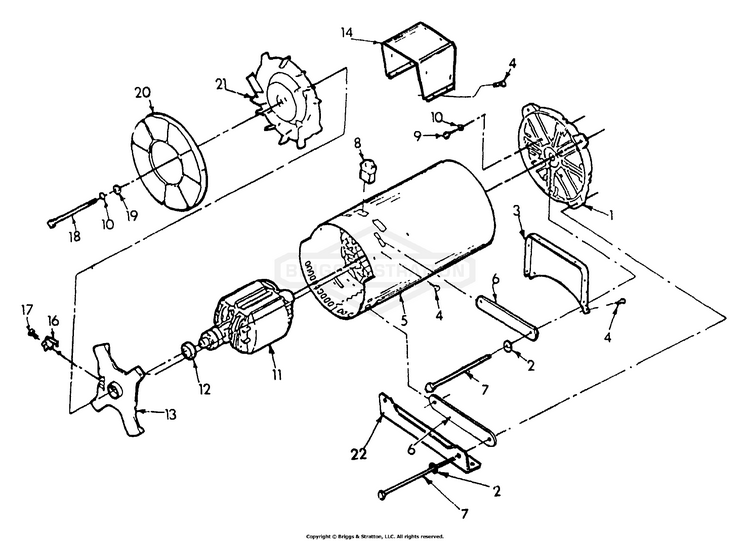

Generator No. 78825

HOUSING, ENGINE ADAPTOR BS-43873

CAP BS-5022097SM

SCREW (TAPTITE)-NO. 10-32 x 3/8" BS-24489

STATOR ASSEMBLY BS-75985

BAR, STATOR BOLT BS-44338

BOLT, STATOR BS-44395E

RECTIFIER ASSEMBLY, BRIDGE BS-79569

CAPSCREW, HEX HEAD-5/16"-24 x 3/4" BS-22336

WASHER, Lock BS-22129GS

ROTOR ASSEMBLY BS-75986

BEARING, ROTOR BS-24049

CARRIER, BEARING BS-44943

SHROUD, PANEL BS-75971

BRUSH HOLDER ASSEMBLY BS-44723

PRHMS, 6-32 x 1/4 SEMS BS-25105GS

CAPSCREW, Hex Head BS-75431GS

Washer, .34 x 1 x 10 BS-50190GS

CVR, FAN, PLSTC BS-44357GS

FAN, COOLING BS-44331

SUPPORT, ALTERNATOR BS-77701A

Wiring Diagram

No Parts Available for this Schematic
