9216-0 Briggs and Stratton Portable Generator 5,000 Watt

Model: 9216-0

Save Part Not Listed?
product name

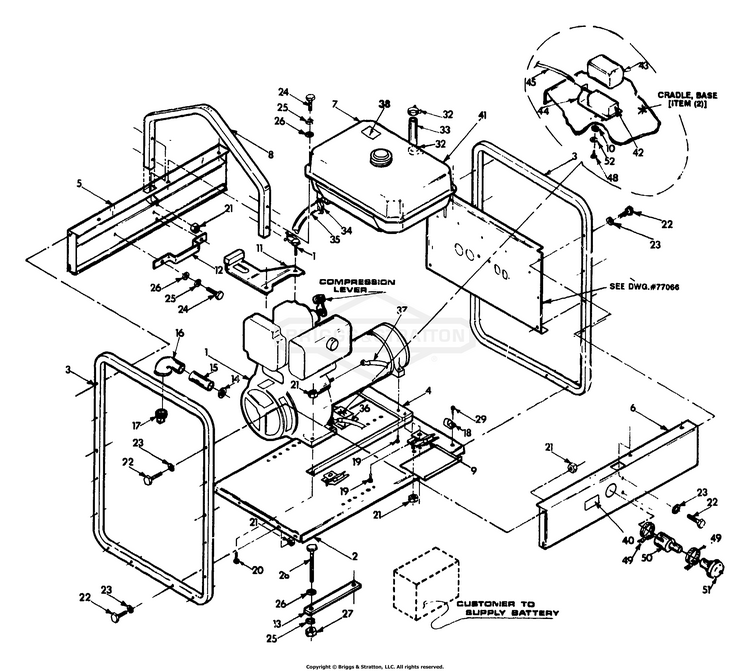

Cradle Assembly

...
...
1
Engine Assembly -- Yanmar Model L90e-dge BS-77637
...
2
Cradle Base BS-71873
...
3
Cradle Loop BS-71876
...
4
Sub-base BS-73527
...
5
Right Hand Fuel Tank Support BS-71874
...
6
Lefthand Fuel Tank Support BS-71877
...
7
TANK, FUEL BS-71886GS
...
8
Lifting Bracket BS-70708
...
9
MOUNT, Vibration 45°. BS-70642GS
...
10
No. 4 Washer BS-31879
...
11
DECAL WARNING BS-7073504YP
...
12
Bracket Retainer BS-71885
...
13
CONTROL, Hydro, Right BS-5044951B
...
14
Seal Washer BS-29910
...
15
Oil Drain Extension BS-73536
...
16
90-degree Street Elbow BS-29296
...
17
1/4" Pipe Plug BS-26073A
...
18
Grounding Lug BS-25433
...
19
CAPSCREW M8-1.25X16 BS-703988
...
20
HHCS, M8 - 1.25 x 35 BS-39414GS
...
21
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
22
M8- 1.25 x 45mm Hex Head Capscrew BS-39827
...
24
1/4"-20 x 1/2" Hex Head Capscrew BS-53395
...
25
CAP BS-5022097SM
...
27
1/4-20 Hex Nut BS-22127
...
28
HHCS, 1/4-20 X 7 BS-45000GS
...
29
No. 10 x 3/8" Screw BS-24489
...
30
SCREW BS-58443GS
...
32
CLAMP, Hose Band BS-48031BGS
...
33
6" Long Fuel Line BS-73530
...
34
Hose Clamp BS-48031D
...
35
3/8" Dia. x 14-1/2" Long Fuel Hose BS-52220C
...
36
No. 4 Awg x 20" Long Wire Assembly BS-4411419
...
37
No. 4 Awg x 9" Long Wire Assembly BS-4411465
...
38
Fuel Shutoff Decal BS-73054A
...
39
"Danger -- Warning" Decal BS-39178
...
40
DECAL, Hot Muffler BS-77816GS
...
41
Decal BS-72079
...
42
Solenoid BS-77071
...
43
Solenoid Boot BS-77070
...
44
Solenoid Bracket BS-77074
...
45
Cable BS-77072
...
48
ASSEMBLY, Slider BS-7050711YP
...
49
No. 20 Hose Clamp BS-35586
...
50
Spark Arrestor Adaptor BS-77097
...
51
(C) GUARD BELT BS-7077096YP
...
52
PULLEY, PUMP DRIVE BS-5022155SM

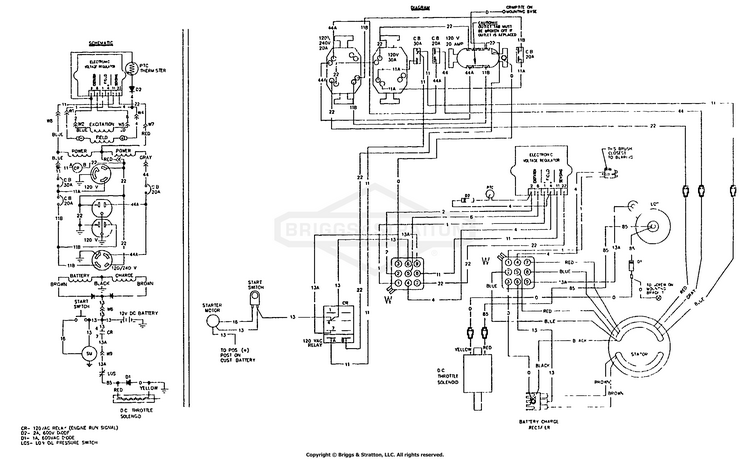

Electrical Schematic & Wiring Diagram

...

No Parts Available for this Schematic

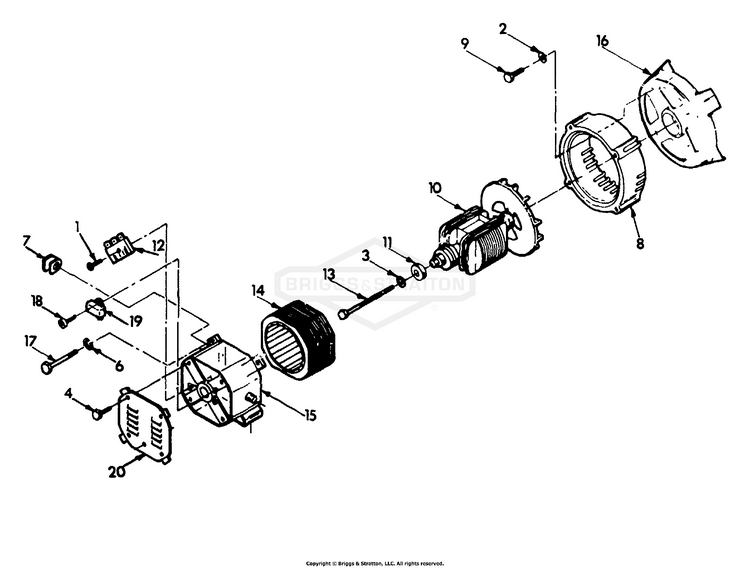

Generator

...
...
1
SCREW BS-66849AGS
...
2
WASHER, Lock BS-22129GS
...
3
Special M8 Flat Washer BS-67451
...
4
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
6
CAP BS-5022097SM
...
7
GROMMET, RUBBER BS-67022GS
...
8
ADPTR, HSNG, 8 HP BS-66365DGS
...
9
5/16-24 x 2-1/2" Hex Screw BS-23564
...
10
Rotor Assembly BS-70418
...
11
BEARING BS-65791GS
...
12
RECTIFIER, BATTERY CHARGE BS-65795GS
...
13
5/16"-24 x 9" Rotor Bolt BS-29024
...
14
Stator Assembly BS-77243
...
15
Rear Bearing Carrier BS-66825
...
16
Adapter Spacer BS-68342
...
17
M6-1.00 x 140mm Stator Bolt BS-66449F
...
18
HHCS, M5-0.8 X 16 BS-49815GS

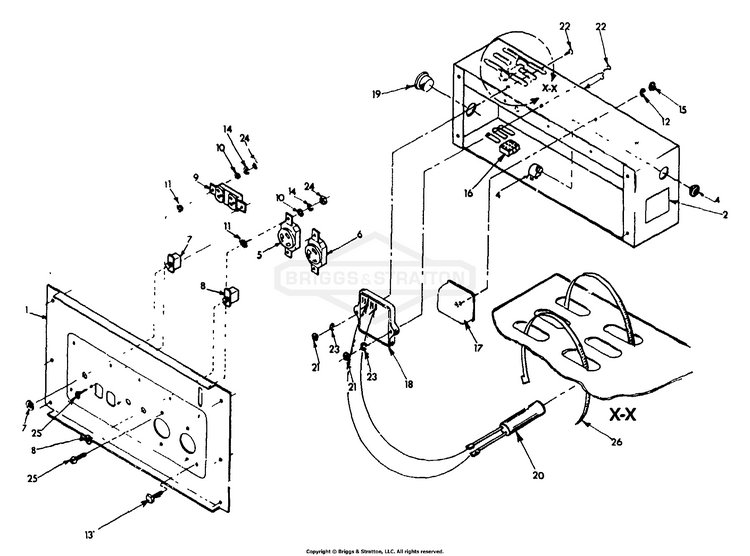

Receptacle Panel

...
...
1
Receptacle Panel BS-77060A
...
2
Start Instructions Decal BS-78850
...
3
Panel Back BS-77064
...
4
Start Switch BS-34303
...
5
OUTLET, 120/240V Locking, 20A BS-68867GS
...
6
OUTLET-120V TL30A BS-705932
...
7
BREAKER-CIRCUIT 20A BS-209872GS
...
8
BREAKER-CIRCUIT 30A BS-706178
...
9
OUTLET, 20A,120V BS-68759GS
...
10
WASHER BS-38150GS
...
11
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
12
PULLEY, PUMP DRIVE BS-5022155SM
...
13
CRIMPTITE, #8-18X1/4L BS-63036GS
...
14
No. 8 Lock Washer BS-22264
...
15
No. 6-32 Hex Nut BS-22188
...
16
9-Pin Connector BS-63993
...
17
CLUTCH LEVER WELD BS-7040604YP
...
18
A-C Voltage Regulator BS-74074
...
19
1-3/4" dia. Button Plug BS-58221
...
20
Field Boost Assembly BS-77244
...
21
CAP, FUEL TANK, 3-1/2 NECK BS-5022158
...
22
No. 10-32 x 1-1/8" Screw BS-33534
...
23
VALVE, FUEL SHUT OFF BS-84010414
...
24
NUT, M4-0.7 Hex BS-51715GS
...
25
M4-0.7 x 10mm Screw BS-75475
...
26
Tie Wrap BS-31980
