9201-0 Briggs and Stratton Portable Generator EC6400, 6,400 Watt

Model: 9201-0

Save Part Not Listed?
product name

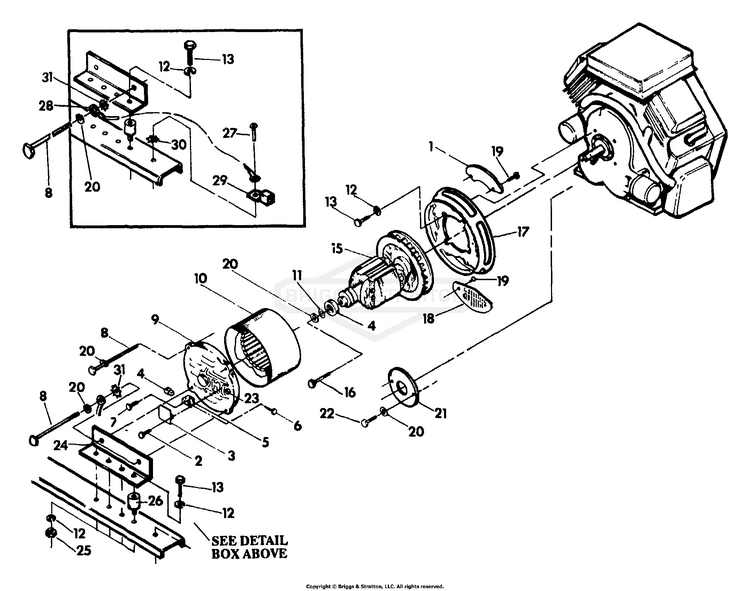

Alternator No. 80836

...
...
1
Cover Plate BS-71791
...
2
No. 8-32 x 1/4" Screw BS-26902
...
3
BELT, 73.75 AA BS-7043844YP
...
4
ASSY, BRUSH BS-A24044AGS
...
5
HLDR, BRUSH, UNIV BS-23877DGS
...
6
PRHMS, 6-32 x 1/4 SEMS BS-25105GS
...
7
No. 8-32 x 5/8" Screw BS-24488
...
8
5/16"-24 x 11-1/2" Capscrew BS-28128
...
9
CARRIER-BEARING BS-49410AGS
...
10
ASSY, STATOR BS-78367GS
...
11
Washer, .34 x 1 x 10 BS-50190GS
...
12
LOCKWASHER, SPLIT 3/8 BS-703454
...
13
WHEEL ASSEMBLY BS-84010756
...
14
Bearing BS-24049
...
15
Rotor Assembly BS-78387
...
16
5/16"-24 x 10-1/8" Capscrew BS-28038
...
17
ADAPTER-ENGINE BS-BB2700GS
...
18
Fan Guard BS-55275
...
19
No. 10-32 x 1/4" Screw BS-46852
...
20
WASHER, Lock BS-22129GS
...
21
Center Guard BS-55277
...
22
5/16"-24 x 3/4" Capscrew BS-22336
...
23
Grommet BS-38057GS
...
24
Alternator Support BS-77303
...
25
DECAL, ProCut Z Text BS-5022241
...
26
MNT, VBRTN, 30 DURO BS-35097GS
...
27
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
28
Ground Wire (#0) BS-11753621
...
29
Solderless Lug BS-25433
...
30
WSHR, SHKPRF, INT 3/8 BS-22261GS
...
31
WSHR, 5/16, INTRNL TOOTH BS-26204GS

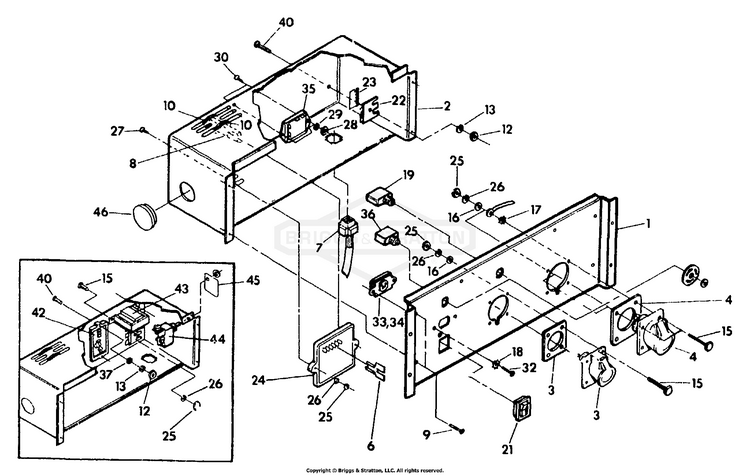

Control Panel No. 80838

...
...
1
Control Panel BS-78378
...
2
Control Panel Cover BS-77315
...
3
230 volts, 16 amp Outlet (blue) BS-79647
...
4
415 volts, 16 amp Outlet (3-phase red) BS-80891
...
6
LUG, 1/4 Tab BS-74094GS
...
7
Connector BS-63993
...
8
Field Boost Assembly BS-77244
...
9
CRIMPTITE, #8-18X1/4L BS-63036GS
...
10
TIEWRAP, 7 LG BLK BS-29333AGS
...
12
NUT, M4-0.7 Hex BS-51715GS
...
13
No. 8 Lock Washer BS-22264
...
15
No. 10-32 x 5/8" Pan Head Machine Screw BS-36934
...
16
WASHER, Rivet, 3/16 BS-1910531SM
...
17
WASHER, #10 Ext. Shakeproof BS-23762GS
...
18
WHEEL, 12 X 8.5 BS-5023364YP
...
19
BREAKER, Circuit BS-75207DGS
...
20
BREAKER-CIRCUIT 30A BS-706178
...
21
SWITCH, ENG, CTRL, ILUM BS-66817GS
...
22
RECTIFIER, BATTERY CHARGE BS-65795GS
...
23
P-248 Electric Tape (38mm long) BS-27565
...
24
A-C Voltage Regulator BS-74074
...
25
CAP, FUEL TANK, 3-1/2 NECK BS-5022158
...
26
VALVE, FUEL SHUT OFF BS-84010414
...
27
No. 10-32 x 1-1/8" Pan Head Machine Screw BS-33534
...
28
No. 6-32 Hex Nut BS-22188
...
29
PULLEY, PUMP DRIVE BS-5022155SM
...
30
SCREW BS-36902GS
...
32
SCREW, M3-0.5 x 10mm BS-43181GS
...
33
OUTLET, 12 V DC BS-66821GS
...
34
OUTLET, 12Volt DC (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.) BS-66822GS
...
35
Thermal Relay BS-77314
...
36
BRKR, CRCT, 10A BS-75207BGS
...
37
WASHER BS-38150GS
...
40
SCREW BS-80077GS
...
41
Oil Switch Vinyl Boot BS-61274
...
42
Idle Control PCB Assembly BS-67632C
...
43
I/C Transformer BS-80875
...
44
Toggle Switch BS-55869
...
45
I/C Switch BS-76255
...
46
1-3/4" dia. Plug BS-58221

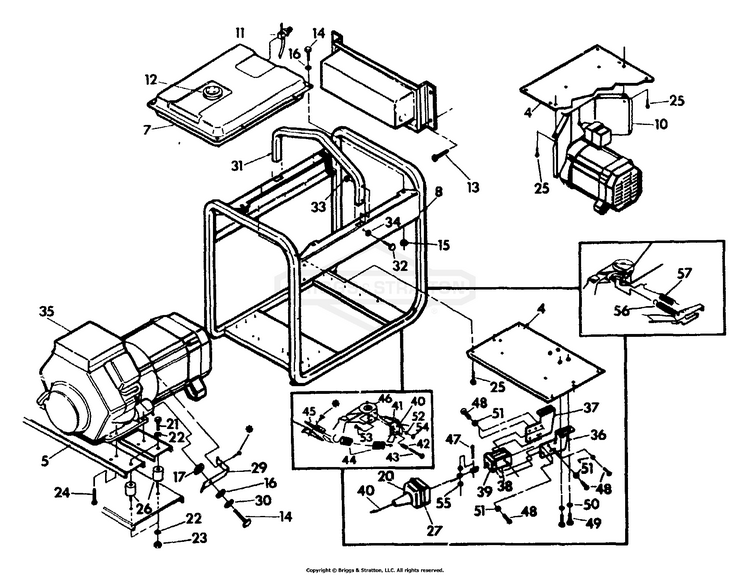

Cradle No. 80837

...
...
4
Heat Shield (fuel tank) BS-78518
...
5
Engine Support BS-77304
...
7
Fuel Tank BS-79568
...
8
Manual Start Cradle BS-78508
...
10
Heat Deflecting Shield (9261) BS-78513
...
11
Fuel Shut-off Valve BS-75938
...
12
Fuel Cap Gauge BS-76272
...
13
No. 10-24 x 5/8" Screw BS-75494
...
14
SCREW-M8 x 16 BS-42568GS
...
15
NUT-M6 FLANGE BS-52857GS
...
17
5/16"-24 Hex Nut BS-24114
...
20
Vinyl Boot BS-80898
...
21
WHEEL ASSEMBLY BS-84010756
...
22
LOCKWASHER, SPLIT 3/8 BS-703454
...
23
DECAL, ProCut Z Text BS-5022241
...
24
SCREW-HEX WSHR HD TAP BS-2828635SM
...
25
CRIMPTITE, #8-18X1/4L BS-63036GS
...
26
MNT, VBRTN, 30 DURO BS-35097GS
...
27
11" Tie-Wrap BS-69865
...
29
Wire Shield BS-78807
...
30
CAP BS-5022097SM
...
31
Lifting Bar BS-80809
...
32
SCREW BS-39287GS
...
33
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
35
16 H.P. V-Twin Engine BS-78282
...
36
Sole Mounting Bracket BS-78504
...
37
Sole Mounting Bracket BS-78504A
...
38
D-4HD Solenoid BS-78520
...
39
Solenoid Cover BS-78524
...
40
Solenoid Linkage BS-78507
...
41
Linkage Mounting Bracket BS-78516
...
42
Linkage Mounting Brkt. Spring BS-78529
...
43
HHCS, M4-0.7 X 50 BS-78530GS
...
44
Idle Control Spring BS-78519
...
45
BRCKT, MNTNG, SPRING, 50HZ BS-71907GS
...
46
Governor Control Brkt. Rework BS-78527
...
47
PIN, COTTER, 3/32-1 BS-22268GS
...
48
SCREW BS-797483
...
49
M4-0.7 x 10mm Capscrew BS-51718
...
50
WASHER BS-38150GS
...
51
No. 8 Lock Washer BS-22264
...
52
HANDLE ASSEMBLY BS-84008897
...
53
M4-0.7 x 6mm Capscrew BS-49819
...
54
NUT, M4-0.7 Hex BS-51715GS
...
55
WSHR, NYLON, .14 X .37 X .06 BS-25909GS
...
56
SPRING, GVRNR, 50HZ PRI BS-70958GS
...
57
SPRING, GVRNR, 50HZ SEC BS-80877GS

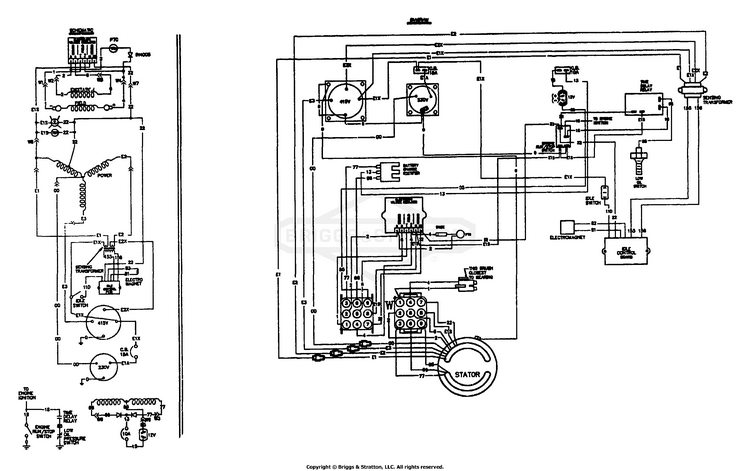

Electrical Schematic & Wiring Diagram No. 80803

...

No Parts Available for this Schematic
