9186-0 Briggs and Stratton Portable Generator T4000 4,000 Watt

Model: 9186-0

Save Part Not Listed?

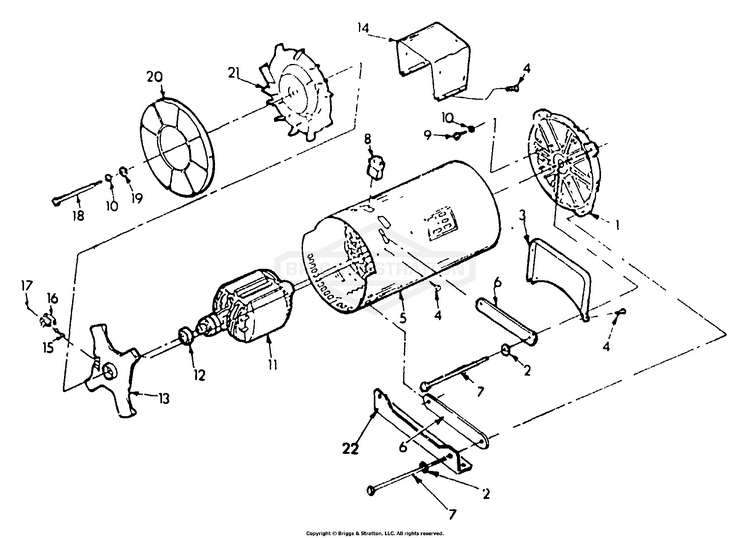

Generator

HOUSING, ENGINE ADAPTER BS-49400A

CAP BS-5022097SM

SCREW (TAPTITE)-NO. 10-32 x 3/8" BS-24489

STATOR ASSEMBLY BS-75985

BAR, STATOR BOLT BS-44338

BOLT, STATOR BS-44395E

RECTIFIER ASSEMBLY, BRIDGE BS-28293

CAPSCREW, HEX HEAD-5/16"-24 x 3/4" BS-22336

WASHER, Lock BS-22129GS

ROTOR ASSEMBLY BS-75986

BEARING, ROTOR BS-24049

CARRIER, BEARING BS-44943

SHROUD, PANEL BS-75971

ASSY, BRUSH BS-A24044AGS

HLDR, BRUSH, UNIV BS-23877DGS

PRHMS, 6-32 x 1/4 SEMS BS-25105GS

CAPSCREW, Hex Head BS-75431GS

Washer, .34 x 1 x 10 BS-50190GS

CVR, FAN, PLSTC BS-44357GS

FAN, COOLING BS-44331

SUPPORT, ALTERNATOR BS-77701A

Model: 1AHF08390

$16.00

In Stock

Replaced By :

Add To Cart Add To Cart

Save

View All Details
