9159-0 Briggs and Stratton Portable Generator L4004, 4,000 Watt

Model: 9159-0

Back To Assemblies

Save Part Not Listed?
product name

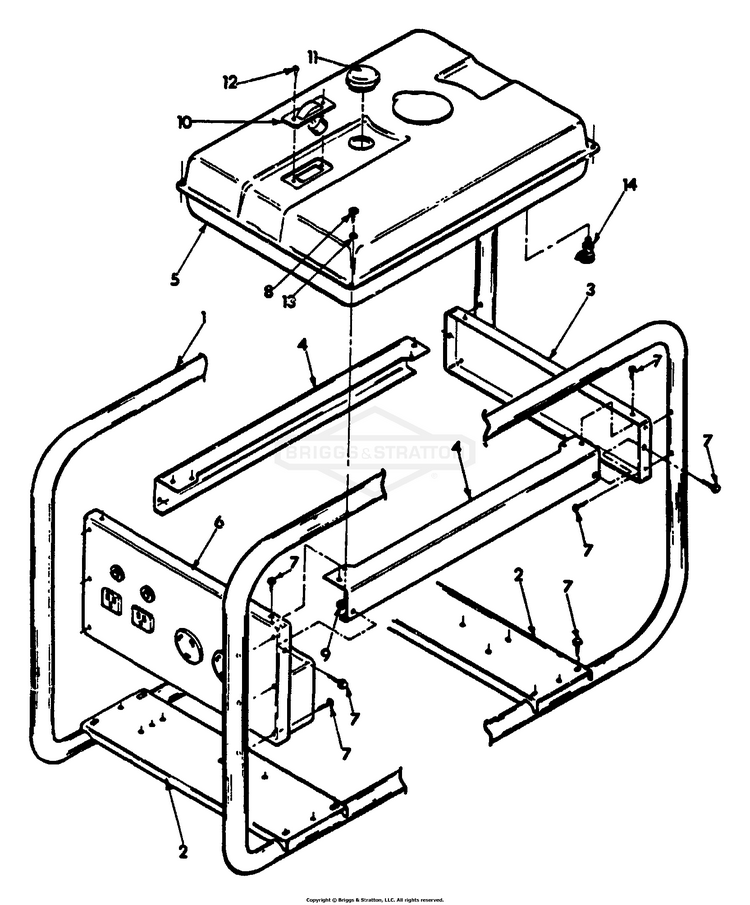

Cradle Assembly No. 77648

...
...
1
Cradle Tube BS-77337
...
2
Engine and Generator Base BS-77338
...
3
Cradle End Support BS-77339
...
4
Fuel Tank Support BS-77340
...
5
HARNESS, Ignition Wiring (Briggs Engines) BS-7073715YP
...
6
Control Panel Assembly BS-77347
...
7
Screw - 1/4"-20 x 1/2" BS-67459
...
8
SCREW-M8 x 16 BS-42568GS
...
9
NUT-M6 FLANGE BS-52857GS
...
10
Fuel Level Gauge BS-66391B
...
11
Fuel Cap BS-69658
...
12
Screw, M5-0.80 x 12mm BS-52749
...
14
VLV, FUEL TANK BS-77651GS
