9159-0 Briggs and Stratton Portable Generator L4004, 4,000 Watt

Model: 9159-0

Back To Assemblies

Save Part Not Listed?
product name

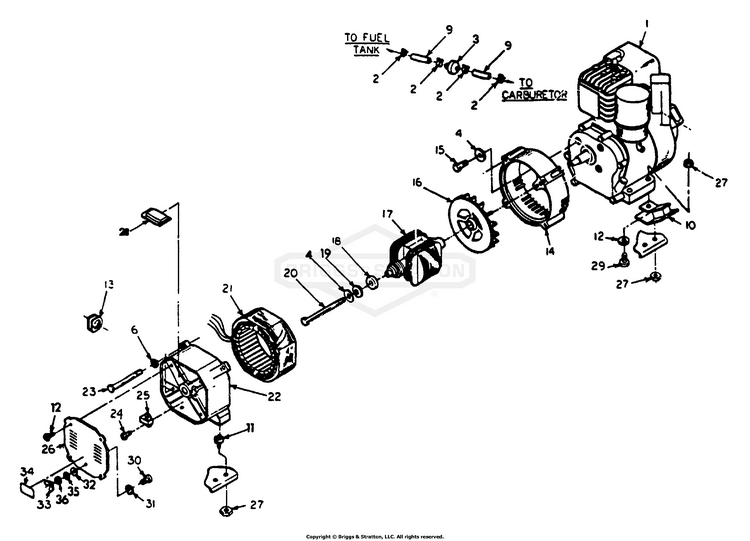

Generator

...
...
1
7.5 HP Kawasaki Engine (FG300-DXS) BS-77024
...
2
Fuel Line Clamp BS-66836
...
3
FILTER, FUEL, 150 MICRN BS-68740GS
...
4
WASHER, Lock BS-22129GS
...
6
CAP BS-5022097SM
...
9
Fuel Line - 4mm ID x 80mm BS-77363
...
10
MOUNT, Vibration 45°. BS-70642GS
...
11
MNT, VIBR BS-66443DGS
...
12
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
13
GROMMET, RUBBER BS-67022GS
...
14
Engine Adaptor Housing BS-66365C
...
15
CAPSCREW M8-1.25X16 BS-703988
...
16
Cooling Fan BS-66389
...
17
(C) RIM PNEUMATIC FR BS-7077350YP
...
18
BEARING BS-65791GS
...
19
Flat Washer, M8 BS-67451
...
20
Rotor Bolt M8-1.25 x 235mm BS-66448E
...
21
Stator Assembly BS-77354
...
22
Rear Bearing Carrier BS-68825
...
23
Stator Bolt M6 - 1.00 x 130mm BS-66449D
...
24
HHCS, M5-0.8 X 16 BS-49815GS
...
25
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
26
Bearing Carrier Cover BS-67025
...
27
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
28
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
29
Screw - M8-1.25 x 40mm BS-70629
...
30
HHCS, M5-0.8 X 20 BS-52619GS
...
31
Serrated Washer - M5 BS-67444
...
32
NUT, M5 x 0.8 BS-51716GS
...
33
Wing Nut (GND) M5 - 0.80 BS-67435
...
34
DECAL, GRD BS-67210GS
...
35
WASHER, M5 BS-51713GS
...
36
WASHER, M5 Lock BS-49226GS
