9100-2 Briggs and Stratton Portable Generator 8,000 Watt

Model: 9100-2

Back To Assemblies

Save Part Not Listed?
product name

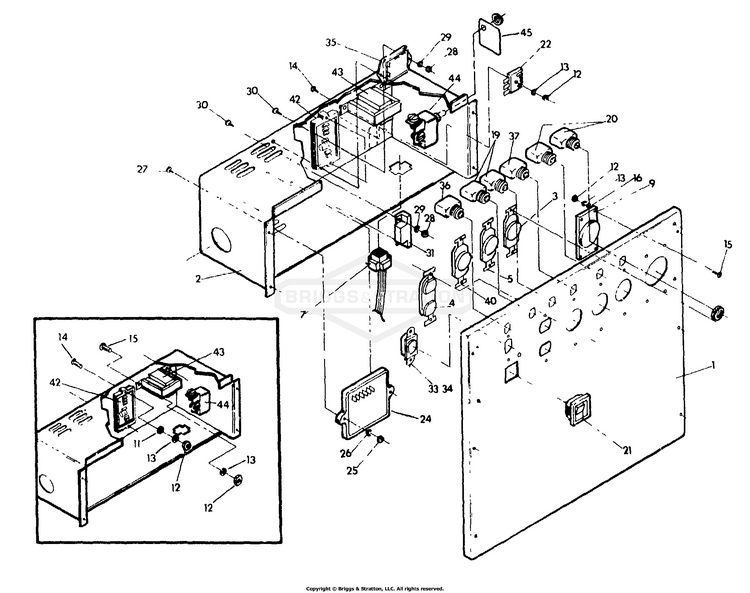

Control Panel And Cover Assembly No. 78532

...
...
1
CLIP, Guard, Tinnerman #C2980 BS-7074198SM
...
2
COVER, CONTROL PANEL BS-77315
...
3
OUTLET, 120/240V Locking, 20A BS-68867GS
...
4
OUTLET, Duplex, 120 V, 15 A BS-63025GS
...
5
OUTLET-120V TL30A BS-705932
...
6
LUG, 1/4 Tab BS-74094GS
...
7
CONNECTOR BS-63993
...
8
FIELD BOOST ASSEMBLY BS-77244
...
9
OUTLET, 50A, 240V BS-74191GS
...
10
TIE-WRAP BS-31980
...
11
Thumb Control Lever BS-5043180B
...
12
NUT, M4-0.7 Hex BS-51715GS
...
13
LOCKWASHER #8 BS-22264
...
14
P.P.H.M. SCR. M4-0.7 x 20 BS-70439
...
15
P.P.H.M. SCR. M4-0.7 x 10 BS-75475
...
16
WASHER BS-38150GS
...
17
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
18
WHEEL, 12 X 8.5 BS-5023364YP
...
19
BREAKER, Circuit BS-75207DGS
...
20
BREAKER-CIRCUIT 30A BS-706178
...
21
SWITCH, ENG, CTRL, ILUM BS-66817GS
...
22
RECTIFIER, BATTERY CHARGE BS-65795GS
...
23
ELECTRIC TAPE P-248 38 LONG BS-27565
...
24
AC VOLTAGE REGULATOR BS-74074
...
25
CAP, FUEL TANK, 3-1/2 NECK BS-5022158
...
26
VALVE, FUEL SHUT OFF BS-84010414
...
27
P.H.M.SCR. #10-32 x 1.125 BS-33534
...
28
HEX NUT-#6-32 BS-22188
...
29
PULLEY, PUMP DRIVE BS-5022155SM
...
30
SCREW BS-36902GS
...
31
BRKR, CRCT BS-48476GS
...
32
SCREW, M3-0.5 x 10mm BS-43181GS
...
33
OUTLET, 12 V DC BS-66821GS
...
34
OUTLET, 12Volt DC (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.) BS-66822GS
...
35
THERMAL RELAY BS-77314
...
36
BRKR, CRCT, 10A BS-75207BGS
...
37
BREAKER-CIRCUIT 20A BS-209872GS
...
38
SLEEVING, 650MM BS-22661Y
...
40
OUTLET 120V/20A. TWISTLOCK BS-74190
...
41
VINYL BOOT BS-61274
...
42
IDLE CONTROL PBC ASSEMBLY BS-67632
...
43
TRANSFORMER-IDLE ASSEMBLY BS-74769
...
44
SWITCH, TOGGLE, SPST BS-55869
...
45
DECAL, IDLE CONTROL BS-76255
