9100-2 Briggs and Stratton Portable Generator 8,000 Watt

Model: 9100-2

Back To Assemblies

Save Part Not Listed?
product name

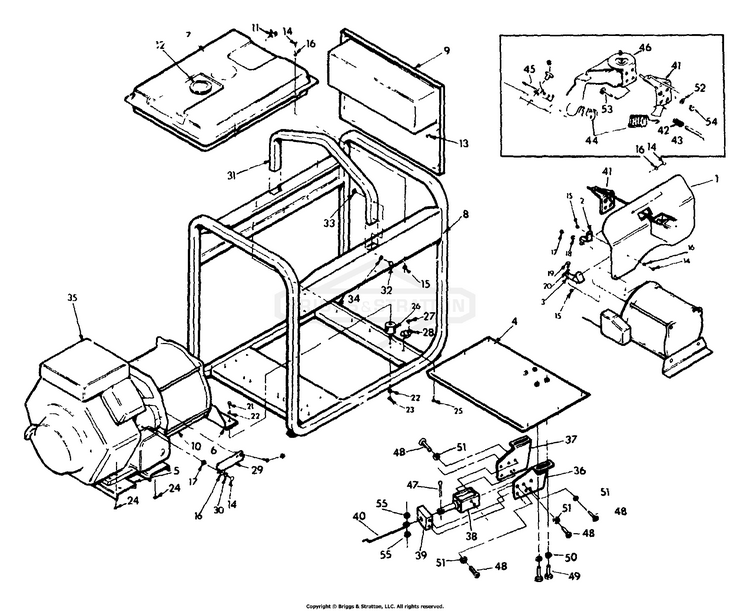

Cradle No. 78531

...
...
1
Heat deflecting shield BS-78517
...
2
Heat shield bracket BS-77319
...
3
Heat shield bracket BS-77306
...
4
Heat shield (gas tank) BS-78518
...
5
Engine support BS-77304
...
6
Alternator support BS-77303
...
7
LEVER BRAKE BS-7075465YP
...
8
V-Twin cradle BS-77300
...
9
Control panel cover assembly BS-78525A
...
11
Fuel shut-off valve BS-75938
...
12
Fuel gauge cap BS-76272
...
13
Screw - No. 10-24 x 5/8" BS-75494
...
14
SCREW-M8 x 16 BS-42568GS
...
15
NUT-M6 FLANGE BS-52857GS
...
17
Hex nut - 5/16"-24 BS-24114
...
18
WASHER, Lock BS-22129GS
...
19
HHCS, M5-0.8 X 16 BS-49815GS
...
20
VALVE, FUEL SHUT OFF BS-84010414
...
21
WHEEL ASSEMBLY BS-84010756
...
22
LOCKWASHER, SPLIT 3/8 BS-703454
...
23
DECAL, ProCut Z Text BS-5022241
...
24
SCREW-HEX WSHR HD TAP BS-2828635SM
...
25
CRIMPTITE, #8-18X1/4L BS-63036GS
...
26
MNT, VBRTN, 30 DURO BS-35097GS
...
27
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
28
Grounding lug BS-25433
...
29
Wire shield BS-78807
...
30
CAP BS-5022097SM
...
31
Lifting bar BS-77301
...
32
SCREW BS-39287GS
...
33
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
35
V-Twin engine - 15 hp. BS-78811
...
36
Sole mounting bracket BS-78504
...
37
Sole mounting bracket BS-78504A
...
38
Solenoid, D-4HD BS-78520
...
39
Solenoid cover BS-78524
...
40
Solenoid linkage BS-78507
...
41
Linkage mounting bracket BS-78516
...
42
Linkage mounting brkt. spring BS-78529
...
43
HHCS, M4-0.7 X 50 BS-78530GS
...
44
Idle control spring BS-78519
...
45
Spring mounting bracket BS-78505
...
46
Rework - Gov. control brkt. BS-78527
...
47
PIN, COTTER, 3/32-1 BS-22268GS
...
48
SCREW BS-797483
...
49
Capscrew - M4-0.7 x 10mm BS-51718
...
50
WASHER BS-38150GS
...
51
Lock washer - No. 8 BS-22264
...
52
HANDLE ASSEMBLY BS-84008897
...
53
Capscrew - M4-0.7 x 6 mm BS-49819
...
54
NUT, M4-0.7 Hex BS-51715GS
...
55
WSHR, NYLON, .14 X .37 X .06 BS-25909GS
