9099-2 Briggs and Stratton Portable Generator 6,000 Watt

Model: 9099-2

Save Part Not Listed?
product name

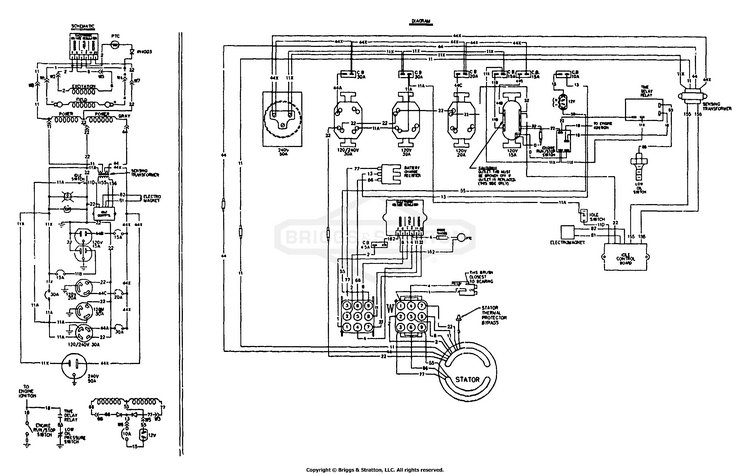

Electrical Schematic & Wiring Diagram

...

No Parts Available for this Schematic

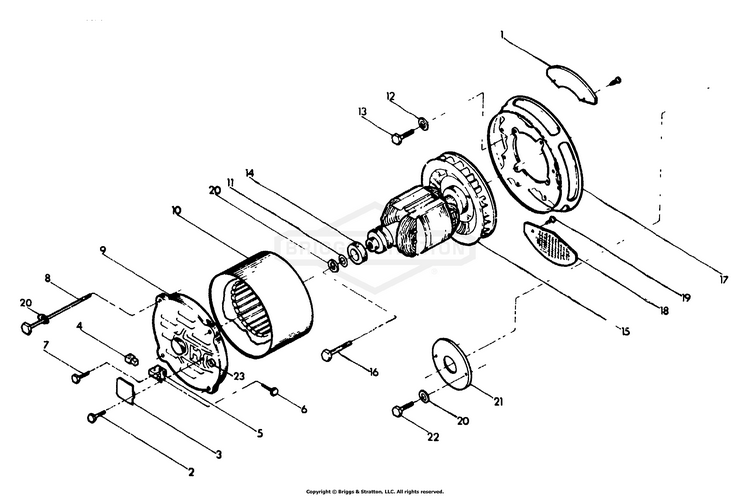

Generator

...
...
1
Cover plate BS-71791
...
2
No. 8-32 x 1/4" Screw BS-26902
...
3
BELT, 73.75 AA BS-7043844YP
...
4
ASSY, BRUSH BS-A24044AGS
...
5
HLDR, BRUSH, UNIV BS-23877DGS
...
6
PRHMS, 6-32 x 1/4 SEMS BS-25105GS
...
7
No. 8-32 x 5/8" Screw BS-24488
...
8
5/16"-24 x 12-1/4" Hex head capscrew BS-77324
...
9
CARRIER-BEARING BS-49410AGS
...
10
Stator assembly BS-77571
...
11
Washer, .34 x 1 x 10 BS-50190GS
...
12
LOCKWASHER, SPLIT 3/8 BS-703454
...
13
WHEEL ASSEMBLY BS-84010756
...
14
Bearing BS-24049
...
15
Rotor assembly BS-77572
...
16
5/16"-24 x 9-1/2" Hex head capscrew BS-39654
...
17
SPINDLE, CUTTER BS-7023418YP
...
18
Fan guard BS-55275
...
19
No. 10-32 x 1/4" Screw BS-46852
...
20
WASHER, Lock BS-22129GS
...
21
Center guard BS-55277
...
22
5/16"-24 x 3/4" Hex head capscrew BS-22336
...
23
Grommet BS-38057GS

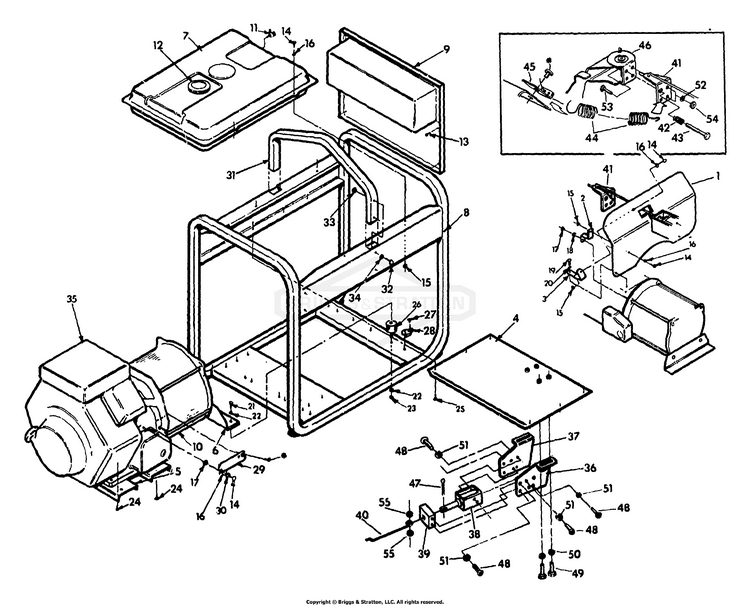

Generator Cradle Assembly No. 78538

...
...
1
Deflecting heat shield BS-78517
...
2
Heat shield bracket BS-77319
...
3
Heat shield bracket BS-77306
...
4
Fuel tank heat shield BS-78518
...
5
Engine support BS-77304
...
6
Generator support BS-77303
...
7
LEVER BRAKE BS-7075465YP
...
8
Cradle BS-77300
...
9
Receptacle panel cover BS-78525
...
11
Fuel shutoff valve BS-75938
...
12
Fuel tank filler cap BS-76272
...
13
No. 10-24 x 5/8" Self tapping screw BS-75494
...
14
SCREW-M8 x 16 BS-42568GS
...
15
NUT-M6 FLANGE BS-52857GS
...
17
5/16"-24 Hex nut BS-24114
...
18
WASHER, Lock BS-22129GS
...
19
HHCS, M5-0.8 X 16 BS-49815GS
...
20
VALVE, FUEL SHUT OFF BS-84010414
...
21
WHEEL ASSEMBLY BS-84010756
...
22
LOCKWASHER, SPLIT 3/8 BS-703454
...
23
DECAL, ProCut Z Text BS-5022241
...
24
SCREW-HEX WSHR HD TAP BS-2828635SM
...
25
CRIMPTITE, #8-18X1/4L BS-63036GS
...
26
MNT, VBRTN, 30 DURO BS-35097GS
...
27
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
28
Grounding lug BS-25433
...
29
Wire shield BS-77323
...
30
CAP BS-5022097SM
...
31
Lifting bar BS-77301
...
32
SCREW BS-39287GS
...
33
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
35
Engine assembly BS-78811
...
36
Sole mounting bracket BS-78504
...
37
Sole mounting bracket BS-78504A
...
38
Idle Control Solenoid BS-78520
...
39
Solenoid cover BS-78524
...
40
Solenoid linkage BS-78507
...
41
Linkage bracket BS-78516
...
42
Linkage mounting bracket spring BS-78529
...
43
HHCS, M4-0.7 X 50 BS-78530GS
...
44
Idle control spring BS-78519
...
45
Spring mounting bracket BS-78505
...
46
Governor bracket BS-78527
...
47
PIN, COTTER, 3/32-1 BS-22268GS
...
48
SCREW BS-797483
...
49
M4-0.70 x 10mm Hex head capscrew BS-51718
...
50
WASHER BS-38150GS
...
51
No. 8 Lockwasher BS-22264
...
52
HANDLE ASSEMBLY BS-84008897
...
53
M4-0.70 x 6mm Hex head capscrew BS-49819
...
54
NUT, M4-0.7 Hex BS-51715GS
...
55
WSHR, NYLON, .14 X .37 X .06 BS-25909GS

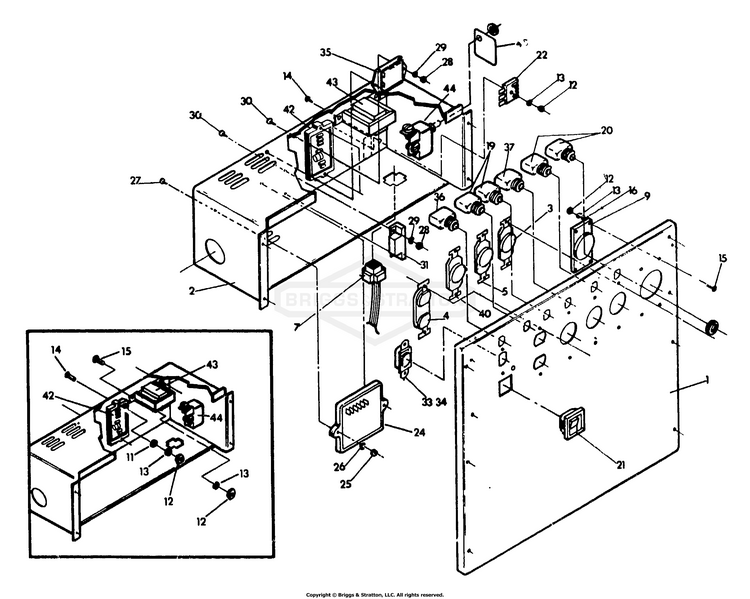

Receptacle Panel No.78537

...
...
1
Receptacle panel BS-74186
...
2
Panel cover BS-77315
...
3
OUTLET, 120/240V Locking, 20A BS-68867GS
...
4
OUTLET, Duplex, 120 V, 15 A BS-63025GS
...
5
OUTLET-120V TL30A BS-705932
...
6
LUG, 1/4 Tab BS-74094GS
...
7
Connector BS-63993
...
8
Field boost assembly BS-77244
...
9
OUTLET, 50A, 240V BS-74191GS
...
10
Tie-wrap BS-31980
...
11
Thumb Control Lever BS-5043180B
...
12
NUT, M4-0.7 Hex BS-51715GS
...
13
No. 8 Lockwasher BS-22264
...
14
M4-0.70 x 20mm Pan head machine screw BS-70439
...
15
M4-0.70 x 10mm Pan head machine screw BS-75475
...
16
WASHER BS-38150GS
...
17
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
18
WHEEL, 12 X 8.5 BS-5023364YP
...
19
BREAKER, Circuit BS-75207DGS
...
20
BREAKER-CIRCUIT 30A BS-706178
...
21
SWITCH, ENG, CTRL, ILUM BS-66817GS
...
22
RECTIFIER, BATTERY CHARGE BS-65795GS
...
23
Electric tape BS-27565
...
24
Voltage regulator BS-74074
...
25
CAP, FUEL TANK, 3-1/2 NECK BS-5022158
...
26
VALVE, FUEL SHUT OFF BS-84010414
...
27
No. 10-32 x 1-1/8" Pan head machine screw BS-33534
...
28
No. 6-32 Hex nut BS-22188
...
29
PULLEY, PUMP DRIVE BS-5022155SM
...
30
SCREW BS-36902GS
...
31
BRKR, CRCT BS-48476GS
...
32
SCREW, M3-0.5 x 10mm BS-43181GS
...
33
OUTLET, 12 V DC BS-66821GS
...
34
OUTLET, 12Volt DC (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.) BS-66822GS
...
35
Thermal relay BS-77314
...
36
BRKR, CRCT, 10A BS-75207BGS
...
37
BREAKER-CIRCUIT 20A BS-209872GS
...
38
650mm Sleeving BS-22661Y
...
40
120 volts, 20 amp receptacle (NEMA L5-20R) BS-74190
...
41
Vinyl boot BS-61274
...
42
Idle control circuit board assembly BS-67632
...
43
Idle control transformer BS-74769
...
44
BOLT, BOSS INSERT BS-58869GS
...
45
Idle control decal BS-76255
