9093-0 Briggs and Stratton Portable Generator HD6000, 4,000 Watt

Model: 9093-0

Back To Assemblies

Save Part Not Listed?
product name

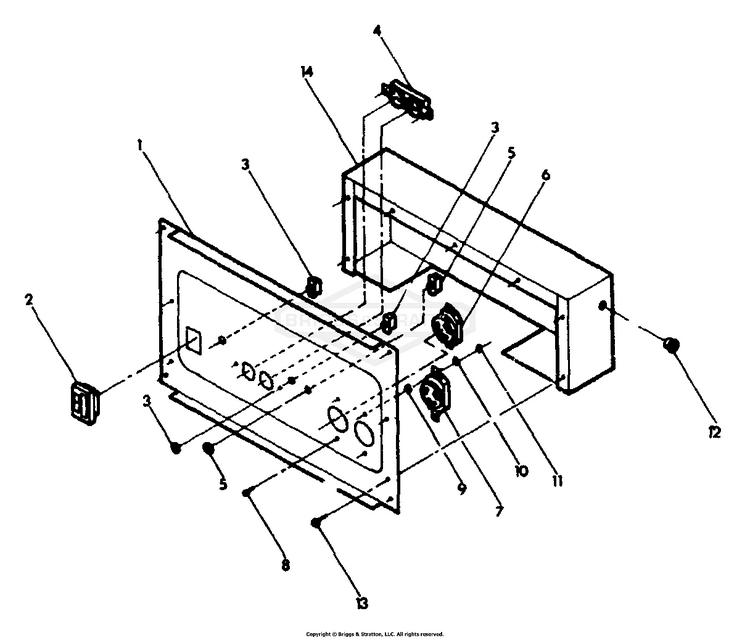

Panel No. 75990

...
...
1
PANEL, RECEPTACLE BS-76261
...
2
ENGINE SWITCH & POWER ON LAMP BS-68817
...
3
BREAKER-CIRCUIT 20A BS-209872GS
...
4
OUTLET, 20A,120V BS-68759GS
...
5
BREAKER-CIRCUIT 30A BS-706178
...
6
OUTLET-120V TL30A BS-705932
...
7
OUTLET, 120/240V Locking, 20A BS-68867GS
...
8
SCREW BS-797483
...
9
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
10
LOCKWASHER-NO. 8 BS-22264
...
11
NUT, #8-32 BS-22471GS
...
12
PLUG BUTTON-1/2 BS-65511
...
13
CRIMPTITE, #8-18X1/4L BS-63036GS
...
14
PANEL BS-68746A
...
PLUG, 125V 30A 3-Prong NOT SHOWN-USE WITH ITEM 6 (NEMA L5-30P) BS-100523GS
...
PLUG-120/240V TL20A NOT SHOWN-USE WITH ITEM 7 (NEMA L14-20P) BS-100522GS
