9093-0 Briggs and Stratton Portable Generator HD6000, 4,000 Watt

Model: 9093-0

Back To Assemblies

Save Part Not Listed?
product name

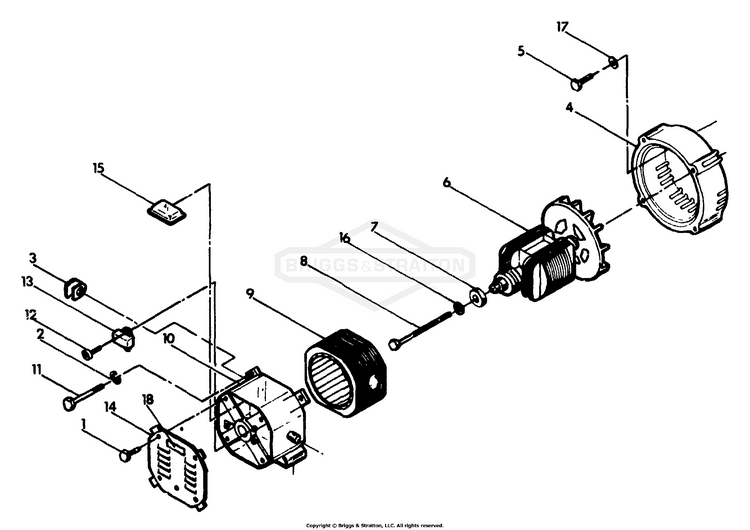

Generator No. 70454

...
...
1
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
2
CAP BS-5022097SM
...
3
GROMMET, RUBBER BS-67022GS
...
4
ADPTR, HSNG, 8 HP BS-66365DGS
...
5
CAPSCREW, HEX HEAD-5/16"-24 x 2-1/2" BS-23541
...
6
ROTOR & FAN ASSEMBLY BS-74716
...
7
BEARING BS-65791GS
...
8
CAPSCREW, Hex Head BS-75431GS
...
9
STATOR ASSEMBLY BS-74709
...
10
CARRIER, REAR BEARING BS-66825
...
11
BOLT, STATOR-M6-1.00 x 130MM BS-66449D
...
12
HHCS, M5-0.8 X 16 BS-49815GS
...
13
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
14
COVER, BEARING CARRIER BS-67025
...
COVER, BEARING CARRIER BS-73083
...
15
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
16
FLATWASHER, (SPECIAL)-M8 BS-67451
...
17
WASHER, Lock BS-22129GS
...
18
DECAL, Neutral Ground BS-74728GS
