9079-0 Briggs and Stratton Portable Generator V5000E, 5,000 Watt

Model: 9079-0

Save
 Part Not Listed?Part Not Listed?
product name

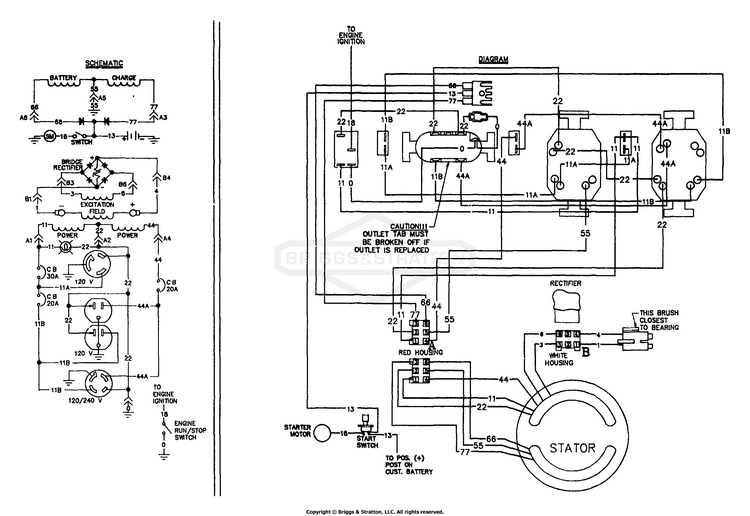

Electrical Schematic & Wiring Diagram

...

No Parts Available for this Schematic

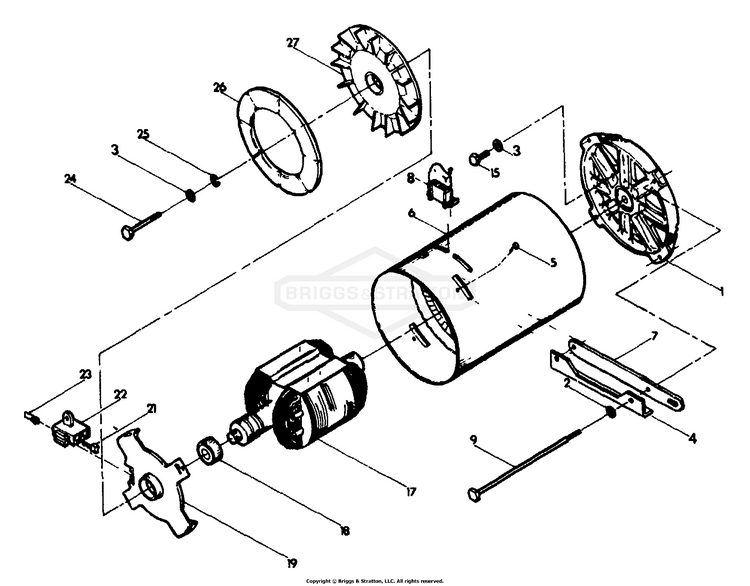

Generator

...
...
1
HOUSING, Adapter BS-43873
...
2
CAP BS-5022097SM
...
3
WASHER, Lock BS-22129GS
...
4
SUPPORT, Rear Generator BS-44392B
...
5
SCREW-No. 10-32 x 3/8" BS-24489
...
6
STATOR ASSY (V4000E) BS-75487
...
STATOR ASSY (V5000E) BS-76252
...
7
BAR, Stator Bolt BS-75950
...
8
RECTIFIER, Bridge BS-28293
...
9
BOLT, Stator BS-70634
...
15
SCREW-3/8"-16 x 3/4" BS-22336
...
17
ROTOR ASSY (V4000E) BS-68748B
...
ROTOR ASSY (V5000E) BS-76251
...
18
BEARING, Rotor BS-24049
...
19
CARRIER, Bearing BS-44943
...
21
ASSY, BRUSH BS-A24044AGS
...
22
HLDR, BRUSH, UNIV BS-23877DGS
...
23
PRHMS, 6-32 x 1/4 SEMS BS-25105GS
...
24
NUT BS-5025254FS
...
25
Washer, .34 x 1 x 10 BS-50190GS
...
26
CVR, FAN, PLSTC BS-44357GS
...
27
FAN, Cooling BS-44331

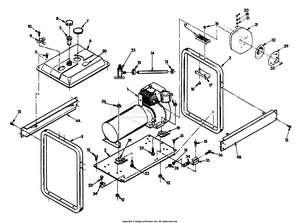

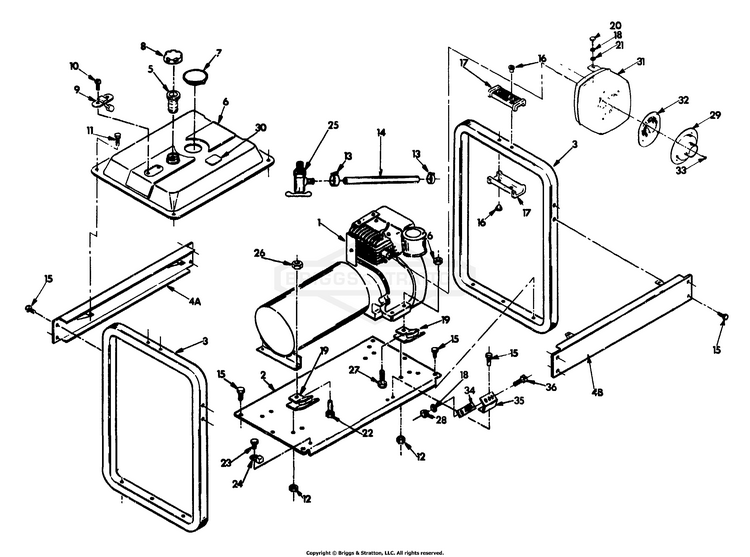

Mounting Base

...
...
1
ENGINE- Briggs & Stratton 8 H.P. Electric Start BS-76241
...
2
BASE, Mounting BS-76231
...
3
LOOP, Cradle End BS-70603
...
4A
SUPPORT, Fuel Tank- LH BS-70636
...
4B
SUPPORT, Fuel Tank- RH BS-70636A
...
5
STRAINER, Fuel Fill BS-70630
...
6
HARNESS, Ignition Wiring (Briggs Engines) BS-7073715YP
...
7
CVR, ACC, SPARKPLUG BS-64680BGS
...
8
CAP, Fuel Tank BS-69658
...
9
GAUGE, Fuel Level BS-66391B
...
10
SCREW- M5-0.80 x 12mm BS-52749
...
11
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
12
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
13
CLAMP, Hose- 1/4" ID BS-48031C
...
14
HOSE, Fuel- 1/4" ID x 12" BS-47662D
...
15
SCREW BS-58443GS
...
16
RIVET- 4mm BS-66831
...
17
HANDLE - Plastic BS-66450
...
18
CAP BS-5022097SM
...
19
MOUNT, Vibration 45°. BS-70642GS
...
20
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
22
SCREW BS-70644GS
...
23
SCREW (Taptite)- No. 10-32 x 3/8" BS-24489
...
24
LUG, Grounding BS-25433
...
25
VLV, SHUT OFF BS-27734GS
...
26
NUT, 5/16 - 18 BS-22259GS
...
27
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
28
NUT, M6 BS-49813GS
...
29
DEFLECTOR, Exhaust BS-76263
...
30
DECAL- "Caution!" BS-70687
...
31
MUFFLER, Exhaust BS-76273
...
32
SCREEN, Spark Arrestor BS-50483
...
33
CRIMPTITE, #8-18X1/4L BS-63036GS
...
34
CONTACTOR, START, PUSH BS-53030GS
...
35
BRACKET, Starter Contactor BS-65121
...
36
SCREW-M8 x 16 BS-42568GS

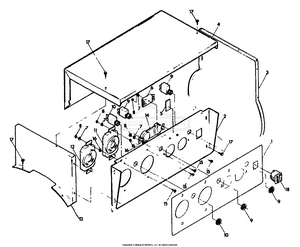

Receptacle Panel

...
...
1
DECAL, Panel- V4000E BS-76237
...
DECAL, Panel- V5000E BS-76238
...
2
PANEL, Receptacle BS-76230
...
3
PANEL, End BS-44328
...
4
SHROUD, Panel- V4000E BS-76232
...
SHROUD, Panel- V5000E BS-75493
...
5
TAPE, Insulator- 38mm BS-27565
...
6
RECTIFIER, BATTERY CHARGE BS-65795GS
...
7
LOCKWASHER- M4 BS-22264
...
8
NUT, M4-0.7 Hex BS-51715GS
...
9
BREAKER-CIRCUIT 20A BS-209872GS
...
10
BREAKER-CIRCUIT 30A BS-706178
...
11
OUTLET-120V TL30A BS-705932
...
12
OUTLET, 120/240V Locking, 20A BS-68867GS
...
13
(C) WELD PIVOT ARM BS-7043874YP
...
14
OUTLET, 20A,120V BS-68759GS
...
15
SCREW, Pan Head- M4-0.70 x 10mm BS-75475
...
16
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
17
SCREW (Taptite)- No. 10-32 x 3/8" BS-24489
...
18
SWITCH, ENG, CTRL, ILUM BS-66817GS
...
PLUG, 125V 30A 3-Prong BS-100523GS
...
PLUG-120/240V TL20A BS-100522GS
...
...
...
