9076-0 Briggs and Stratton Portable Generator G7000E, TTI, 50 Kilowatt

Model: 9076-0

Save Part Not Listed?
product name

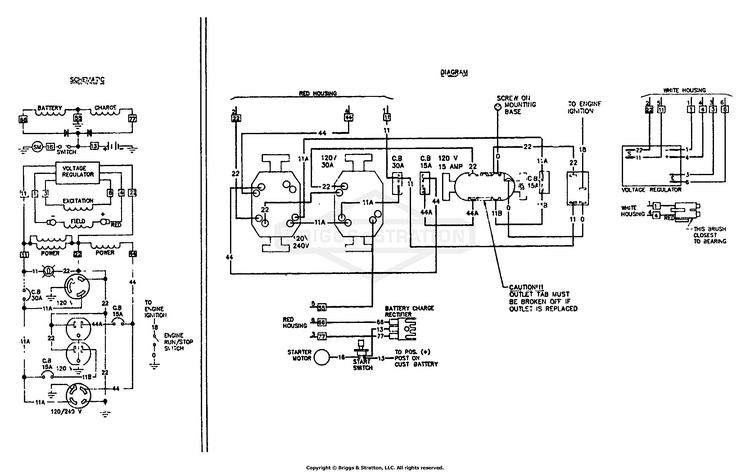

Electrical Schematic & Wiring Diagram

...

No Parts Available for this Schematic

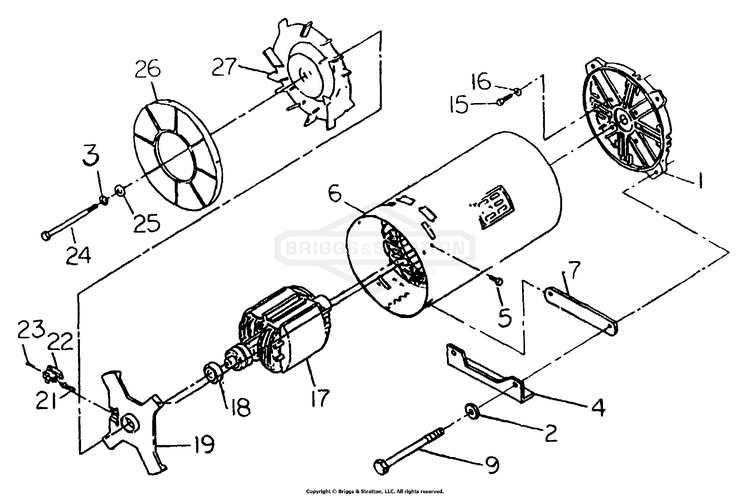

Generator

...
...
1
HOUSING, Engine Adapter BS-43873
...
2
CAP BS-5022097SM
...
3
WASHER, Lock BS-22129GS
...
4
SUPPORT, Rear Generator BS-70634A
...
5
SCREW (Taptite)- No. 10-32 x 3/8" BS-24489
...
6
STATOR ASSY BS-68749C
...
7
BAR, Stator Bolt BS-44338
...
9
BOLT, Stator BS-44395B
...
15
SCREW- 5/16"-24 x 3/4" BS-22336
...
16
WASHER, Lock BS-22129GS
...
17
ROTOR ASSY BS-68794
...
18
BEARING, Rotor BS-24049
...
19
CARRIER, Bearing BS-44943
...
21
ASSY, BRUSH BS-A24044AGS
...
22
HLDR, BRUSH, UNIV BS-23877DGS
...
23
PRHMS, 6-32 x 1/4 SEMS BS-25105GS
...
24
NUT BS-5025254FS
...
25
Washer, .34 x 1 x 10 BS-50190GS
...
26
CVR, FAN, PLSTC BS-44357GS
...
27
FAN, Cooling BS-44331

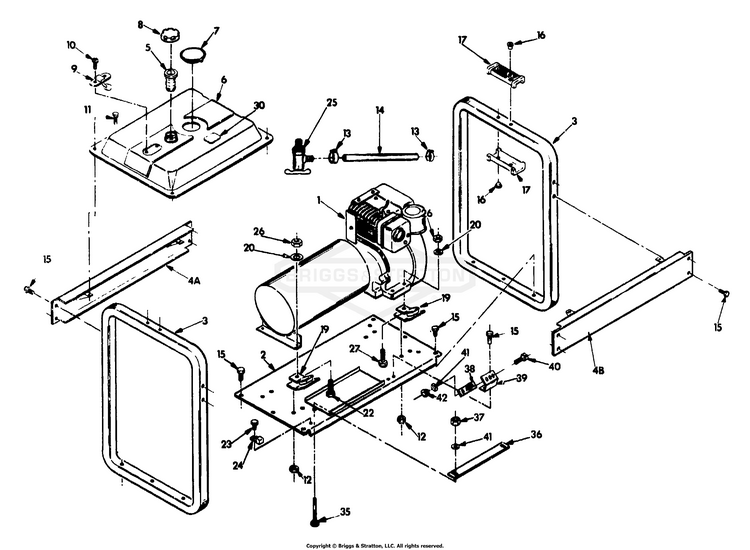

Mounting Base

...
...
1
ENGINE- Briggs & Stratton 11 HP (Electric Start) BS-75915
...
2
BASE, Mounting BS-70643C
...
3
LOOP, Cradle End BS-70603
...
4A
SUPPORT, Fuel Tank- LH BS-74798
...
4B
SUPPORT, Fuel Tank- RH BS-74798A
...
5
STRAINER, Fuel Fill BS-70630
...
6
HARNESS, Ignition Wiring (Briggs Engines) BS-7073715YP
...
7
CVR, ACC, SPARKPLUG BS-64680BGS
...
8
CAP, Fuel Tank BS-69658
...
9
GAUGE, Fuel Level BS-66391B
...
10
SCREW- M5-0.80 x 12mm BS-52749
...
11
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
12
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
13
CLAMP, Hose- 1/4" ID BS-48031C
...
14
HOSE, Fuel- 1/4" ID x 21" BS-47662D
...
15
SCREW (Crimptite)- 1/4"-20 x 1/2" BS-58442
...
16
RIVET- 4mm BS-66831
...
17
HANDLE- Plastic BS-66450
...
19
MOUNT, Vibration 45°. BS-70642GS
...
20
WASHER, Lock BS-22129GS
...
22
SCREW, Pan Head- 5/16"-18 x 3/4" BS-64183
...
23
SCREW (Taptite)- No. 10-32 x 3/8" BS-24489
...
24
LUG, Grounding BS-25433
...
25
VLV, SHUT OFF BS-27734GS
...
26
NUT, 5/16-18 HEX BS-5025032SM
...
27
PPHMS, 5/16-18 X 1.50 BS-70653GS
...
30
DECAL- "Caution!" BS-75951
...
35
HHCS, 1/4-20 X 7 BS-45000GS
...
36
CONTROL, Hydro, Right BS-5044951B
...
37
NUT, Hex Lock- 1/4"-20 BS-27529
...
38
CONTACTOR, START, PUSH BS-53030GS
...
39
BRACKET, Starter Contactor BS-65121
...
40
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
41
CAP BS-5022097SM
...
42
NUT, Hex- 1/4"-20 BS-22127

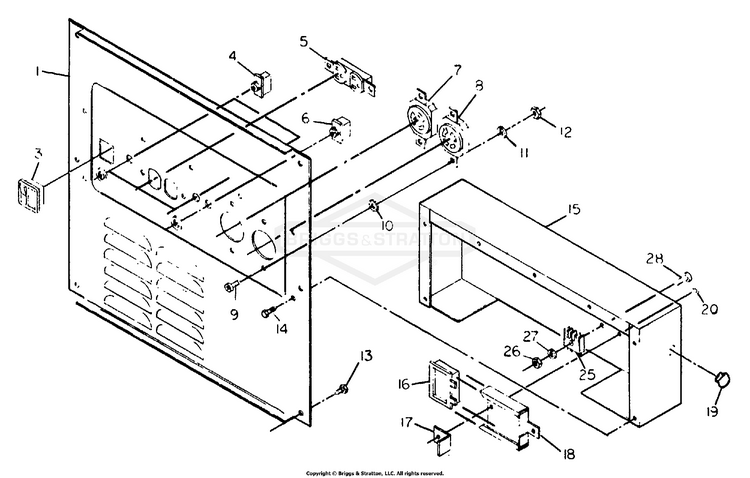

Receptacle Panel

...
...
1
PANEL BS-74791
...
3
SWITCH, ENG, CTRL, ILUM BS-66817GS
...
4
BREAKER, Circuit BS-75207DGS
...
5
RECEPTACLE, Duplex Type- 120 volts, 15 amp BS-76248
...
6
BREAKER-CIRCUIT 30A BS-706178
...
7
OUTLET-120V TL30A BS-705932
...
8
OUTLET, 120/240V Locking, 20A BS-68867GS
...
9
SCREW BS-797483
...
10
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
11
LOCKWASHER- No. 8 BS-22264
...
12
NUT, #8-32 BS-22471GS
...
13
SCREW (Crimptite)- 1/4"-20 x 1/2" BS-58442
...
14
CRIMPTITE, #8-18X1/4L BS-63036GS
...
15
PANEL, Back BS-68746A
...
16
REGULATOR, VOLT BS-67107GS
...
17
BRACKET, Battery Holddown BS-68796
...
18
BRACKET, Regulator BS-68795
...
19
BUTTON, Plug- 1/2" BS-65511
...
20
RIVET, Pop- 1/8" BS-36261
...
25
RECTIFIER, BATTERY CHARGE BS-65795GS
...
26
CAP, FUEL TANK, 3-1/2 NECK BS-5022158
...
27
VALVE, FUEL SHUT OFF BS-84010414
...
28
SCREW- No. 10-32 x 3/4" BS-36935
...
PLUG, 125V 30A 3-Prong BS-100523GS
...
PLUG-120/240V TL20A BS-100522GS
