9075-0 Briggs and Stratton Portable Generator G6000, TTI, 4,000 Watt

Model: 9075-0

Save Part Not Listed?
product name

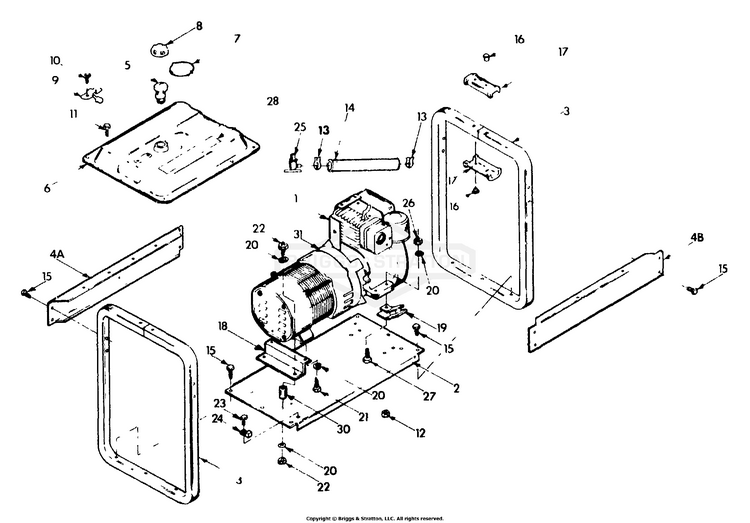

Cradle

...
...
1
(C) SUPPORT REAR MUF BS-7074785YP
...
2
BASE, Mounting BS-70643
...
3
LOOP, Cradle End BS-70603
...
4A
SUPPORT, Fuel Tank - LH BS-74793
...
4B
SUPPORT, Fuel Tank- RH BS-74793A
...
5
STRAINER, Fuel Fill BS-70630
...
6
HARNESS, Ignition Wiring (Briggs Engines) BS-7073715YP
...
7
CVR, ACC, SPARKPLUG BS-64680BGS
...
8
CAP, Fuel Tank BS-69658
...
9
GAUGE, Fuel Level BS-66391B
...
10
SCREW- M5-0.80 x 12mm BS-52749
...
11
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
12
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
13
CLAMP, Fuel Hose- 1/4" BS-48031C
...
14
HOSE, Fuel- 1/4" ID x 21" long BS-47662D
...
15
SCREW BS-58443GS
...
16
RIVET- 4mm BS-66831
...
17
HANDLE, Plastic BS-66450
...
18
SUPPORT, Generator BS-73078
...
19
MOUNT, Vibration 45°. BS-70642GS
...
20
WASHER, Lock BS-22129GS
...
21
CAPSCREW M8-1.25X16 BS-703988
...
22
MODULE BS-84009650
...
23
SCREW- No. 10-32 x 3/8" BS-24489
...
24
LUG, Grounding BS-25433
...
25
VLV, SHUT OFF BS-27734GS
...
26
NUT, 5/16-18 HEX BS-5025032SM
...
27
PPHMS, 5/16-18 X 1.50 BS-70653GS
...
28
DECAL- Caution! BS-75951
...
30
MOUNT, Vibration BS-44624
...
31
SPACER, Engine BS-68342
...
MANUAL, Owner's (English) BS-76258
...
MANUAL-OPERATOR BS-74792GS

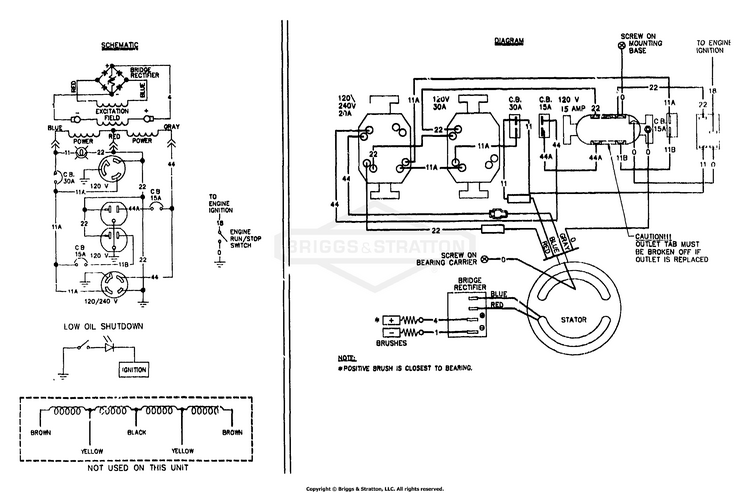

Electrical Schematic & Wiring Diagram

...

No Parts Available for this Schematic

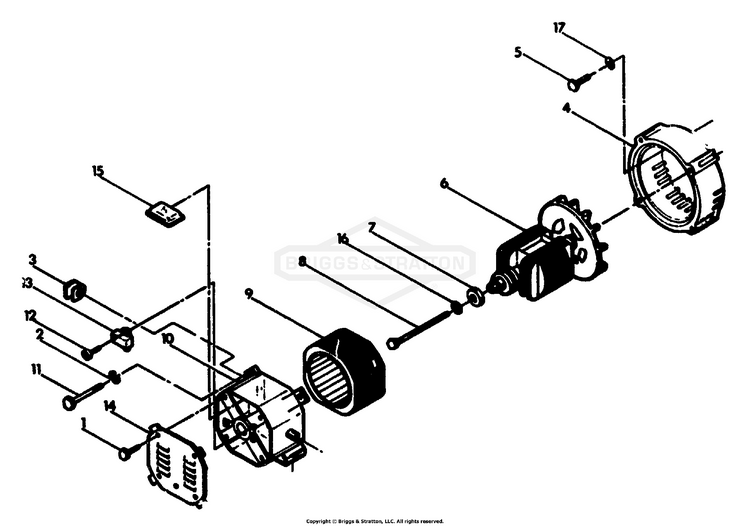

Generator

...
...
1
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
2
CAP BS-5022097SM
...
3
GROMMET, RUBBER BS-67022GS
...
4
ADPTR, HSNG, 8 HP BS-66365DGS
...
5
CAPSCREW, Hex Head- 5/16"-24 x 2-1/2" BS-23541
...
6
ROTOR & FAN ASSY BS-74716
...
7
BEARING BS-65791GS
...
8
CAPSCREW, Hex Head BS-75431GS
...
9
STATOR ASSY BS-74709
...
10
CARRIER, Rear Bearing BS-66825
...
11
BOLT, Stator- M6-1.00 x 130mm BS-66449H
...
12
HHCS, M5-0.8 X 16 BS-49815GS
...
13
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
14
COVER, Bearing Carrier BS-67025
...
15
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
16
FLATWASHER (Special)- M8 BS-67451
...
17
WASHER, Lock BS-22129GS

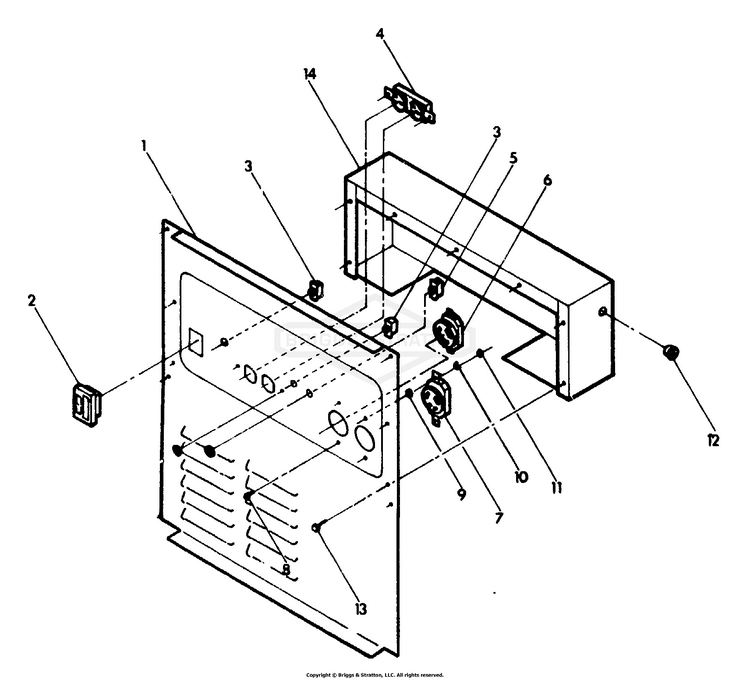

Receptacle Panel

...
...
1
PANEL, Receptacle BS-74791
...
2
SWITCH, ENG, CTRL, ILUM BS-66817GS
...
3
BREAKER, Circuit BS-75207DGS
...
4
RECEPTACLE- 120 volts Duplex (NEMA 5-15R) BS-76248
...
5
BREAKER-CIRCUIT 30A BS-706178
...
6
OUTLET-120V TL30A BS-705932
...
7
OUTLET, 120/240V Locking, 20A BS-68867GS
...
8
SCREW BS-797483
...
9
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
10
LOCKWASHER- No. 8 BS-22264
...
11
NUT, #8-32 BS-22471GS
...
12
PLUG, Button- 1/2" BS-65511
...
13
CRIMPTITE, #8-18X1/4L BS-63036GS
...
14
PANEL, Back BS-68746A
...
PLUG, 125V 30A 3-Prong BS-100523GS
...
PLUG-120/240V TL20A BS-100522GS

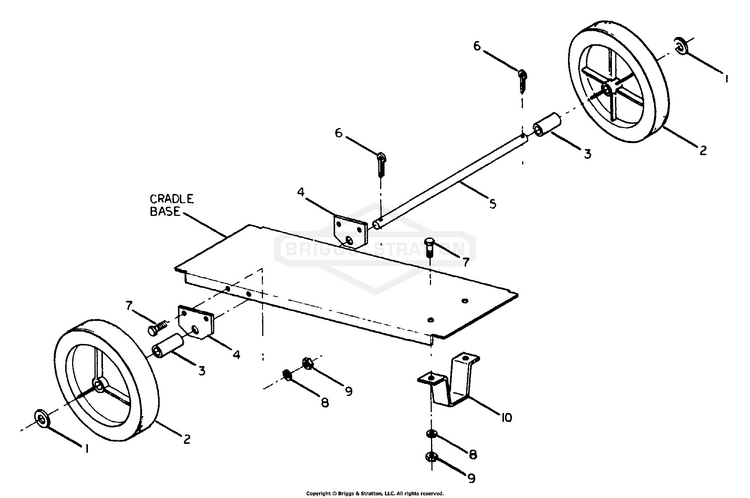

Wheel Kit Assembly (Optional)

...
...
1
Washer, Flat 1/2 BS-22304GS
...
2
WHEEL- 10" diameter BS-52597
...
3
SPACER, Wheel- 1" long BS-39712B
...
4
BRACKET, Axle BS-67212
...
5
AXLE- 1/2" x 19.25" long BS-60564C
...
6
PIN, COTTER, 3/32-1 BS-22268GS
...
7
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
8
CAP BS-5022097SM
...
9
NUT, Hex - 1/4"-20 BS-22127
...
10
LEG, Support BS-68885
