9072-0 Briggs and Stratton Portable Generator G3000, TTI, 2,250 Watt

Model: 9072-0

Save Part Not Listed?
product name

Popular Parts

Popular Parts

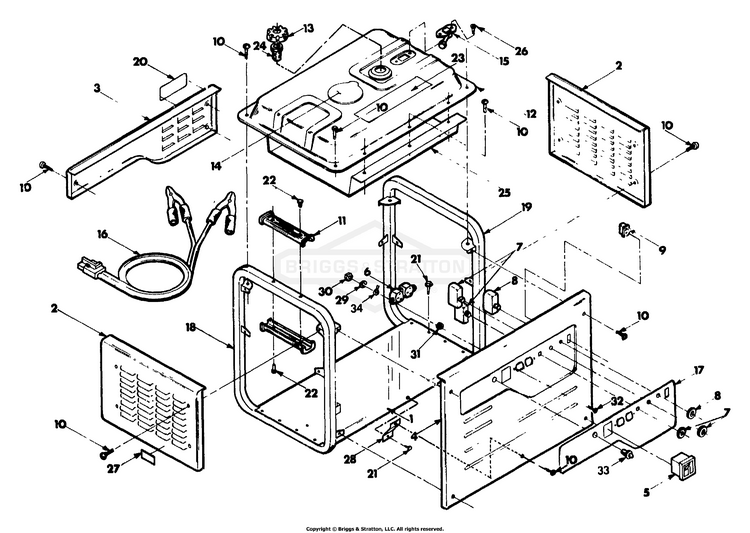

Cradle

...
...
1
SWIVEL BRAKE BS-7073015YP
...
2
PANEL, End BS-73011
...
3
SEAL 1.181 ID 1.850 BS-7073008YP
...
4
PANEL, Receptacle & Control BS-75955
...
5
SWITCH, ENG, CTRL, ILUM BS-66817GS
...
6
RECEPTACLE- 120 volts, 15 amp BS-76248
...
7
BREAKER, Circuit BS-75207DGS
...
8
BRKR, CRCT, 10A BS-75207BGS
...
9
RECEPTACLE, Battery Charge BS-6720753
...
10
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
11
COVER, Handle BS-66450
...
12
TANK, Fuel- 2.34 U.S. Gallons BS-69661
...
13
CAP, Fuel Tank BS-69658
...
14
COVER, Spark Plug Access BS-64690B
...
15
INDICATOR, Fuel Level BS-66391B
...
16
CABLE, BTTRY CHARGE BS-71394GS
...
17
DECAL- Receptacle Panel BS-75903
...
18
CRADLE, Engine End BS-72275
...
19
(C) SHIELD DRIVE OFZ BS-7072276YP
...
20
BRACKET INLET BS-7075957SM
...
21
SCREW (Crimptite)- 1/4"-20 x 1/2" BS-58442
...
22
RIVET (Black Anodized) BS-66831
...
23
DECAL- Caution! BS-75951
...
24
FILTER, Fuel BS-70630
...
25
SHIELD, Fuel Tank Heat BS-74743
...
26
SCREW, Machine- M5-0.80 x 12mm BS-52749
...
27
DECAL- Fuel Shutoff BS-75956
...
28
(TT) SEAL OIL 16220 BS-7073745YP
...
29
LOCKWASHER- No. 8 BS-22264
...
30
NUT, #8-32 BS-22471GS
...
31
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
32
SCREW BS-797483
...
33
LAMP, Low Oil Indicator BS-71381
...
34
THROTTLE CONTROL BS-7074138YP

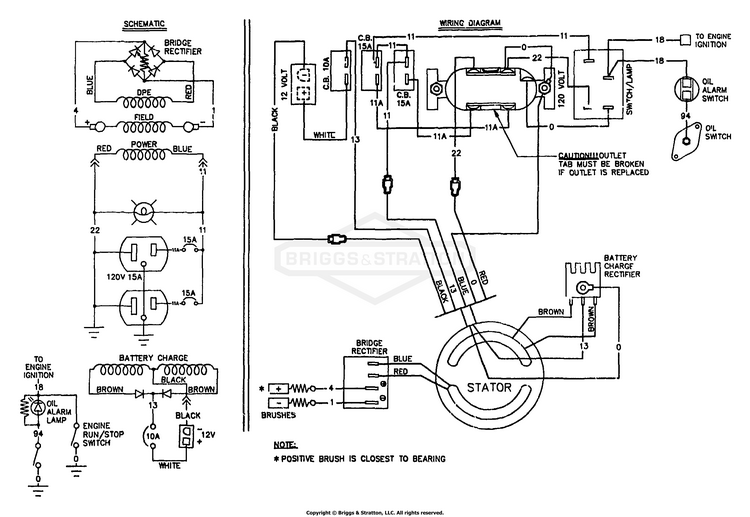

Electrical Schematic & Wiring Diagram

...

No Parts Available for this Schematic

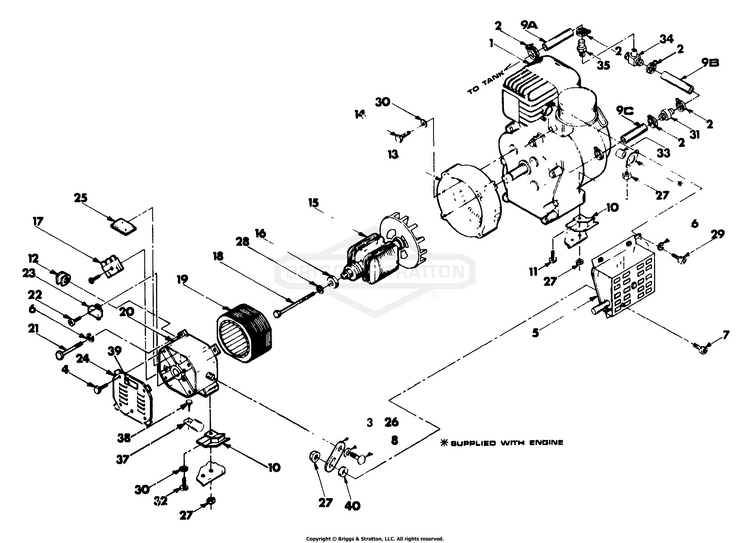

Generator

...
...
1
ENGINE-Briggs & Stratton 5 Horsepower BS-71393
...
2
CLAMP, Fuel Line BS-48031C
...
3
CABLE CHOKE 16HP B& BS-7075448YP
...
4
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
5
MUFFLER, Spark Arrestor Type BS-72083
...
6
CAP BS-5022097SM
...
7
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
8
CAPSCREW, Hex Head- M10-1.50 x 16mm BS-51755
...
9A
HOSE, Fuel- 13-1/4" long BS-47662V
...
9B
HOSE, Fuel- 12" long BS-47662AE
...
9C
HOSE, Fuel-3" long BS-47662B
...
10
MOUNT, Vibration 45°. BS-70642GS
...
11
HHCS, M8 - 1.25 x 35 BS-39414GS
...
12
GROMMET, RUBBER BS-67022GS
...
13
HOUSING, Engine Adapter BS-66365GS
...
14
CAPSCREW, Hex Head-5/16"-24 x 3/4" BS-22336
...
15
ROTOR ASSY BS-74713
...
16
BEARING BS-65791GS
...
17
RECTIFIER, BATTERY CHARGE BS-65795GS
...
18
BOLT, Rotor-5/16"-24 x 5.5" long BS-24420
...
19
BEARING, TAPERED ROLL BS-5020884SM
...
20
CARRIER, Rear Bearing BS-66825
...
21
BOLT, Stator- M6-1.00 x 80mm BS-66449C
...
22
HHCS, M5-0.8 X 16 BS-49815GS
...
23
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
24
COVER, Bearing Carrier BS-67025
...
25
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
26
LOCKWASHER- M10 BS-46526
...
27
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
28
FLATWASHER (Special)- M8 BS-67451
...
29
CAPSCREW, Socket Head- 1/4"-20 x 1/2" BS-39974
...
30
WASHER, Lock BS-22129GS
...
31
FILTER, FUEL, 150 MICRN BS-68740GS
...
32
SCREW BS-70644GS
...
33
LINER, Port BS-60211
...
34
VALVE, Fuel Shutoff BS-71384
...
35
FITTING, Barbed- 1/4" BS-28414
...
37
LUG, Grounding BS-25433
...
38
SCREW (Taptite)- No. 10-32 x 5/8" BS-24489
...
39
DECAL, Ground, French BS-76247GS
...
40
SPACER BS-22625C
