9063-0 Briggs and Stratton Portable Generator L4003, 4,000 Watt

Model: 9063-0

Save Part Not Listed?
product name

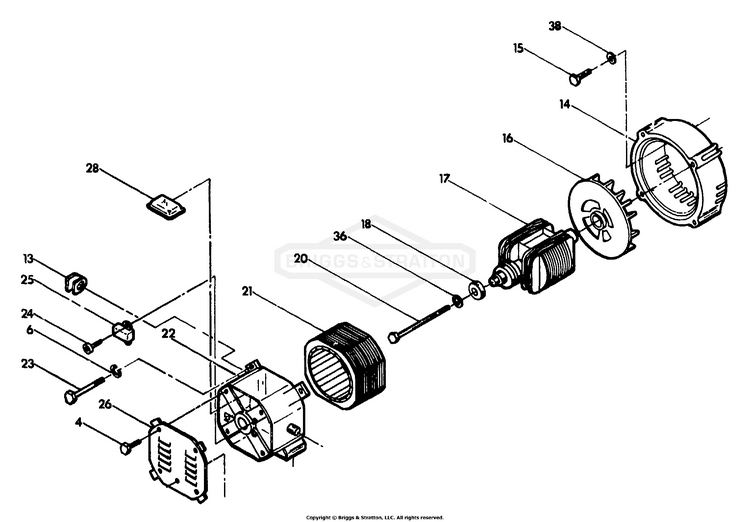

Generator

...
...
4
SCREW (Taptite)- M5-0.80 x 6mm BS-66848B
...
6
CAP BS-5022097SM
...
13
GROMMET, RUBBER BS-67022GS
...
14
ADPTR, HSNG, 8 HP BS-66365DGS
...
15
CAPSCREW, Hex Head 5/16"-18 x 2-1/2" BS-23541
...
16
FAN, Cooling BS-66389
...
17
ROTOR ASSY BS-70423
...
18
BEARING BS-65791GS
...
20
HHCS, 5/16 - 24 x 8-7/8 BS-73068GS
...
21
STATOR ASSY BS-72087A
...
22
CARRIER, Rear Bearing BS-66825
...
23
BOLT, Stator BS-66449F
...
24
HHCS, M5-0.8 X 16 BS-49815GS
...
25
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
26
COVER, Bearing Carrier BS-67025
...
28
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
36
FLATWASHER (Special) - M8 BS-67451
...
38
WASHER, Lock BS-22129GS
...
SPACER, Engine BS-68342
...
MANUAL-OPERATOR BS-74788GS

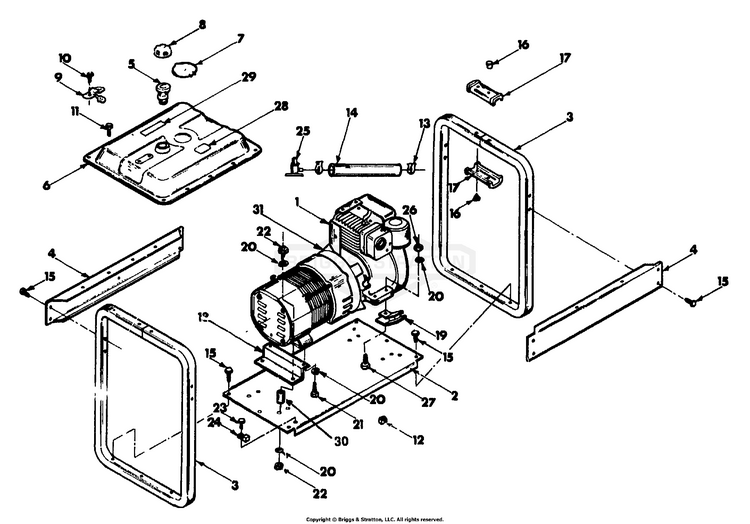

Mounting Base

...
...
1
(C) SUPPORT REAR MUF BS-7074785YP
...
2
BASE, Mounting BS-70643
...
3
LOOP, Cradle End BS-70603
...
4A
SUPPORT, Fuel Tank- LH BS-70636
...
4B
SUPPORT, Fuel Tank- RH BS-70636A
...
5
STRAINER, Fuel Fill BS-70630
...
6
HARNESS, Ignition Wiring (Briggs Engines) BS-7073715YP
...
7
CVR, ACC, SPARKPLUG BS-64680BGS
...
8
CAP, Fuel Tank BS-69658
...
9
GAUGE, Fuel Level BS-66391B
...
10
SCREW - M5-0.80 x 12mm BS-52749
...
11
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
12
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
13
CLAMP, Hose - 1/4" ID BS-48031C
...
14
HOSE, Fuel - 1/4" ID x 12" BS-47662AE
...
15
SCREW BS-58443GS
...
16
RIVET - 4mm BS-66831
...
17
HANDLE - Plastic BS-66450
...
18
SUPPORT - Generator BS-73078
...
19
MOUNT, Vibration 45°. BS-70642GS
...
20
WASHER, Lock BS-22129GS
...
21
CAPSCREW M8-1.25X16 BS-703988
...
22
MODULE BS-84009650
...
23
SCREW (Taptite) No. 10-32 x 3/8" BS-24489
...
24
LUG, Grounding BS-25433
...
25
VLV, SHUT OFF BS-27734GS
...
26
NUT, 5/16-18 HEX BS-5025032SM
...
27
PPHMS, 5/16-18 X 1.50 BS-70653GS
...
28
DECAL- Caution! BS-70687
...
29
DECAL- Warning! (California) BS-72079
...
30
MOUNT, Vibration BS-44624
...
31
SPACER, Engine BS-68342

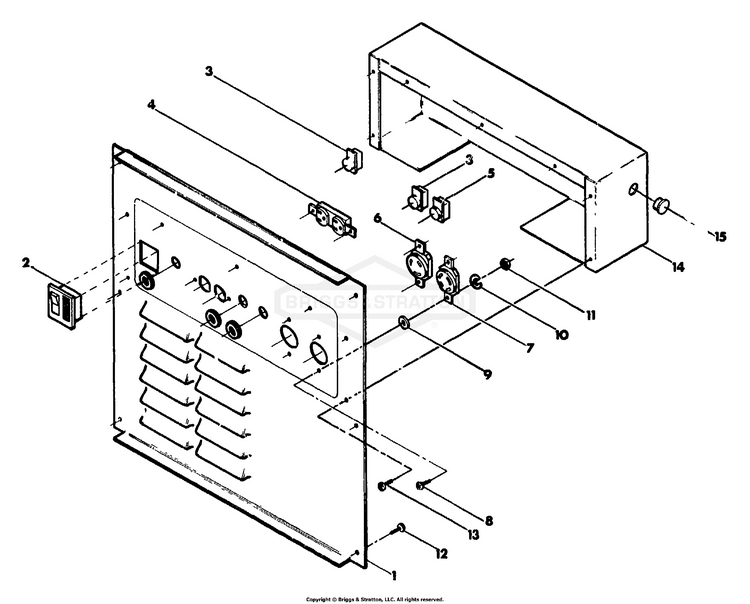

Receptacle Panel

...
...
1
PANEL, Receptacle BS-68866L
...
2
SWITCH, ENG, CTRL, ILUM BS-66817GS
...
3
BREAKER-CIRCUIT 20A BS-209872GS
...
4
OUTLET, 20A,120V BS-68759GS
...
5
BREAKER-CIRCUIT 30A BS-706178
...
6
OUTLET-120V TL30A BS-705932
...
7
OUTLET, 120/240V Locking, 20A BS-68867GS
...
8
SCREW BS-797483
...
9
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
10
LOCKWASHER - No. 8 BS-22264
...
11
NUT, #8-32 BS-22471GS
...
12
SCREW (Crimptite) 1/4"- 20 x 1/2" BS-69254
...
13
CRIMPTITE, #8-18X1/4L BS-63036GS
...
14
PANEL, Back BS-68746A
...
15
PLUG BUTTON - 1/2" BS-65511
...
PLUG, 125V 30A 3-Prong BS-100523GS
...
PLUG-120/240V TL20A BS-100522GS

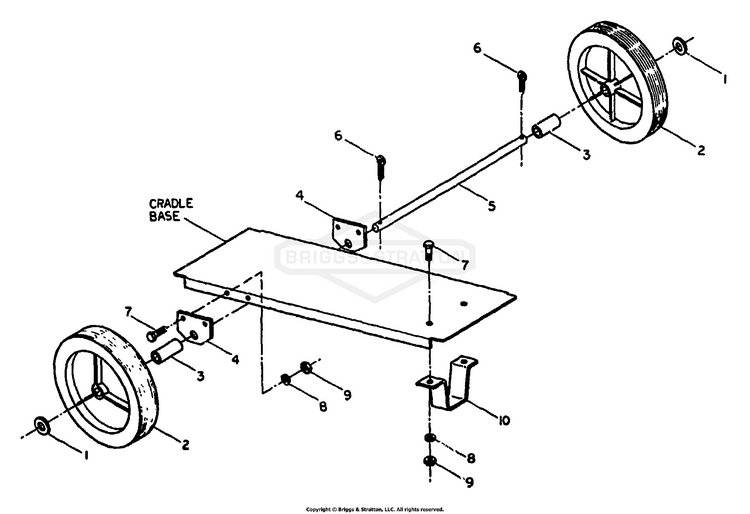

Wheel Kit

...
...
1
Washer, Flat 1/2 BS-22304GS
...
2
WHEEL- 10" Diameter BS-52597
...
3
SPACER, Wheel- 1" long BS-39712B
...
4
BRACKET, Axle BS-67212
...
5
AXLE- 1/2" x 19.25" long BS-60564C
...
6
PIN, COTTER, 3/32-1 BS-22268GS
...
7
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
8
CAP BS-5022097SM
...
9
NUT, Hex - 1/4"-20 BS-22127
...
10
LEG, Support BS-68885

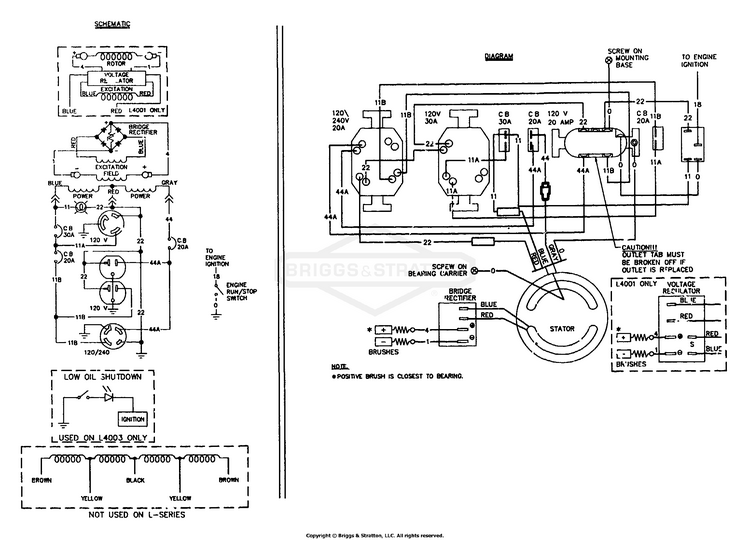

Wiring Diagram & Schematic

...
