8992-0 Briggs and Stratton Portable Generator L7500E, 7,500 Watt

Model: 8992-0

Back To Assemblies

Save Part Not Listed?
product name

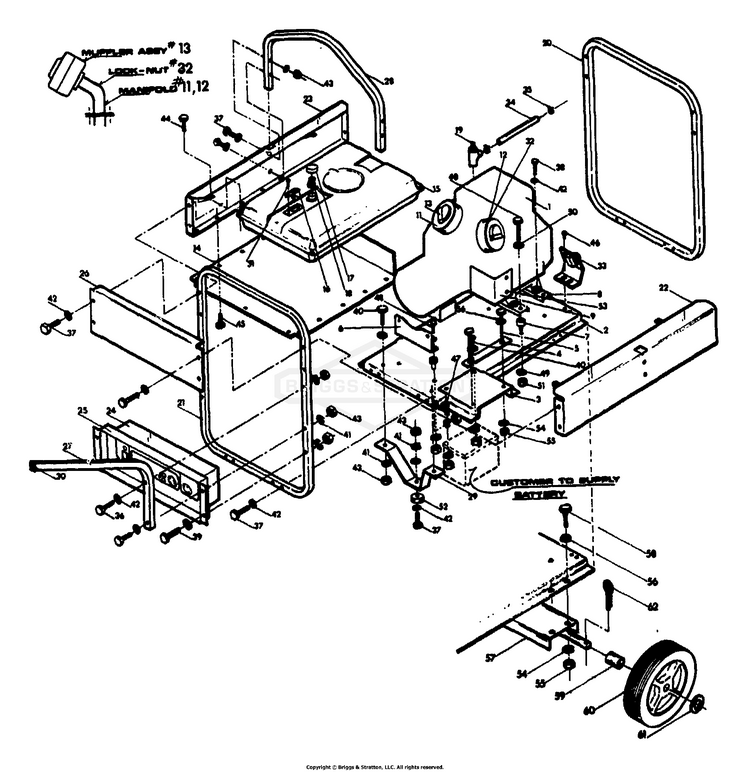

Mounting Base

...
...
1
ENGINE- Briggs & Stratton 18 HP BS-70784
...
2
CRADLE, Mounting Base BS-70702
...
3
TRAY, Battery BS-69528
...
4
CONTROL, Hydro, Right BS-5044951B
...
5
HHCS, 1/4-20 X 7 BS-45000GS
...
7
MOUNTS,Vibration BS-38353GS
...
8
BAR, Spreader- Engine Mounting BS-71793
...
9
SHROUD, Engine BS-71792
...
11
ADAPTER, Muffler BS-71864
...
12
ADAPTER, Muffler BS-71865
...
13
MUFFLER BS-56162
...
14
BAFFLE, Fuel Tank BS-71867
...
15
TANK, Fuel BS-69662
...
16
GAUGE, Fuel Level BS-68391B
...
17
CAP, Fuel BS-69658
...
18
STRAINER, Fuel Inlet BS-70630
...
19
VLV, SHUT OFF BS-27734GS
...
20
CRADLE, End Loop BS-70703
...
21
CRADLE, End Loop BS-70704
...
22
SUPPORT, Fuel Tank- RH BS-70706
...
23
SUPPORT, Fuel Tank- LH BS-70706A
...
24
BACK, Panel BS-71871
...
25
PANEL, Receptacle and Control BS-71374
...
27
HANDLE, Transport BS-69628
...
28
EYE, Lifting BS-70708
...
29
LEG, Mounting BS-45131
...
30
CAP PLUG, Tubing BS-46476GS
...
31
SCREW- M5-0.80 x 12mm BS-52749
...
32
NUT, PIPE, 1 IN, LOCK BS-26772GS
...
33
CONTRACTOR, Starter BS-69531
...
34
HOSE, Fuel- 1/4" ID BS-30340
...
35
CLAMP, Hose BS-48031C
...
36
CAPSCREW, Hex Head- 5/16"-18 x 2-1/2" BS-22532
...
37
BOLT, 5/16-18 X 1-3/4 BS-5025011X14SM
...
38
CAPSCREW, Hex Head- 5/16"-16 x 1-1/4" BS-22128
...
39
HHCS, 5/16-18 X 1-1/2 BS-22283GS
...
40
CAPSCREW, Hex Head- 6/16"-18 x 1" BS-22125
...
41
WASHER, Lock BS-22129GS
...
43
NUT, Flanged Lock- 5/16"-18 BS-69673J
...
44
SCREW, Pan Head Machine- No. 10-32 x 1/2" BS-33590
...
45
SCREW (Crimptite)- 1/4"-20 x 5/8" BS-56443
...
46
SCREW (Crimptite)- 1/4"20 x 1/2" BS-58442
...
47
DECAL, Danger, Rotating BS-5022143
...
48
BELT, BP-SEC, 156.906EL, ARAMID, WRPD BS-5022435YP
...
49
LOCKWASHER, SPLIT 3/8 BS-703454
...
50
WASHER, FLAT .406X.81 BS-71072MA
...
51
DECAL, ProCut Z Text BS-5022241
...
52
VIBE MOUNT, with Washer BS-191413GS
...
53
SCREW, Self Tapping- No. 6-32 x 3/8" BS-64528
...
54
CAP BS-5022097SM
...
55
NUT, Hex - 1/4"-20 BS-22127
...
57
AXLE ASSEMBLY BS-69526
...
58
CAPSCREW- 1/4"-20 x 1-1/4" BS-52107
...
59
SPACER, Axis BS-45193B
...
60
KIT, DISCHARGE CHUTE BS-7600147YP
...
61
WASHER, Flat- 3/4" BS-45900
...
62
PIN, COTTER, 3/32-1 BS-22268GS
