8983-3 Briggs and Stratton Portable Generator S5002, 5,000 Watt

Model: 8983-3

Save Part Not Listed?
product name

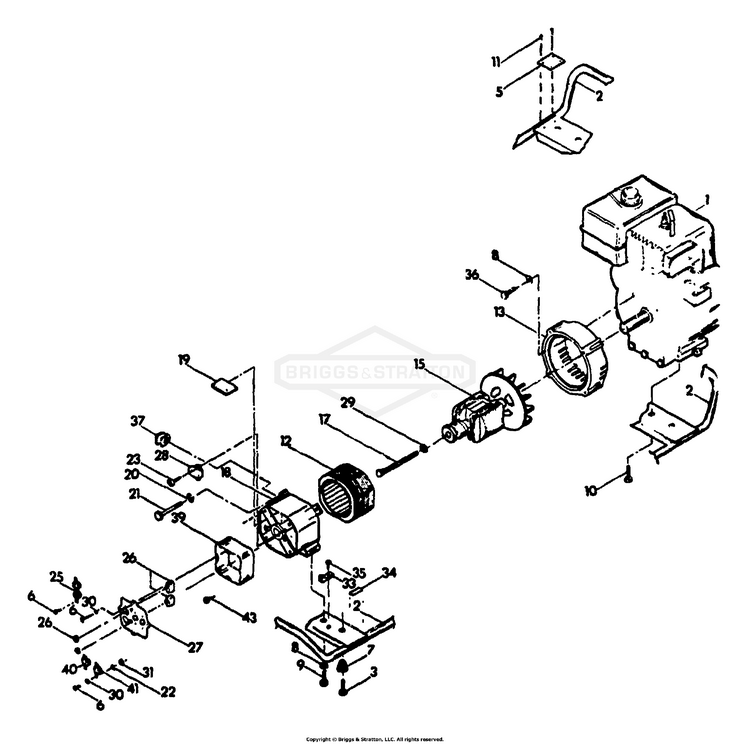

Generator

...
...
1
ENGINE-Tecumseh HM100 BS-71389
...
2
CRADLE ASSY BS-72097
...
3
SCREW (Taptite)-5/16"-18 x 1/2" BS-24910
...
5
RETAINER BS-690265
...
6
SCREW BS-797483
...
7
MOUNT, Vibration BS-23594
...
8
WASHER, Lock BS-22129GS
...
9
CAPSCREW M8-1.25X16 BS-703988
...
10
SCREW (Taptite)- 3/8"-16 x 3/4" BS-59837
...
11
RIVET- Stainless Steel BS-36261
...
12
(C) HUB KIT BDP10A PU BS-7074738YP
...
13
ADPTR, HSNG, 8 HP BS-66365DGS
...
15
ROTOR ASSY BS-73056
...
17
BOLT, Rotor- 5/16"-24 x 8" BS-46858
...
18
CARRIER, Rear Bearing BS-66825
...
19
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
20
CAP BS-5022097SM
...
21
BOLT, Stator- M6-1.00 x 140mm BS-66449F
...
22
LOCKWASHER-No.8 BS-22264
...
23
HHCS, M5-0.8 X 16 BS-49815GS
...
24
(C)BELT SET OF 2 DE BS-7072293YP
...
25
RECEPTACLE- 120 volts a-c BS-69759
...
26
BREAKER, Circuit - 20 amp BS-68819
...
27
WELD UPPER SHIFTER BS-7058295YP
...
28
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
29
FLATWASHER (Special) BS-67451
...
30
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
31
NUT, #8-32 BS-22471GS
...
33
LUG, Grounding BS-25433
...
34
DECAL, GRD LUG BS-67210AGS
...
35
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
36
SCREW, Hex - 5/16"-24 x 3/4" BS-22336
...
37
GROMMET, RUBBER BS-67022GS
...
39
BRKT, TRACTION CABLE BS-7072280YP
...
40
OUTLET-120V TL30A BS-705932
...
41
RECEPTACLE - 120/240 volts, 20 amp BS-68887
...
43
SCREW, Pan Head- M5-0.80 BS-73540
...
PLUG, 125V 30A 3-Prong BS-100523GS
...
PLUG-120/240V TL20A BS-100522GS

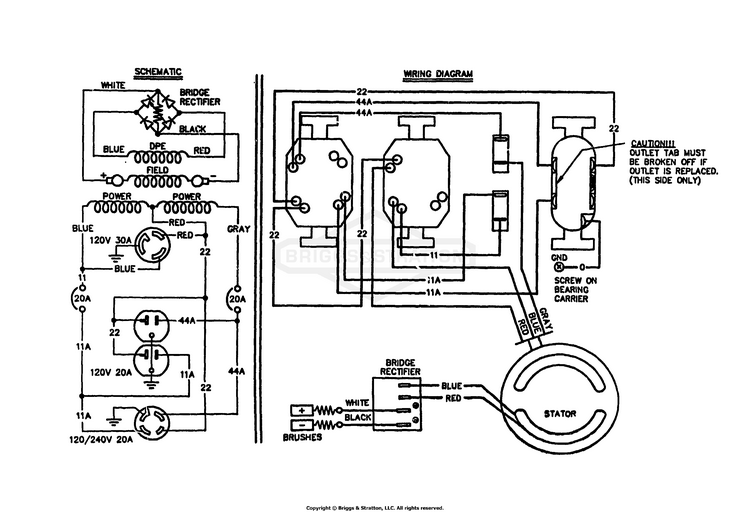

Wiring Diagram & Schematic

...

No Parts Available for this Schematic
