8973-3 Briggs and Stratton Portable Generator S4002, 4,000 Watt

Model: 8973-3

Save Part Not Listed?
product name

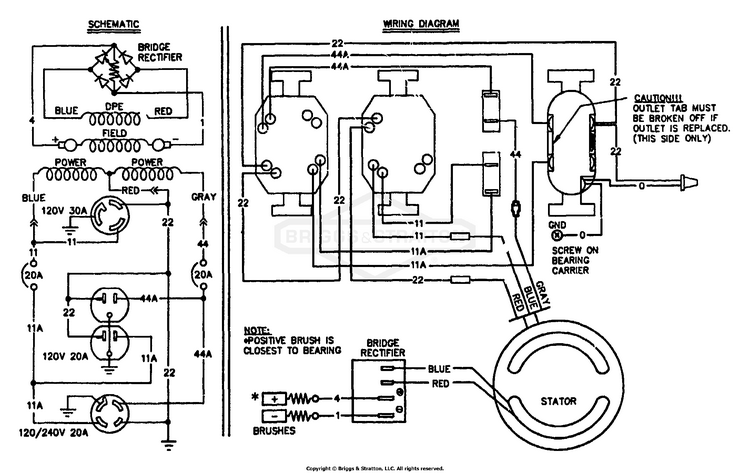

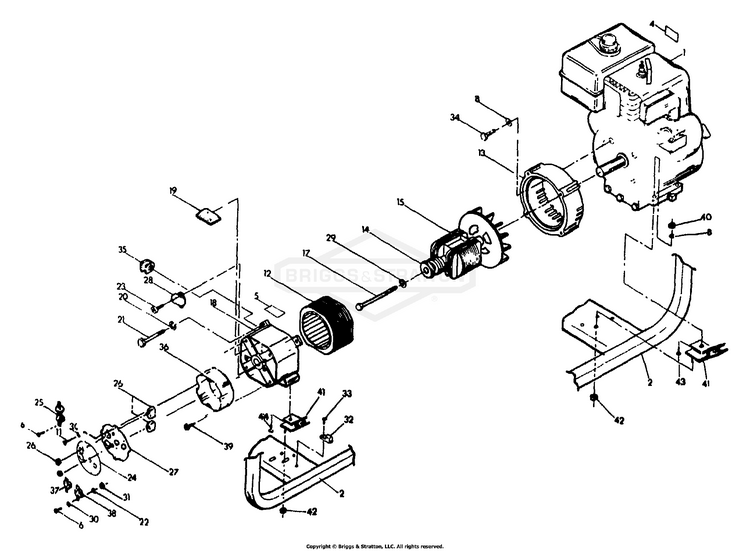

Electrical Schematic & Wiring Diagram

...

No Parts Available for this Schematic

Generator

...
...
1
ENGINE-TECUMSEH HM80 BS-69649
...
2
CRADLE ASSEMBLY BS-75987
...
5
DECAL-WARNING BS-72079
...
4
DECAL BS-39178
...
6
SCREW BS-797483
...
8
WASHER, Lock BS-22129GS
...
11
SCREW, PAN HD.-NO. 10-32 x 1/4" BS-33528
...
12
STATOR ASSEMBLY BS-74709
...
13
HOUSING, ENGINE ADAPTOR BS-66765D
...
14
BEARING BS-65791GS
...
15
ROTOR ASSEMBLY BS-74716
...
17
BOLT, ROTOR-5/16"-24 x 8.25 BS-73067
...
18
CARRIER, REAR BEARING BS-66825
...
19
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
20
CAP BS-5022097SM
...
21
BOLT, STATOR-M6-1.00 x 130MM BS-66449D
...
22
LOCKWASHER-M8 BS-22264
...
23
HHCS, M5-0.8 X 16 BS-49815GS
...
24
SHAFT, Hex (3/8-24 thread, one end) BS-7072284YP
...
25
OUTLET, 20A,120V BS-68759GS
...
26
BREAKER, CIRCUIT-20 AMP BS-66819
...
27
WELD UPPER SHIFTER BS-7058295YP
...
28
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
29
FLAT WASHER-(SPECIAL) BS-67451
...
30
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
31
NUT, #8-32 BS-22471GS
...
32
LUG, GROUNDING BS-25433
...
33
SCREW, (TAPTITE)-NO. 10-24 x 1/2" BS-24489
...
34
SCREW, HEX HEAD-5/16"-24 x 3/4" BS-22336
...
35
GROMMET, RUBBER BS-67022GS
...
36
BRKT, TRACTION CABLE BS-7072280YP
...
37
OUTLET-120V TL30A BS-705932
...
38
OUTLET, 120/240V Locking, 20A BS-68867GS
...
39
SCREW, PAN HD.-M6-0.80 x 25MM BS-73540
...
40
SKID PLATE BS-5045771B
...
41
MOUNT, Vibration 45°. BS-70642GS
...
42
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
43
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
44
SCREW BS-70644GS
