8973-1 Briggs and Stratton Portable Generator S4002, 4,000 Watt

Model: 8973-1

Save
 Part Not Listed?Part Not Listed?
product name

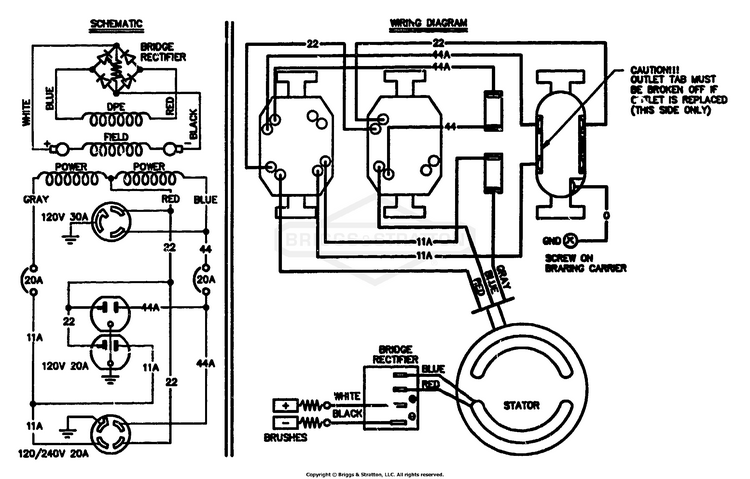

Electrical Schematic & Wiring Diagram

...

No Parts Available for this Schematic

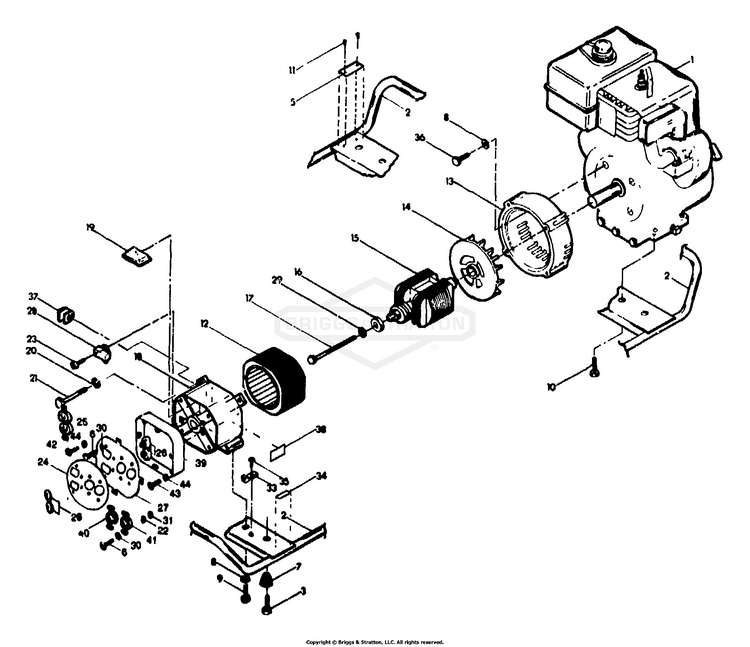

Generator

...
...
1
ENGINE- Tecumseh HM-80 BS-69649
...
2
CRADLE ASSY BS-72097
...
3
SCREW (Taptite)- 5/16"-18 x 1/2" BS-24910
...
5
PLATE- Serial BS-67430J
...
6
SCREW BS-797483
...
7
MOUNT, Vibration BS-23594
...
8
WASHER, Lock BS-22129GS
...
9
HHCS, M8 x 20 BS-39253GS
...
10
SCREW (Taptite)- 3/8"-16 x 3/4" BS-59637
...
11
RIVET- Stainless Steel BS-36261
...
12
ASSY, STATOR, S4002 BS-70422GS
...
13
ADPTR, HSNG, 8 HP BS-66365DGS
...
14
FAN, Cooling BS-66389
...
15
ROTOR ASSY BS-72067
...
16
BEARING BS-65791GS
...
17
BOLT, Rotor- 5/16"-24 x 8" BS-46958
...
18
CARRIER, Rear Bearing BS-66825
...
19
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
20
CAP BS-5022097SM
...
21
BOLT, Stator- M6-1.00 x 140mm BS-66449F
...
22
LOCKWASHER-M8 BS-22264
...
23
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
24
SHAFT, Hex (3/8-24 thread, one end) BS-7072284YP
...
25
RECEPTACLE- 120 volts a-c BS-69759
...
26
BREAKER, Circuit- 20 amp BS-66819
...
27
WELD UPPER SHIFTER BS-7058295YP
...
28
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
29
FLATWASHER (Special) BS-67451
...
30
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
31
NUT, #8-32 BS-22471GS
...
33
LUG, Grounding BS-25433
...
34
DECAL, GRD LUG BS-67210AGS
...
35
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
36
SCREW, Hex Head- 5/16"-24 x 3/4" BS-22336
...
37
GROMMET, RUBBER BS-67022GS
...
38
BAFFLE LH BS-7072296YP
...
39
BRKT, TRACTION CABLE BS-7072280YP
...
40
OUTLET-120V TL30A BS-705932
...
41
OUTLET, 120/240V Locking, 20A BS-68867GS
...
42
SCREW, Pan Head- No. 10-32 x 1/4" BS-33528
...
43
SCREW, Pan Head- M5-0.80 x 1" BS-73540
...
44
VALVE, FUEL SHUT OFF BS-84010414
...
MANUAL, Instructions and Parts BS-74136
...
PLUG, 125V 30A 3-Prong BS-100523GS
...
PLUG-120/240V TL20A BS-100522GS
...
...
...
