8972-0 Briggs and Stratton Portable Generator S4001, 4,000 Watt

Model: 8972-0

Save Part Not Listed?
product name

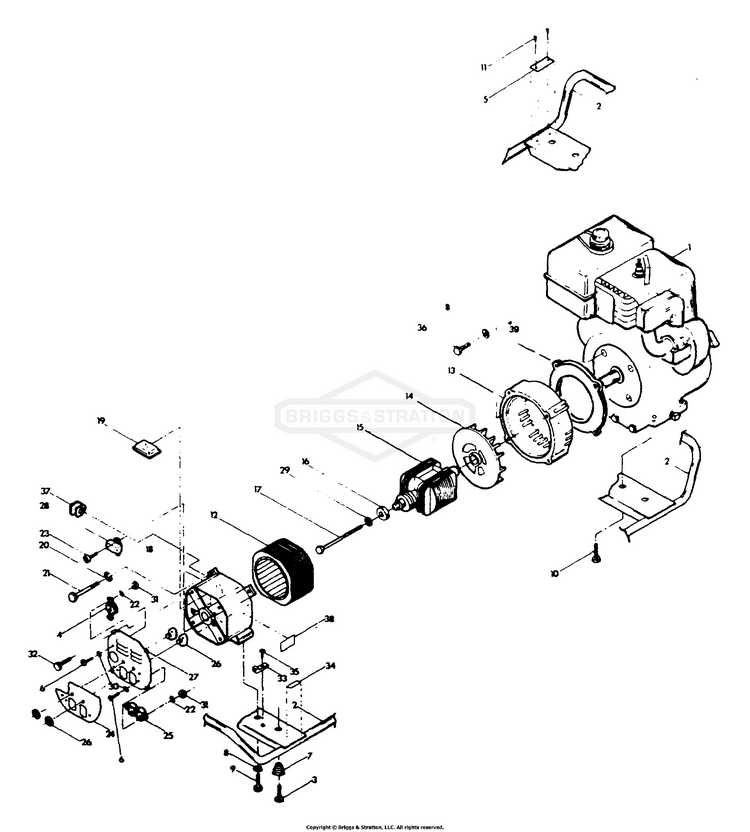

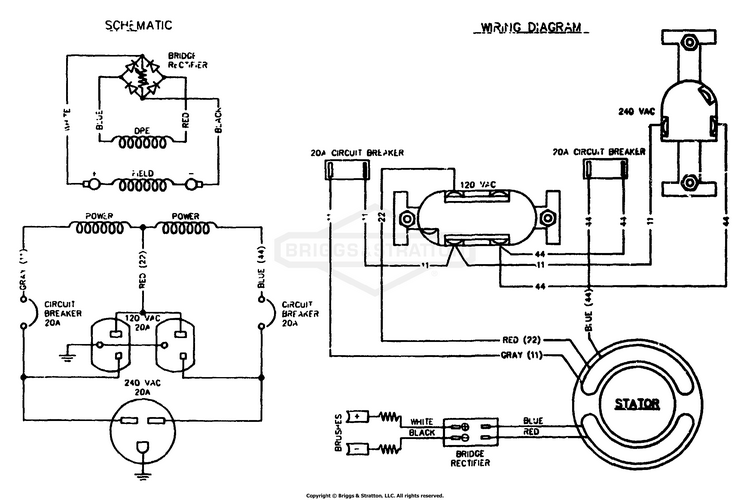

Electrical Schematic/Wiring Diagram

...

No Parts Available for this Schematic

Generator

...
...
1
ENGINE-Briggs & Stratton 8 HP BS-68701
...
2
CRADLE BS-72095
...
3
SCREW (Taptite)-5/16"-18 x 1/2" BS-24910
...
4
RECEPTACLE-240 volts, 20 amp BS-68735
...
5
PLATE, Serial BS-67430I
...
6
SCREW BS-797483
...
7
MOUNT, Vibration BS-23594
...
8
WASHER, Lock BS-22129GS
...
9
CAPSCREW M8-1.25X16 BS-703988
...
10
SCREW (Taptite)-3/8"-16 x 3/4" BS-59637
...
11
RIVET- Stainless Steel BS-36261
...
12
STATOR BS-70421
...
13
ADPTR, HSNG, 8 HP BS-66365DGS
...
14
FAN, Generator Cooling BS-66389
...
15
ROTOR BS-72066
...
16
BEARING BS-65791GS
...
17
BOLT, Rotor-5/16"-24 x 8.25" BS-73067
...
18
CARRIER, Rear Bearing BS-66825
...
19
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
20
CAP BS-5022097SM
...
21
BOLT, Stator-M6-1.00 x 130mm BS-66449D
...
22
WASHER, Lock-No. 8 BS-22264
...
23
HHCS, M5-0.8 X 16 BS-49815GS
...
24
DECAL-Receptacle Panel BS-72278
...
25
RECEPTACLE-120 volts a-c BS-69759
...
26
BREAKER, Circuit-20 amp BS-66819
...
27
PANEL, Receptacle BS-72098
...
28
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
29
WASHER, Flat-Special BS-67451
...
30
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
31
NUT, #8-32 BS-22471GS
...
32
TAPTITE, M5-0.8 X 8 BS-66849BGS
...
33
LUG, Grounding BS-25433
...
34
DECAL, GRD LUG BS-67210AGS
...
35
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
37
GROMMET, RUBBER BS-67022GS
...
38
BAFFLE LH BS-7072296YP
...
39
SPACER, Engine BS-68342
...
MANUAL-OPERATOR BS-73072AGS
