8971-2 Briggs and Stratton Portable Generator S4000, 4,000 Watt

Model: 8971-2

Save Part Not Listed?
product name

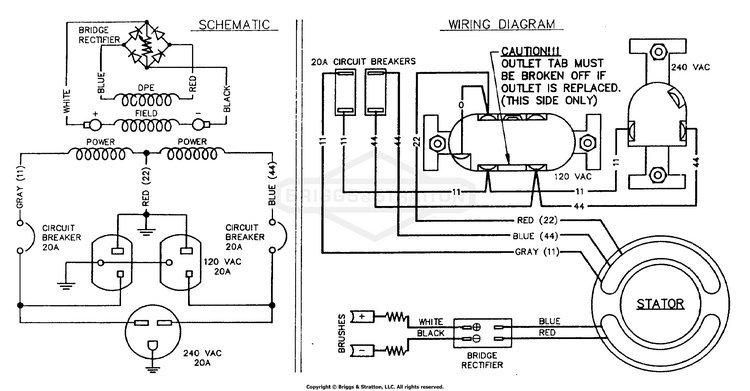

Electrical Schematic & Wiring Diagram (10/95)

...

No Parts Available for this Schematic

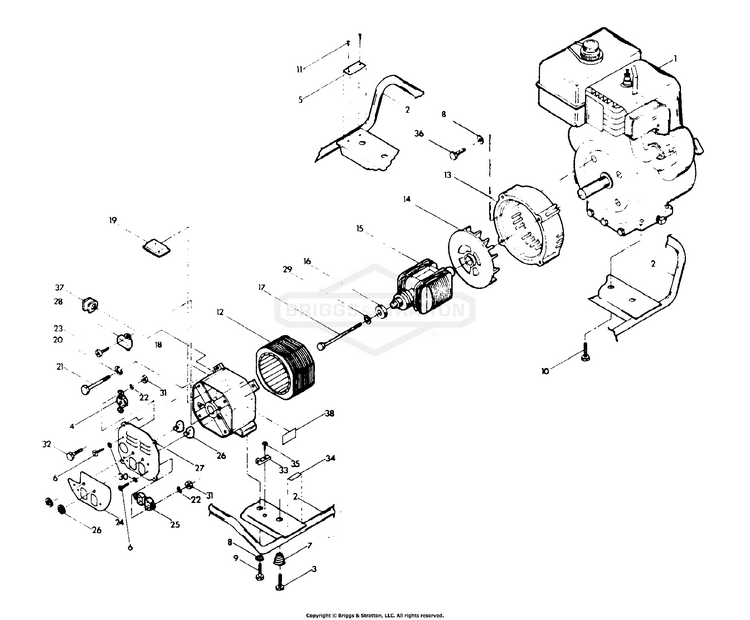

Generator And Stator Assembly (10/95)

...
...
1
ENGINE - Tecumseh HM80 BS-69649
...
2
CRADLE BS-72291
...
3
SCREW (Taptite) - 5/16" - 18 x 1/2" BS-24910
...
4
RECEPTACLE - 240 volts, 20 amp BS-68735
...
5
PLATE, Serial BS-67430H
...
6
SCREW BS-797483
...
7
MOUNT, Vibration BS-23594
...
8
WASHER, Lock BS-22129GS
...
9
CAPSCREW M8-1.25X16 BS-703988
...
10
SCREW (Taptite) - 3/8" - 16 x 3/4" BS-59637
...
11
RIVET - Stainless Steel BS-36261
...
12
STATOR BS-70421
...
13
ADPTR, HSNG, 8 HP BS-66365DGS
...
14
FAN, Cooling BS-66389
...
15
ROTOR BS-72066
...
16
BEARING BS-65791GS
...
17
HHCS, 5/16-24 X 8 BS-73071GS
...
18
CARRIER, Rear Bearing BS-66825
...
19
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
20
CAP BS-5022097SM
...
21
BOLT, Stator - M6-1.00 x 130mm BS-66449D
...
22
WASHER, Lock - No. 8 BS-22264
...
23
HHCS, M5-0.8 X 16 BS-49815GS
...
24
DECAL - Receptacle Panel BS-72288
...
25
RECEPTACLE - 120 volts a-c BS-69759
...
26
BREAKER, Circuit - 20 amp BS-66819
...
27
PANEL, Receptacle BS-72098
...
28
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
29
WASHER, Flat (Special) BS-67451
...
30
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
31
NUT, #8-32 BS-22471GS
...
32
TAPTITE, M5-0.8 X 8 BS-66849BGS
...
33
LUG, Grounding BS-25433
...
34
DECAL, GRD LUG BS-67210AGS
...
35
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
36
SCREW, Hex Head - 5/16" - 24 x 3/4" BS-22336
...
37
GROMMET, RUBBER BS-67022GS
...
38
DECAL - Data BS-72296B
...
MANUAL, Owner's Not Shown BS-73072
