8970-3 Briggs and Stratton Portable Generator S2400, 2,400 Watt

Model: 8970-3

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

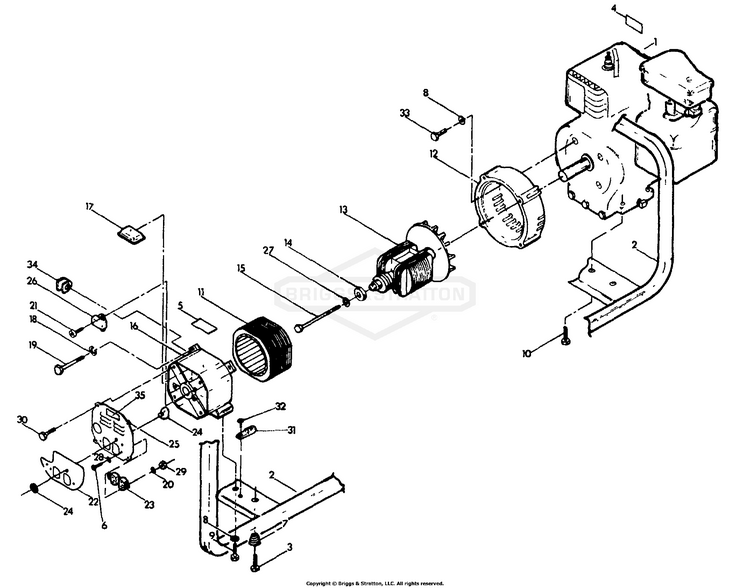

S2400 Generator Model No. 8970-3

...
...
1
BEARING, STRAIGHT BS-7076515YP
...
2
CRADLE ASSEMBLY BS-75967
...
3
SCREW (TAPTITE)-5/16"-18 x 1/2" BS-24910
...
4
DECAL-CAUTION BS-39178
...
5
DECAL-WARNING BS-72079
...
6
SCREW BS-797483
...
7
MOUNT, VIBRATION BS-23594
...
8
WASHER, Lock BS-22129GS
...
9
CAPSCREW M8-1.25X16 BS-703988
...
10
SCREW, (TAPTITE)-3/8"-16 x 3/4" BS-59637
...
11
BEARING, TAPERED ROLL BS-5020884SM
...
12
HSNG, ENG, FML BS-66365FGS
...
13
ROTOR ASSEMBLY BS-74713
...
14
BEARING BS-65791GS
...
15
BOLT, ROTOR-5/16"-24 x 6.25 BS-24420
...
16
CARRIER, REAR BEARING BS-66825
...
17
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
18
CAP BS-5022097SM
...
19
BOLT, STATOR M6-1.00 x 80MM BS-66449C
...
20
LOCK WASHER-NO.8 BS-22264
...
21
HHCS, M5-0.8 X 16 BS-49815GS
...
22
DECAL RECEPTACLE PANEL BS-72277
...
23
OUTLET, 20A,120V BS-68759GS
...
24
BREAKER, CIRCUIT-20AMP BS-66819
...
25
(C) WELD SEAT SUPPOR BS-7072092YP
...
26
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
27
FLAT WASHER-(SPECIAL) BS-67451
...
28
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
29
NUT, #8-32 BS-22471GS
...
30
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
31
LUG, GROUNDING BS-25433
...
32
SCREW, (TAPTITE)-NO. 10-24 x 1/2" BS-24489
...
33
SCREW, HEX HD.-5/16"-24 x 3/4" BS-22336
...
34
GROMMET, RUBBER BS-67022GS
...
35
DECAL, Neutral Ground BS-74728GS
