8970-0 Briggs and Stratton Portable Generator S2400, 2,250 Watt

Model: 8970-0

Save Part Not Listed?
product name

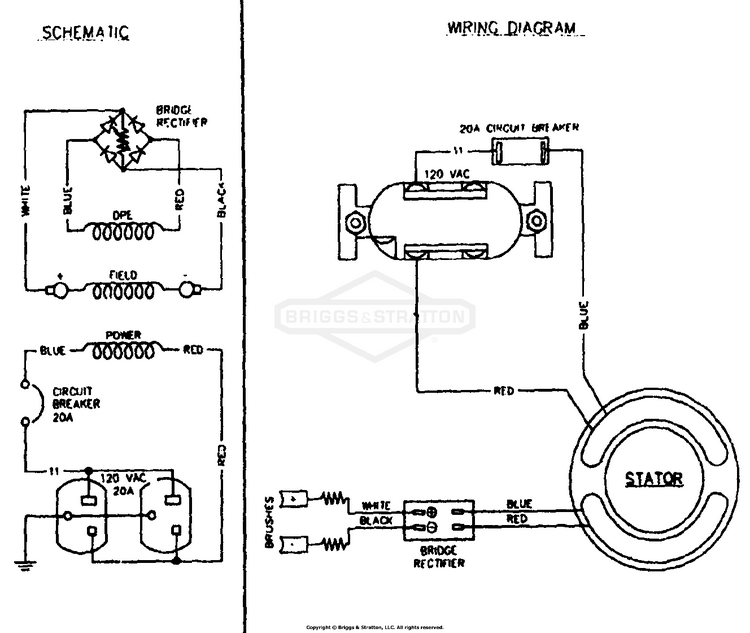

Electrical Schematic/Wiring Diagram No. 72294

...

No Parts Available for this Schematic

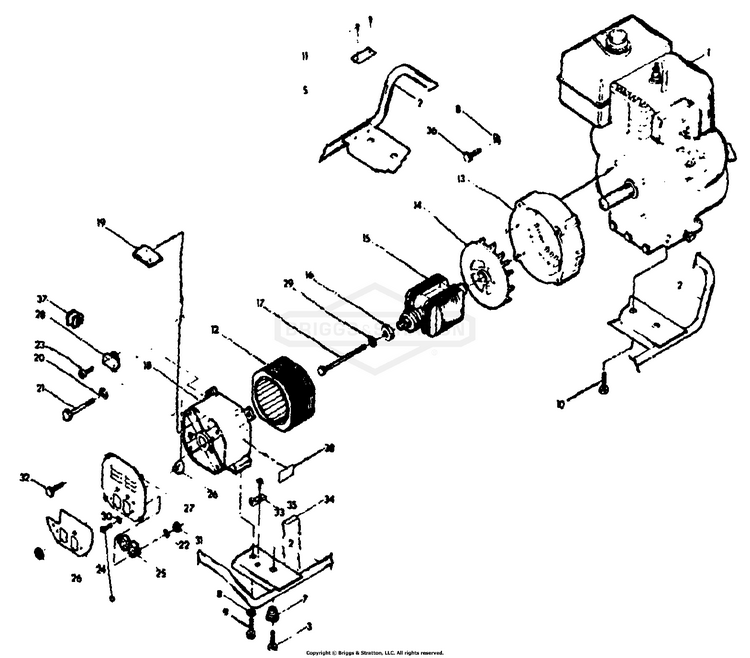

S2400 Generator No. 71382

...
...
1
ENGINE - Briggs & Stratton Model 190232-5205-01 BS-68770
...
2
(C) BRKT SEAT BS-7072090YP
...
3
SCREW (Taptite) - 5/16"-18 x 1/2" BS-24910
...
5
PLATE, Serial BS-67430G
...
6
SCREW BS-797483
...
7
MOUNT, Vibration BS-23594
...
8
WASHER, Lock BS-22129GS
...
9
CAPSCREW M8-1.25X16 BS-703988
...
10
SCREW (Taptite) - 3/8"-16 x 3/4" BS-59637
...
11
RIVET (Stainless Steel) BS-36261
...
12
STATOR BS-70420
...
13
HSNG, ENG, FML BS-66365FGS
...
14
FAN, Cooling BS-66389
...
15
ROTOR BS-72064
...
16
BEARING BS-65791GS
...
17
HHCS, 5/16-24 X 6 3/8 BS-36180GS
...
18
CARRIER, Rear Bearing BS-66825
...
19
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
20
CAP BS-5022097SM
...
21
BOLT, Stator - M8-1.00 x 90mm BS-66449B
...
22
WASHER, Lock - No. 8 BS-22264
...
23
HHCS, M5-0.8 X 16 BS-49815GS
...
24
DECAL - Receptacle Panel BS-72277
...
25
RECEPTACLE - 120 volts, 20 amp BS-69759
...
26
BREAKER, Circuit - 20 amp BS-66819
...
27
(C) WELD SEAT SUPPOR BS-7072092YP
...
28
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
29
WASHER, Flat (Special) BS-67451
...
30
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
31
NUT, #8-32 BS-22471GS
...
32
TAPTITE, M5-0.8 X 8 BS-66849BGS
...
33
LUG, Grounding BS-25433
...
34
DECAL, GRD LUG BS-67210AGS
...
35
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
36
SCREW, Hex Head - 5/16"-24 x 3/4" BS-22336
...
37
GROMMET, RUBBER BS-67022GS
...
38
BAFFLE LH BS-7072296YP
...
MANUAL, Owner's BS-71383
