product name

8969-2 Briggs and Stratton Portable Generator A4000, 3,600 Watt

Model: 8969-2

Back To Assemblies

Save Part Not Listed?
product name

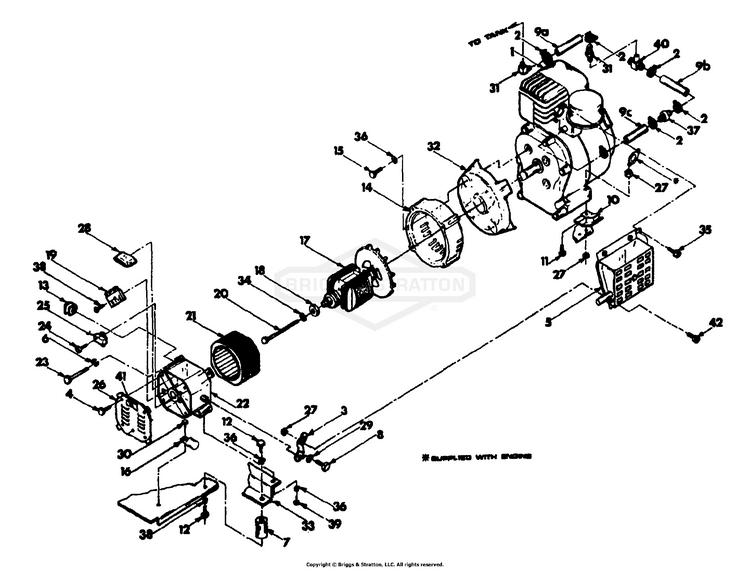

Generator No. 75453

...
...
1
ENGINE-8 HP Briggs & Stratton BS-71392
...
2
CLAMP, Fuel Line BS-48031C
...
3
BRACKET, Exhaust Muffler Support BS-75456
...
4
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
5
MUFFLER, Exhaust-Spark Arrestor Type BS-72279
...
6
CAP BS-5022097SM
...
7
MOUNT, Vibration BS-44624
...
8
CAPSCREW, Hex Head-M10-1.50 x 16mm BS-51755
...
9A
HOSE, Fuel-20" long BS-47662F
...
9B
HOSE, Fuel-17" long BS-47662AN
...
9C
HOSE, Fuel-3" long BS-47662B
...
10
MOUNT, Vibration 45°. BS-70642GS
...
11
HHCS, M8 - 1.25 x 35 BS-39414GS
...
12
MODULE BS-84009650
...
13
GROMMET, RUBBER BS-67022GS
...
14
ADPTR, HSNG, 8 HP BS-66365DGS
...
15
CAPSCREW, Hex Head-5/16"-18 x 2-1/2" BS-23541
...
16
LUG, Ground BS-25433
...
17
ROTOR ASSY BS-74714
...
18
BEARING BS-65791GS
...
19
RECTIFIER, BATTERY CHARGE BS-65795GS
...
20
CAPSCREW, Hex Head BS-75431GS
...
21
BEARING CUP BS-5020883SM
...
22
CARRIER, Rear Bearing BS-66825
...
23
BOLT, Stator BS-66449D
...
24
HHCS, M5-0.8 X 16 BS-49815GS
...
25
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
26
COVER, Bearing Carrier BS-67025
...
27
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
28
REGULATOR, VOLT BS-67107GS
...
29
LOCKWASHER-M10 BS-46526
...
30
SCREW (Taptite)-No. 10 x 3/8" BS-24489
...
31
ELBOW-1/8" NPT x 1/4" Barbed BS-28740
...
32
SPACER, Engine BS-68342
...
33
SUPPORT, Generator BS-73078
...
34
FLATWASHER (Special)-M8 BS-67451
...
35
CAPSCREW, Socket Head-1/4"-20 x 1/2" BS-39974
...
36
WASHER, Lock BS-22129GS
...
37
FILTER, FUEL, 150 MICRN BS-68740GS
...
38
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
39
SCREW BS-70644GS
...
40
VALVE, Fuel Shutoff BS-71384
...
41
DECAL, Neutral Ground BS-74728GS
...
42
HHCS, M8 - 1.25 x 12 BS-51754GS
